BATTERY & BATTERY CABLE

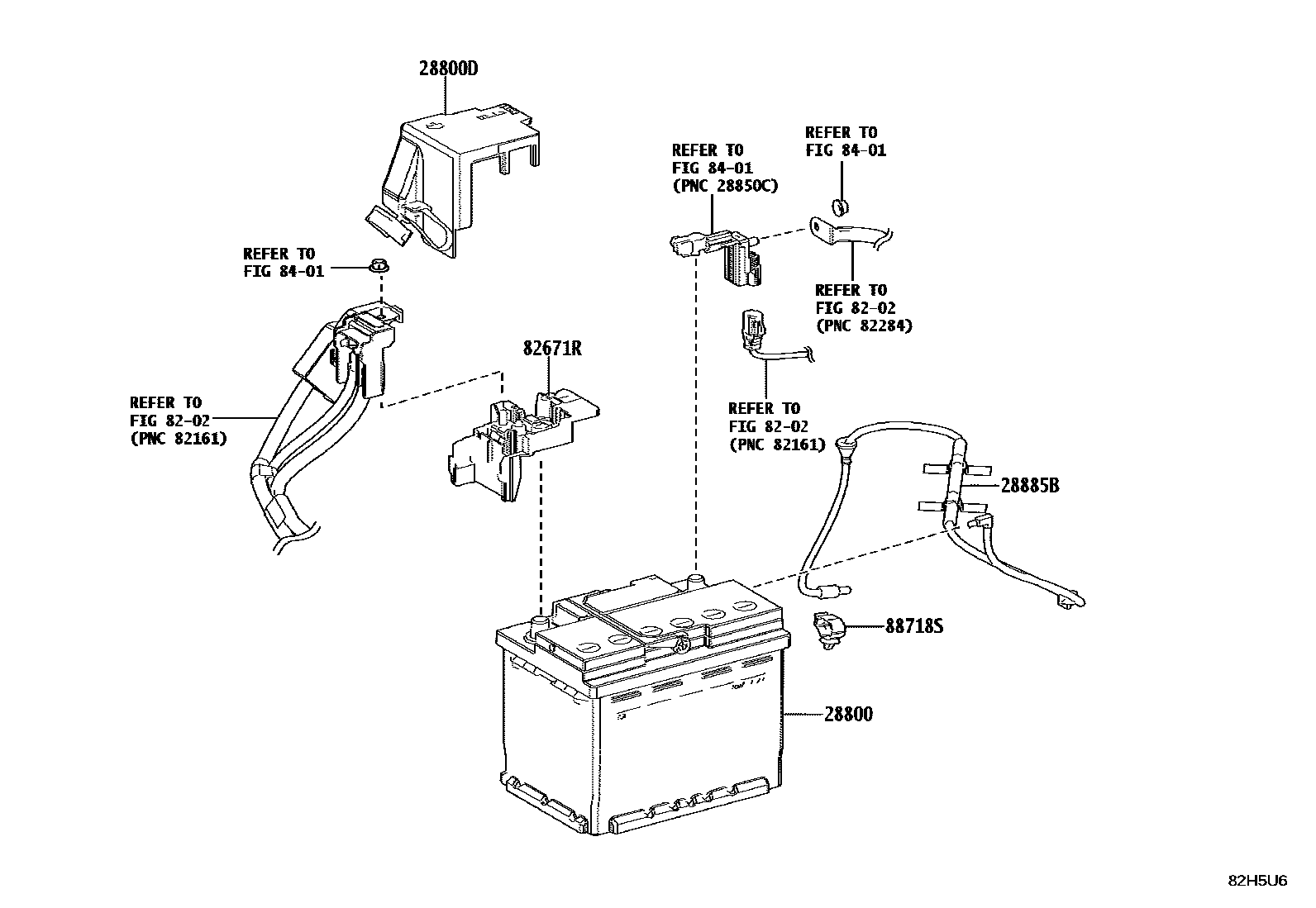

Parts diagram

28800BATTERY

main28800-31573i202408

LN2

28800DCOVER, CONNECTOR(FOR BATTERY TERMINAL)

main82821-50730i202408

28885BHOSE, BATTERY

main28885-18090i202408

82671RSTOPPER, BATTERY TERMINAL

main82651-50010i202408

88718SCLAMP, PIPING NO.1

main82711-1E350i202408

5 parts on this diagram · 1 diagram in section
