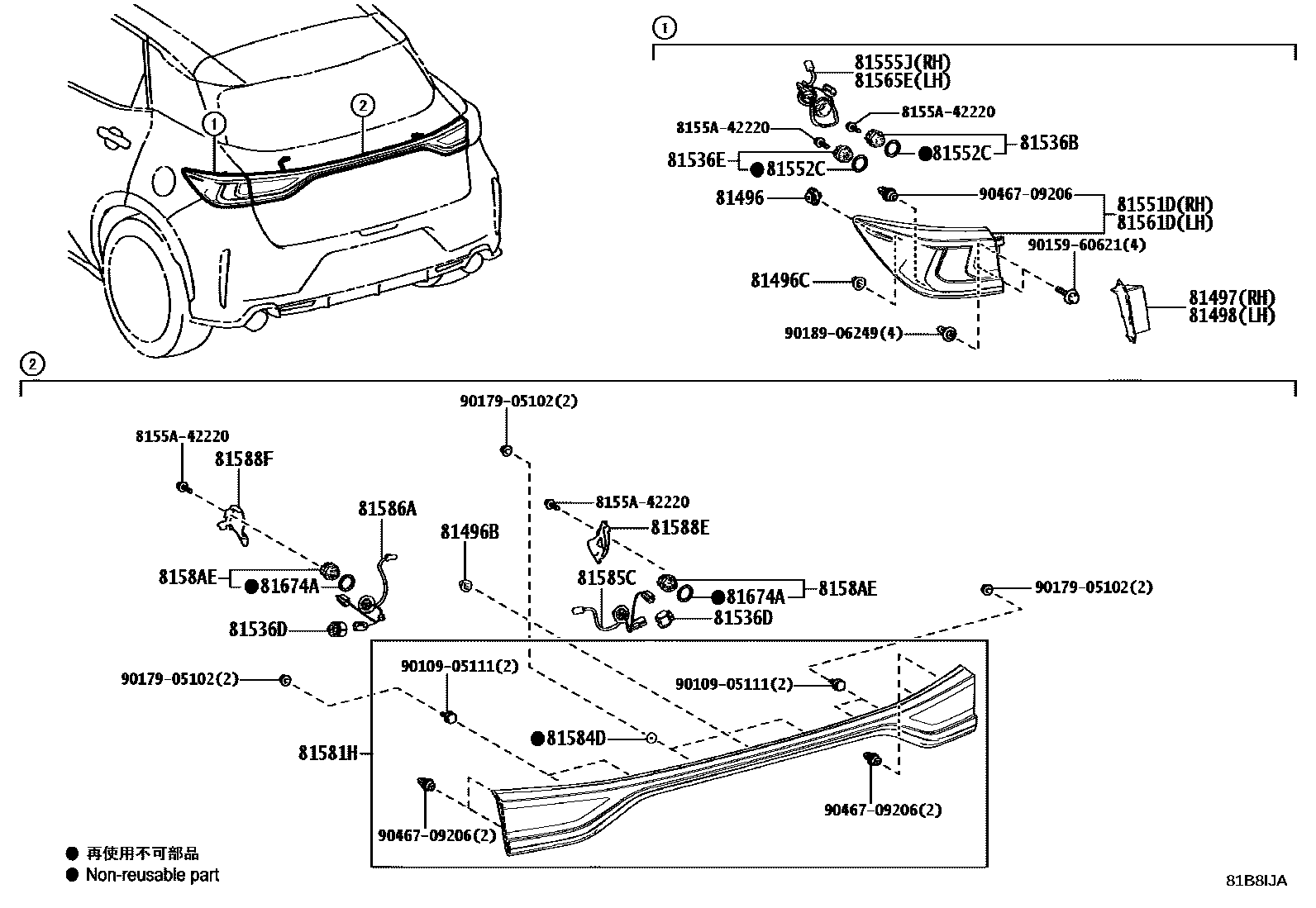

REAR COMBINATION LAMP

81496GUIDE, REAR COMBINATION LAMP

main81496-60010×2iGAYA16202408

81496BGUIDE, REAR LAMP

main81496-52020iGAYA16202408

81496CGUIDE, REAR COMBINATION LAMP, NO.2

main81496-52020×2iGAYA16202408

81497COVER, REAR COMBINATION LAMP, RH

main81497-52040iGAYA16202408

81498COVER, REAR COMBINATION LAMP, LH

main81498-52040iGAYA16202408

81536BLED, REAR TURN SIGNAL LAMP

main81536-46120×2iGAYA16202408

81536DLED, TAILLAMP

main81965-46010×2iGAYA16202408

81536ELED, STOP LAMP

main81536-42200×2iGAYA16202408

81551DLENS & BODY, REAR COMBINATION LAMP, RH

main81551-52F80iGAYA16202408

81552CGASKET, REAR COMBINATION LAMP

main81538-42200×4iGAYA16202408

81555JSOCKET & WIRE, REAR COMBINATION LAMP, RH

main81555-52F80iGAYA16202408

81561DLENS & BODY, REAR COMBINATION LAMP, LH

main81561-52F80iGAYA16202408

81565ESOCKET & WIRE, REAR COMBINATION LAMP, LH

main81555-52F80iGAYA16202408

81581HLENS & BODY, REAR LAMP

main81581-52440iGAYA16202408-202409

main81581-52480iGAYA16202409

81584DGASKET, REAR LAMP

main81584-22040×2iGAYA16202408

81585CSOCKET & WIRE, REAR LAMP, RH

main81585-52440iGAYA16202408

81586ASOCKET & WIRE, REAR LAMP, LH

main81585-52440iGAYA16202408

81588EBRACKET, REAR LAMP, RH

main81588-52440iGAYA16202408

81588FBRACKET, REAR LAMP, LH

main81588-52450iGAYA16202408

8158AELED, BACK-UP LAMP

main8159A-52420×2iGAYA16202408

81674AGASKET, BACK-UP LAMP

main81538-42200×4iGAYA16202408

8155A42220

main8155A-42220

9010905111

main90109-05111

9015960621

main90159-60621

9017905102

main90179-05102

9018906249

main90189-06249

9046709206

main90467-09206

27 parts on this diagram · 1 diagram in section
