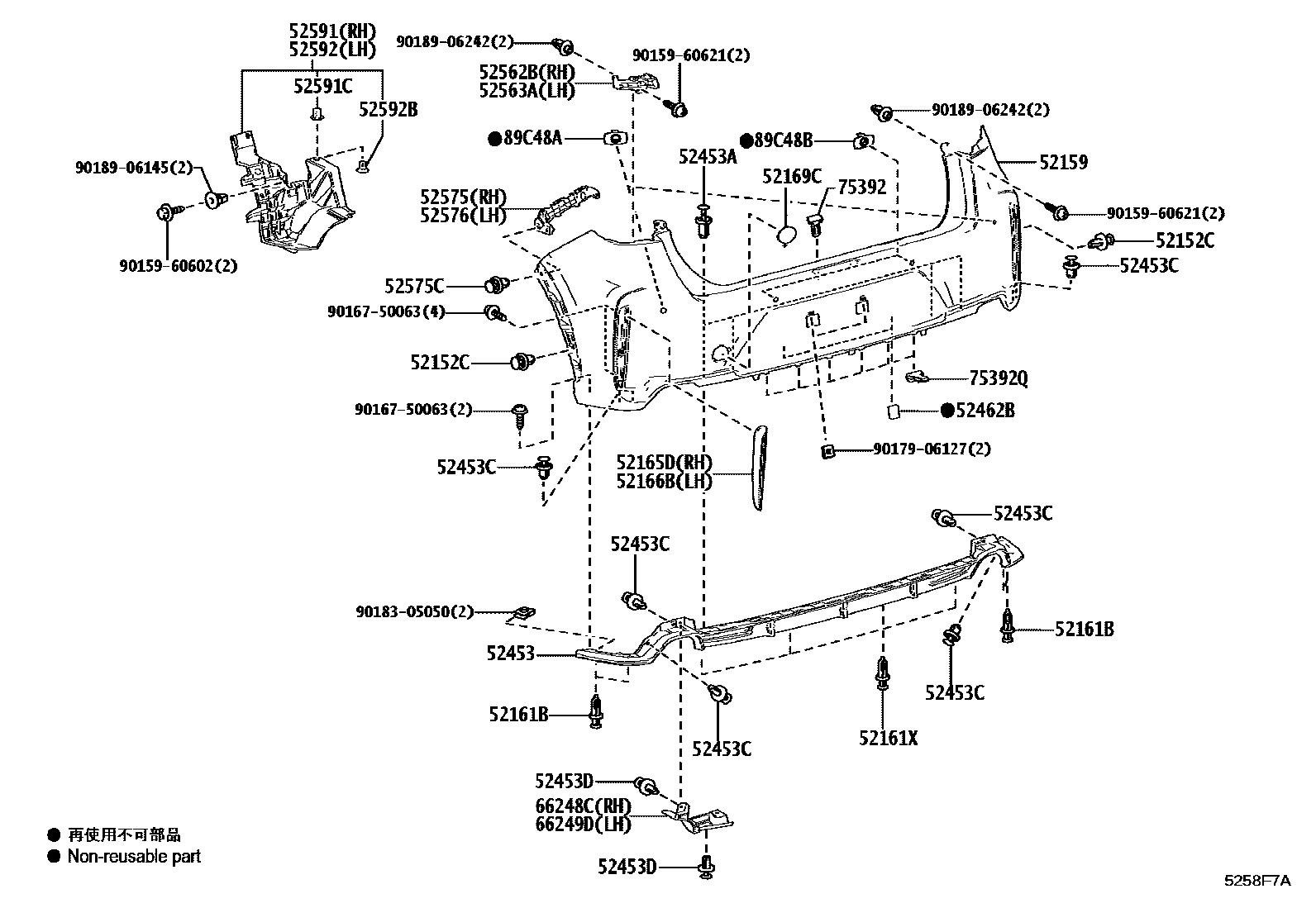

REAR BUMPER & BUMPER STAY
52152CCLIP, REAR BUMPER SIDE
52159COVER, REAR BUMPER
PAINT REQ.
52161BPIECE, REAR BUMPER
52161XPIECE, REAR BUMPER
52165DEXTENSION, REAR BUMPER CORNER, RH
52166BEXTENSION, REAR BUMPER CORNER, LH
52169CCOVER, REAR BUMPER, LOWER
PAINT REQ.
52453GUARD, REAR BUMPER, CENTER
52453ACLIP, REAR BUMPER GUARD
52453CCLIP, REAR BUMPER GUARD, NO.2
52453DCLIP, REAR BUMPER GUARD, NO.3
52462BPAD, REAR BUMPER
52562BRETAINER, REAR BUMPER, UPPER RH
52563ARETAINER, REAR BUMPER, UPPER LH
52575RETAINER, REAR BUMPER SIDE, RH
52575CCLIP, REAR BUMPER SIDE RETAINER
52576RETAINER, REAR BUMPER SIDE, LH
52591SEAL, REAR BUMPER SIDE, RH
52591CCLIP, REAR BUMPER SIDE SEAL
SUPER WHITE 2
52592SEAL, REAR BUMPER SIDE, LH
52592BCLIP, REAR BUMPER SIDE SEAL
BLACK
66248CCOVER, REAR BODY FLOOR SIDE, RH
66249DCOVER, REAR BODY FLOOR SIDE, LH
75392RETAINER, OUTSIDE MOULDING
75392QRETAINER, OUTSIDE MOULDING, NO.2
PERIPHERAL MONITOR CAMERA-WITH(PANORAMIC VIEW MONITOR)
89C48ARETAINER, ULTRASONIC SENSOR, REAR CORNER
89C48BRETAINER, ULTRASONIC SENSOR, REAR CENTER
9015960602
main90159-60602
9015960621
main90159-60621
9016750063
main90167-50063
9017906127
main90179-06127
9018305050
main90183-05050
9018906145
main90189-06145
9018906242
main90189-06242
34 parts on this diagram · 1 diagram in section
