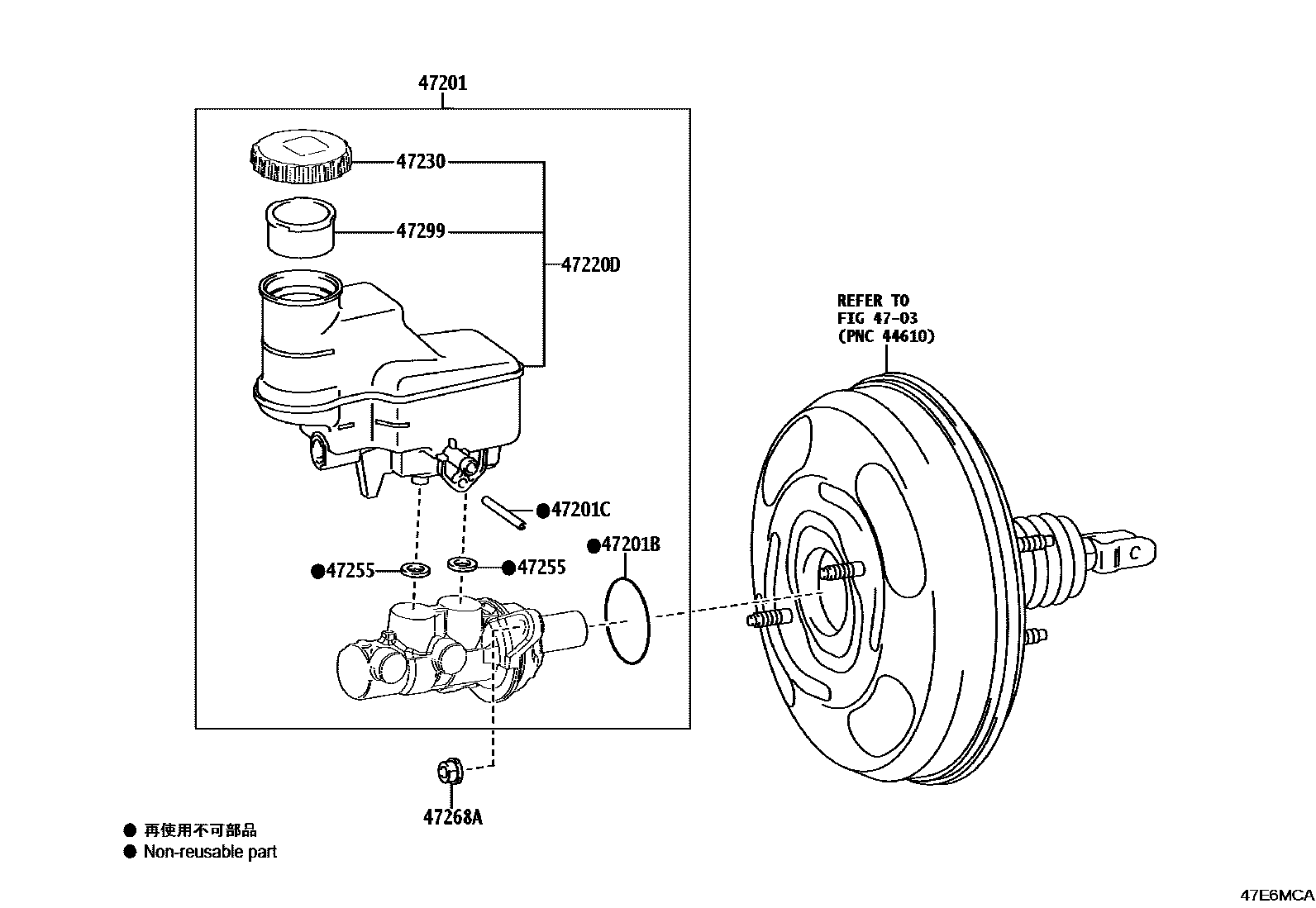

BRAKE MASTER CYLINDER

4703

47201CYLINDER SUB-ASSY, BRAKE MASTER

main47201-K0050iGAYA16202408

47201BRING, O(FOR BRAKE MASTER CYLINDER)

main90015-AH002iGAYA16202408

47201CRING PIN, BRAKE MASTER CYLINDER

main90029-15803iGAYA16202408

47220DRESERVOIR ASSY, BRAKE MASTER CYLINDER

main47220-K0060iGAYA16202408

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-47090iGAYA16202408

47255GROMMET, MASTER CYLINDER RESERVOIR

main90029-48001iGAYA16202408

sub90016-AT001

47268ANUT, BRAKE MASTER CYLINDER

main90179-08204iGAYA16202408

47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR

main47299-20060iGAYA16202408

9 parts on this diagram · 1 diagram in section
