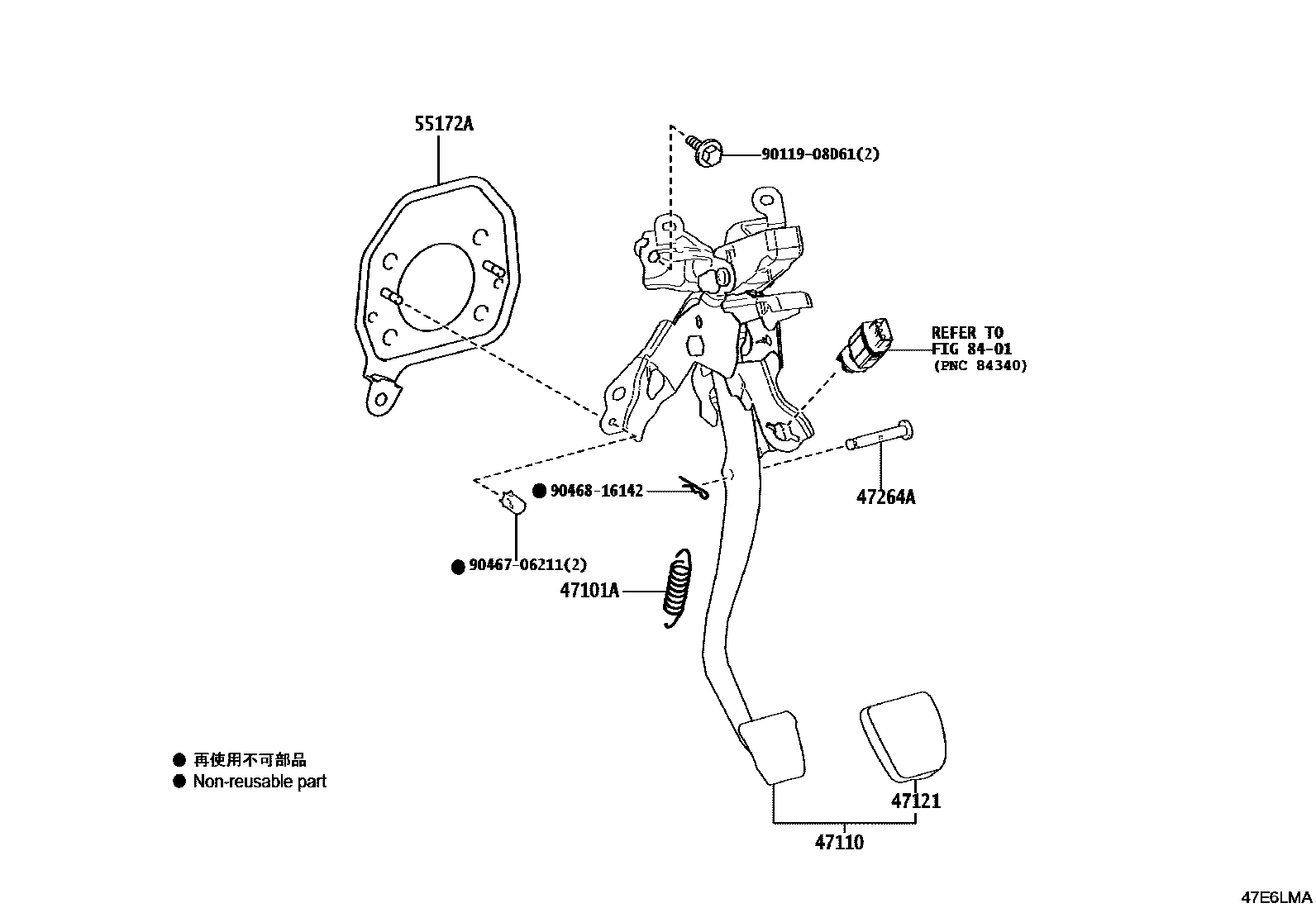

BRAKE PEDAL & BRACKET

47101ASPRING(FOR BRAKE PEDAL RETURN)

main90506-17003iGAYA16202408

47110SUPPORT ASSY, BRAKE PEDAL

main47110-52520iGAYA16202408

47121PAD, BRAKE PEDAL

main47121-78010iGAYA16202408

47264APIN(FOR PUSH ROD)

main90249-08051iGAYA16202408

55172ABASE, BRAKE PEDAL SUPPORT

main55172-52080iGAYA16202408

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9011908D61

main90119-08D61

9046706211

main90467-06211

9046816142

main90468-16142

9 parts on this diagram · 1 diagram in section
