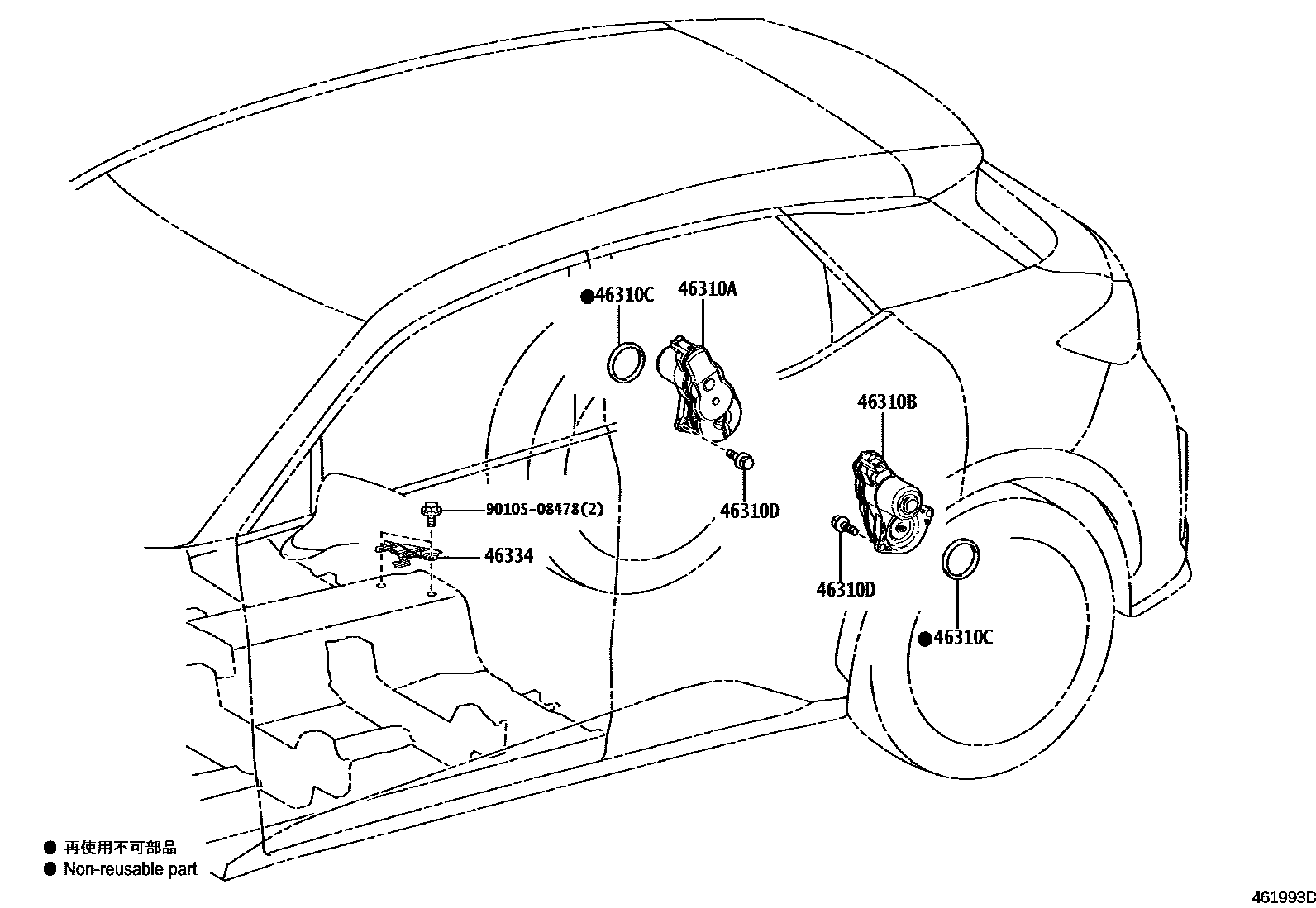

PARKING BRAKE & CABLE

46310AACTUATOR ASSY, PARKING BRAKE, RH

main46310-33010iGAYA16202408

46310BACTUATOR ASSY, PARKING BRAKE, LH

main46310-33010iGAYA16202408

46310CSEAL(FOR PARKING BRAKE ACTUATOR)

main90015-AH005×2iGAYA16202408

46310DBOLT(FOR PARKING BRAKE ACTUATOR)

main90015-AA702×4iGAYA16202408

46334PROTECTOR, INTERMEDIATE LEVER

main46334-K0010iGAYA16202408

9010508478

main90105-08478

6 parts on this diagram · 1 diagram in section
