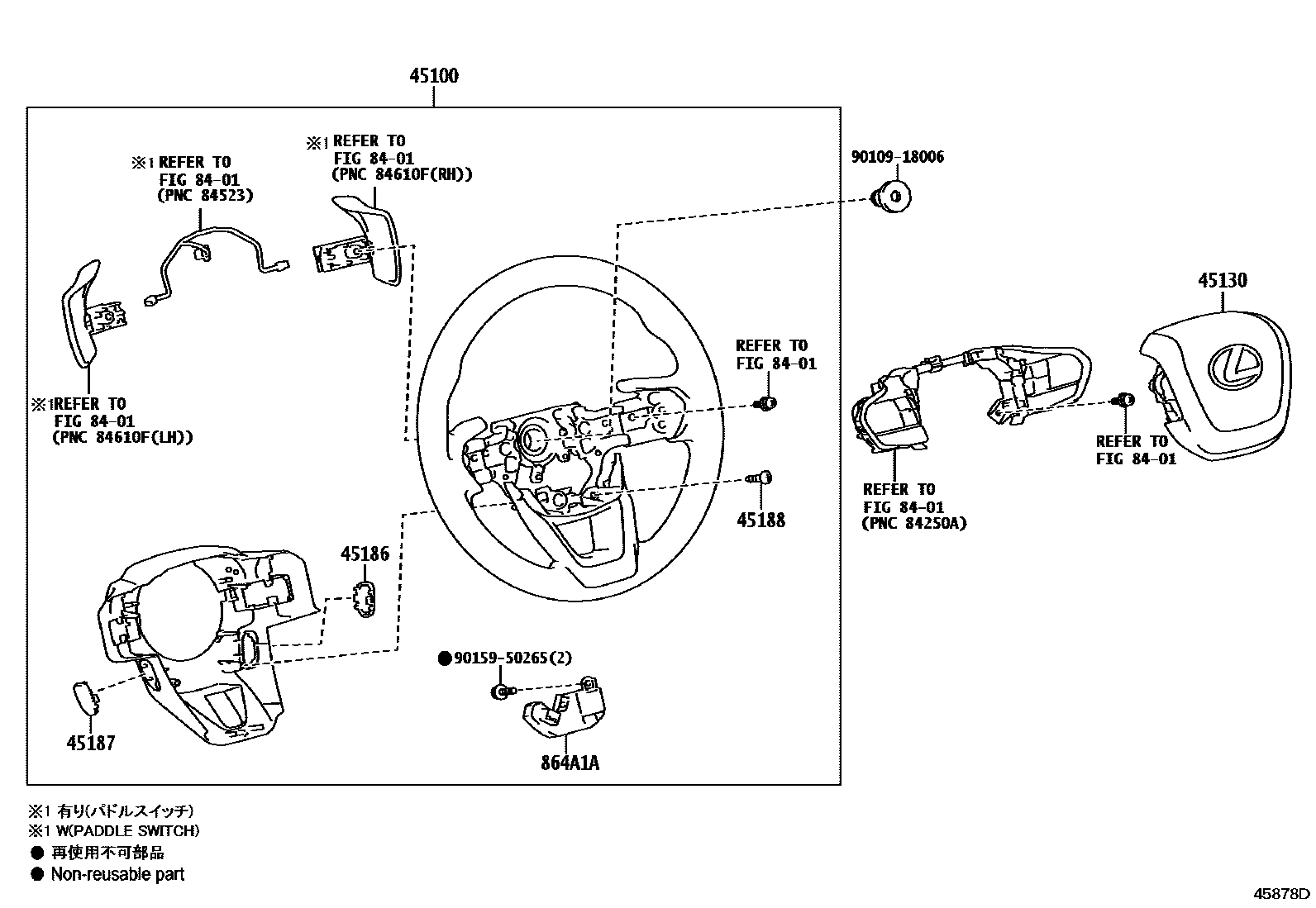

STEERING WHEEL
45100WHEEL ASSY, STEERING
3-SPOKE,LEATHER,BLACK/RED,TRIM20
3-SPOKE,LEATHER,BLACK/BLACK,TRIM20
3-SPOKE,LEATHER,BESPOKE BUILD&CUSTOMIZE STEERING GRIP-OCHER,FROMAGE/SHELL,TRIM01,21,31,41; 3-SPOKE,LEATHER,BESPOKE BUILD&CUSTOMIZE STEERING GRIP-SOLIS WHITE,FROMAGE/SHELL,TRIM01,21,31,41
3-SPOKE,LEATHER,BESPOKE BUILD&CUSTOMIZE STEERING GRIP-OCHER,BLACK/BLACK,TRIM01,21,31,41; 3-SPOKE,LEATHER,BESPOKE BUILD&CUSTOMIZE STEERING GRIP-SOLIS WHITE,BLACK/BLACK,TRIM01,21,31,41
3-SPOKE,LEATHER,BESPOKE BUILD&CUSTOMIZE STEERING GRIP-OCHER,OCHER/OCHER,TRIM01,21,31,41; 3-SPOKE,LEATHER,BESPOKE BUILD&CUSTOMIZE STEERING GRIP-SOLIS WHITE,OCHER/OCHER,TRIM01,21,31,41
3-SPOKE,LEATHER,BESPOKE BUILD,BLACK/BLACK,TRIM0#,21,31,4#
3-SPOKE,LEATHER,BESPOKE BUILD,BLACK/RED,TRIM21,31
45130BUTTON ASSY, HORN
FROMAGE,TRIM01,21,31,41
BLACK,TRIM01,20,21,31,41
OCHER,TRIM01,21,31,41
45186COVER, STEERING WHEEL, LOWER NO.2
BLACK,TRIM0#,2#,3#,4#
45187COVER, STEERING WHEEL, LOWER NO.3
BLACK,TRIM0#,2#,3#,4#
45188SCREW, STEERING WHEEL PAD ATTACHING
8401SWITCH & RELAY & COMPUTER
864A1ACOMPUTER, MULTIPLEX NETWORK STEERING
9010918006
main90109-18006
9015950265
main90159-50265
9 parts on this diagram · 1 diagram in section
