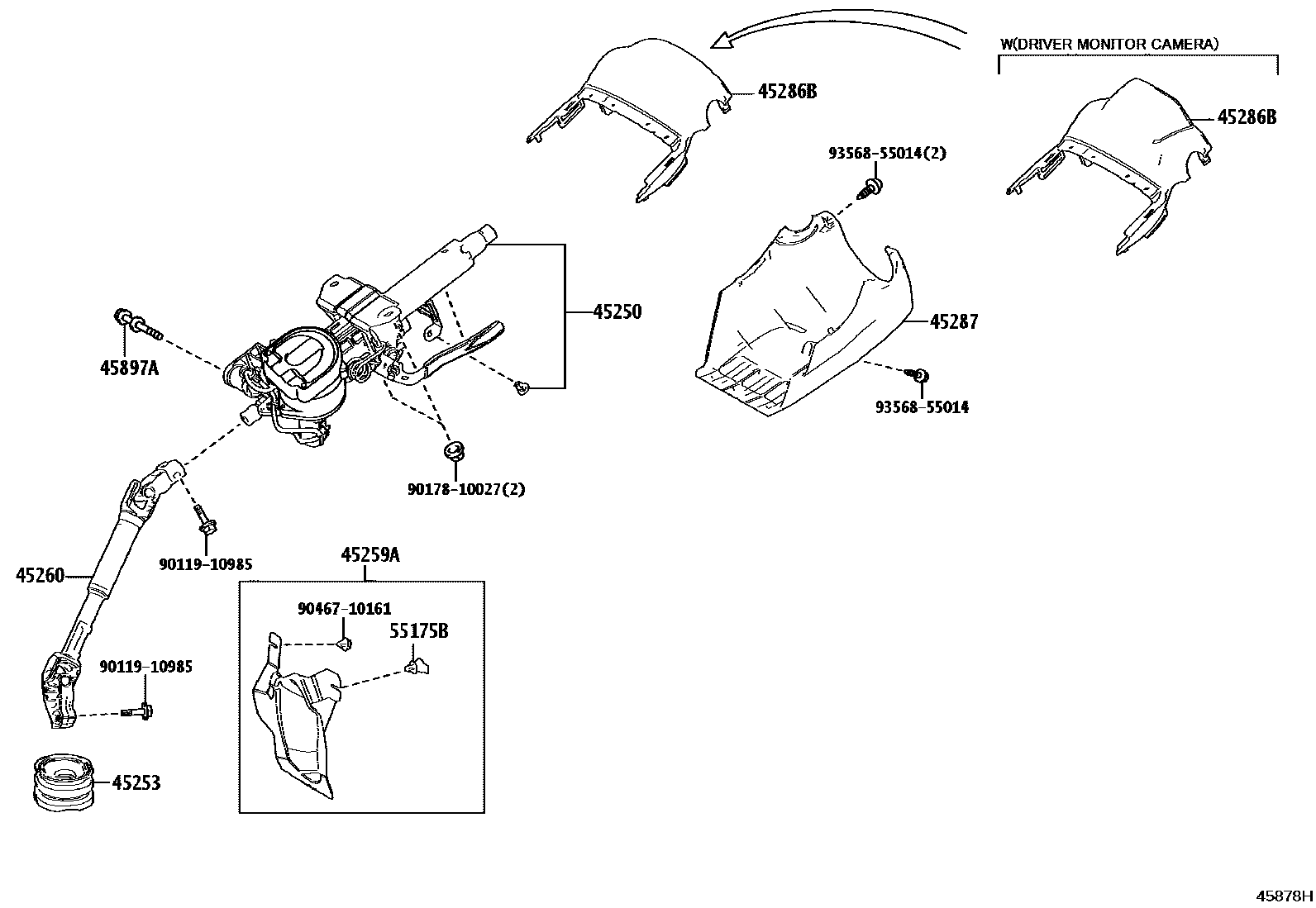

STEERING COLUMN & SHAFT

45250COLUMN ASSY, STEERING

main45250-52F30iGAYA16202408

*614

45253COVER, STEERING COLUMN HOLE

main45253-K0010iGAYA16202408

45259ASHEET, COLUMN HOLE COVER SILENCER

main45259-K0010iGAYA16202408

45260SHAFT ASSY, STEERING INTERMEDIATE, NO.2

main45260-52360iGAYA16202408

45286BCOVER, STEERING COLUMN, UPR

main45286-52250-C0iGAYA16202408

BLACK,TRIM0#,2#,3#,4#

45287COVER, STEERING COLUMN, LWR

main45024-52170-C0iGAYA16202408

BLACK,TRIM0#,2#,3#,4#

45897ABOLT, TILT STEERING PAWL SET

main90119-10A34iGAYA16202408

55175BCLAMP, STEERING COLUMN SUPPORT, NO.1

main45256-52010iGAYA16202408

9011910985

main90119-10985

9017810027

main90178-10027

9046710161

main90467-10161

9356855014

main93568-55014

12 parts on this diagram · 1 diagram in section
