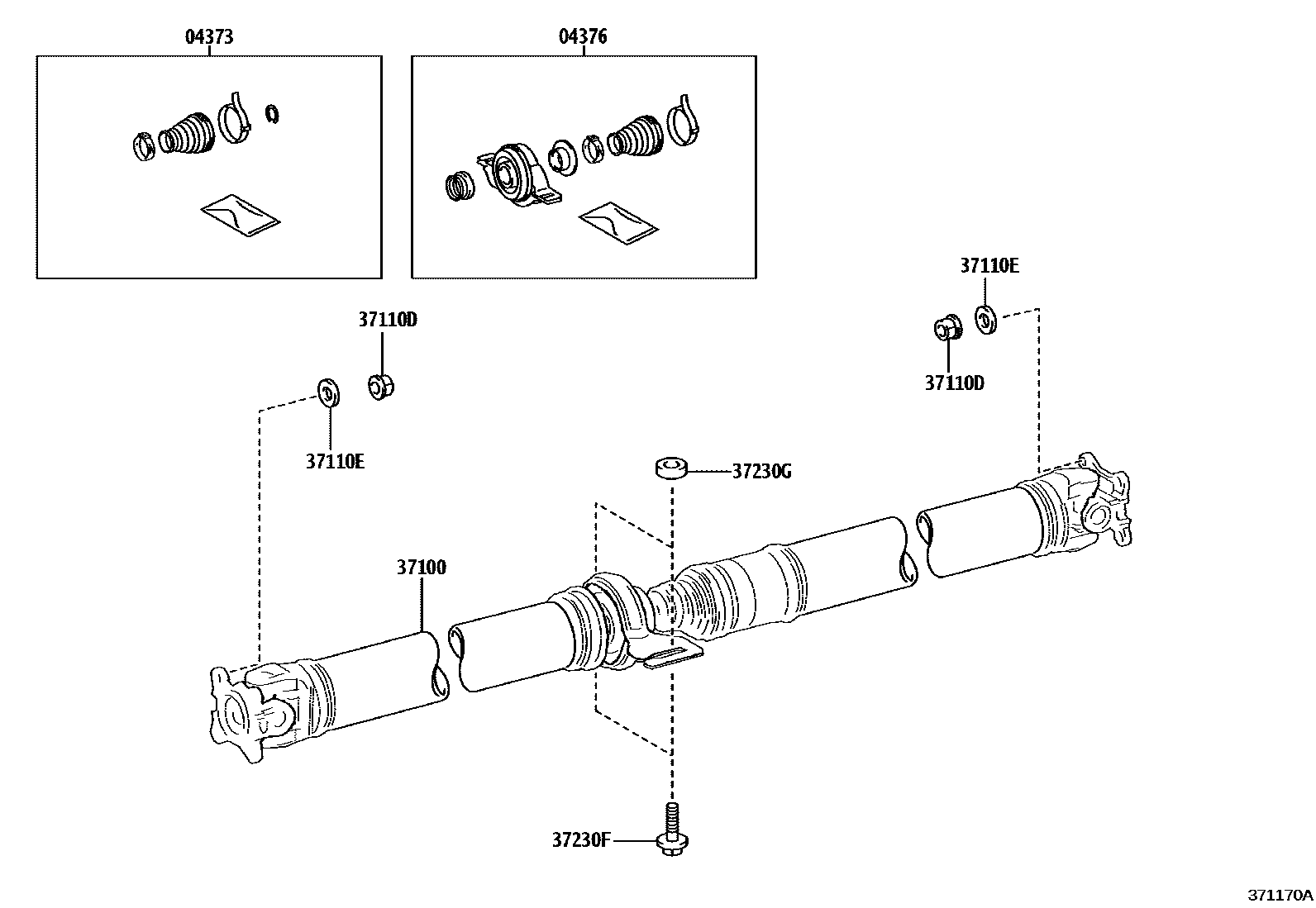

PROPELLER SHAFT & UNIVERSAL JOINT

04373BOOT KIT, UNIVERSAL

main04373-48010iGAYA16202408-202411

main04373-48011iGAYA16202412

04376BEARING KIT, CENTER SUPPORT

main04376-48030iGAYA16202408-202412

main04376-48031iGAYA16202412

37100SHAFT ASSY, PROPELLER W/CENTER BEARING

main37100-52190iGAYA16202408

37110DNUT (FOR PROPELLER SHAFT)

main90178-10007×8iGAYA16202408

37110EWASHER (FOR PROPELLER SHAFT)

main90560-10102×8iGAYA16202408

37230FBOLT, NO.1 (FOR CENTER SUPPORT BEARING)

main90119-10444×2iGAYA16202408

37230GWASHER, NO.2 (FOR CENTER SUPPORT BEARING)

main90201-10081×2iGAYA16202408

T=4.5

main90201-10083×2iGAYA16202408

T=6.5

main90201-10084×2iGAYA16202408

T=9.0

main90201-10085×2iGAYA16202408

T=11.0

main90201-10123×2iGAYA16202408

T=2.0

7 parts on this diagram · 1 diagram in section
