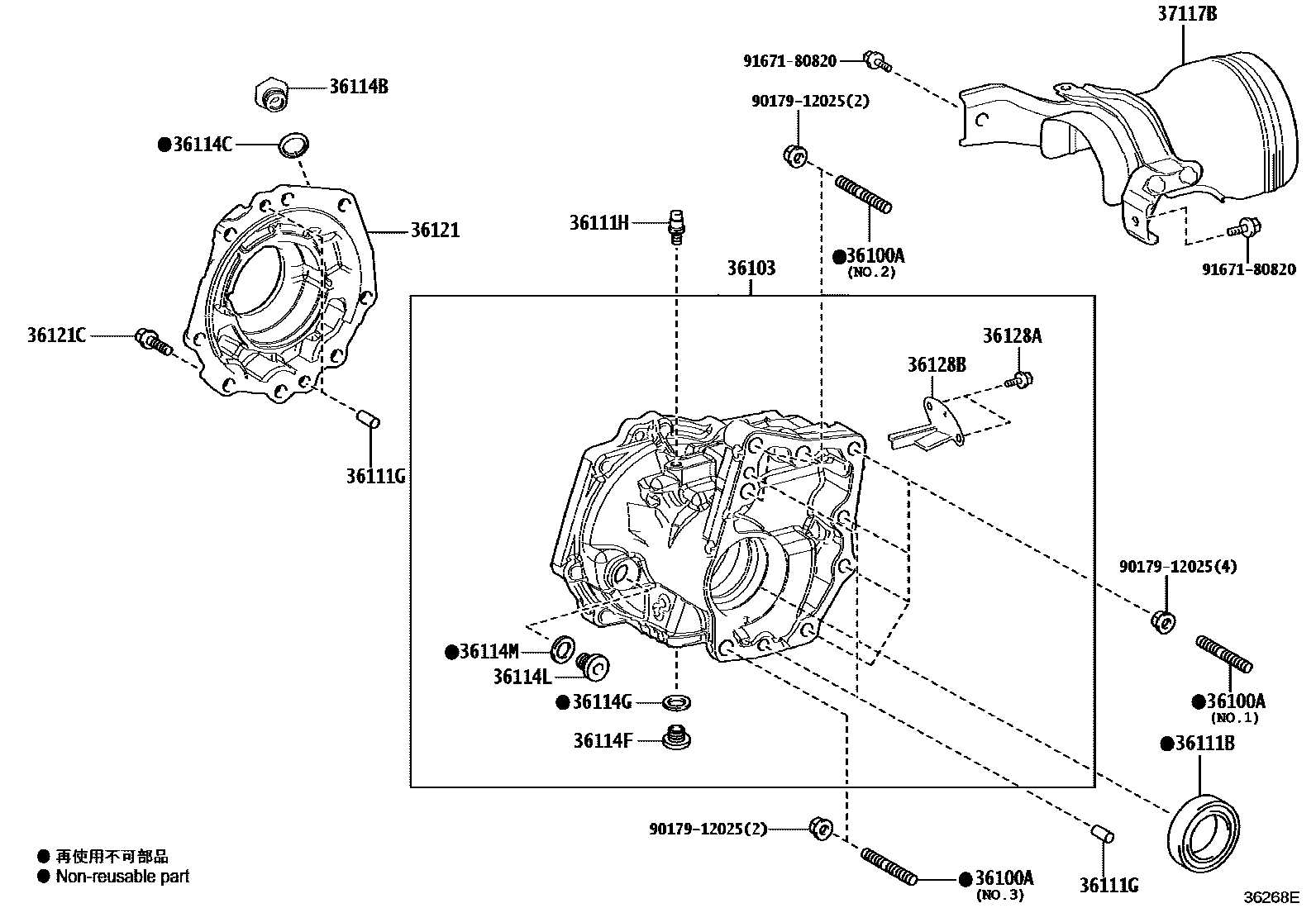

TRANSFER CASE & EXTENSION HOUSING

36100ABOLT, STUD (FOR TRANSFER & TRANSAXLE SETTING)

main90116-12041×4iGAYA16202408

S=30 & 22,L=64

main90116-12051×3iGAYA16202408

S=22 & 22,L=73

main90116-12052iGAYA16202408

S=22 & 22,L=53

36103CASE SUB-ASSY, TRANSFER

main36103-52030iGAYA16202408

36111BSEAL, OIL (FOR TRANSFER CASE)

main90311-55002iGAYA16202408

36111GPIN, STRAIGHT (FOR TRANSFER CASE)

main90250-10017×4iGAYA16202408

L=20,OD=10

36111HPLUG, BREATHER (FOR TRANSFER CASE)

main90930-03133iGAYA16202408

36114BPLUG, NO.1 (FOR TRANSFER CASE)

main90341-18006iGAYA16202408

36114CGASKET, NO.1 (FOR TRANSFER CASE)

main12157-10010iGAYA16202408

36114FPLUG (FOR TRANSFER DRAIN)

main90341-18051iGAYA16202408

36114GGASKET (FOR TRANSFER DRAIN PLUG)

main12157-10010iGAYA16202408

36114LPLUG, FILLER(FOR TRANSFER)

main90341-18023iGAYA16202408

36114MGASKET (FOR TRANSFER FILLER PLUG)

main12157-10010iGAYA16202408

36121COVER, TRANSFER CASE, NO.1

main36121-52020iGAYA16202408

36121CBOLT, WASHER BASED HEAD HEXAGON (FOR TRANSFER CASE COVER)

main91552-81030×8iGAYA16202408

36128ABOLT (FOR BREATHER OIL DEFLECTOR)

main91621-60614×2iGAYA16202408

36128BDEFLECTOR, BREATHER OIL

main36128-42010iGAYA16202408

37117BINSULATOR, PROPELLER SHAFT HEAT

main37117-52030iGAYA16202408

9017912025

main90179-12025

9167180820

main91671-80820

18 parts on this diagram · 1 diagram in section
