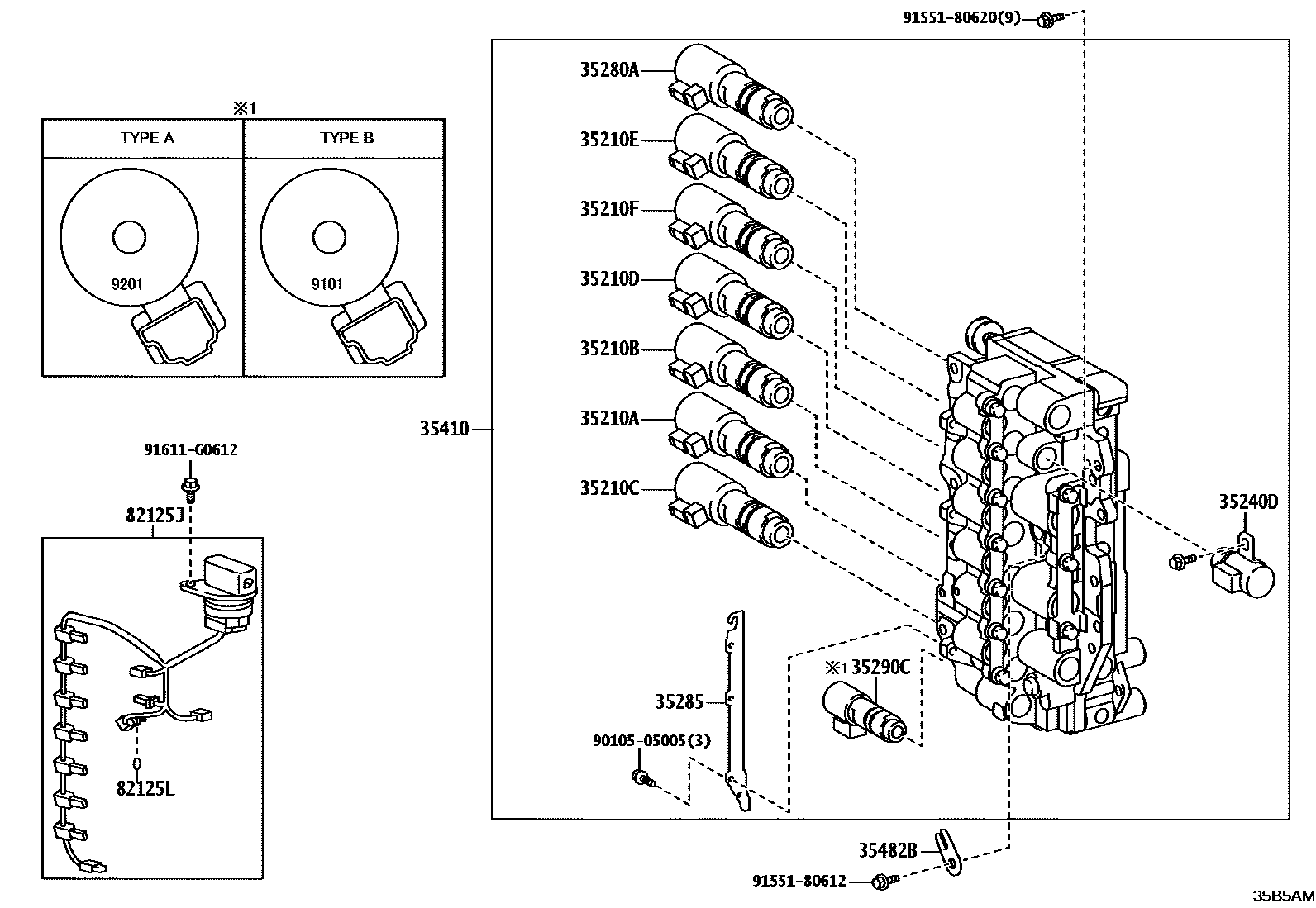

VALVE BODY & OIL STRAINER (ATM)
35210AVALVE, SOLENOID(SL1)
35210BVALVE, SOLENOID(SL3)
35210CVALVE, SOLENOID(SL2)
35210DVALVE, SOLENOID(SL4)
35210EVALVE, SOLENOID(SL5)
35210FVALVE, SOLENOID(SL6)
35240DVALVE, SOLENOID(SL)
35280AVALVE, SOLENOID(SLU)
35285PLATE, SOLENOID LOCK
35290CVALVE, SOLENOID(SLT)
TYPE A:REFER ILLUST.
TYPE B:REFER ILLUST.
35410BODY ASSY, TRANSMISSION VALVE
35482BCLAMP, TEMPERATURE SENSOR
82125JWIRE, TRANSMISSION
82125LRING, O(FOR TRANSMISSION WIRE)
9010505005
main90105-05005
9155180612
main91551-80612
9155180620
main91551-80620
91611G0612
main91611-G0612
18 parts on this diagram · 1 diagram in section
