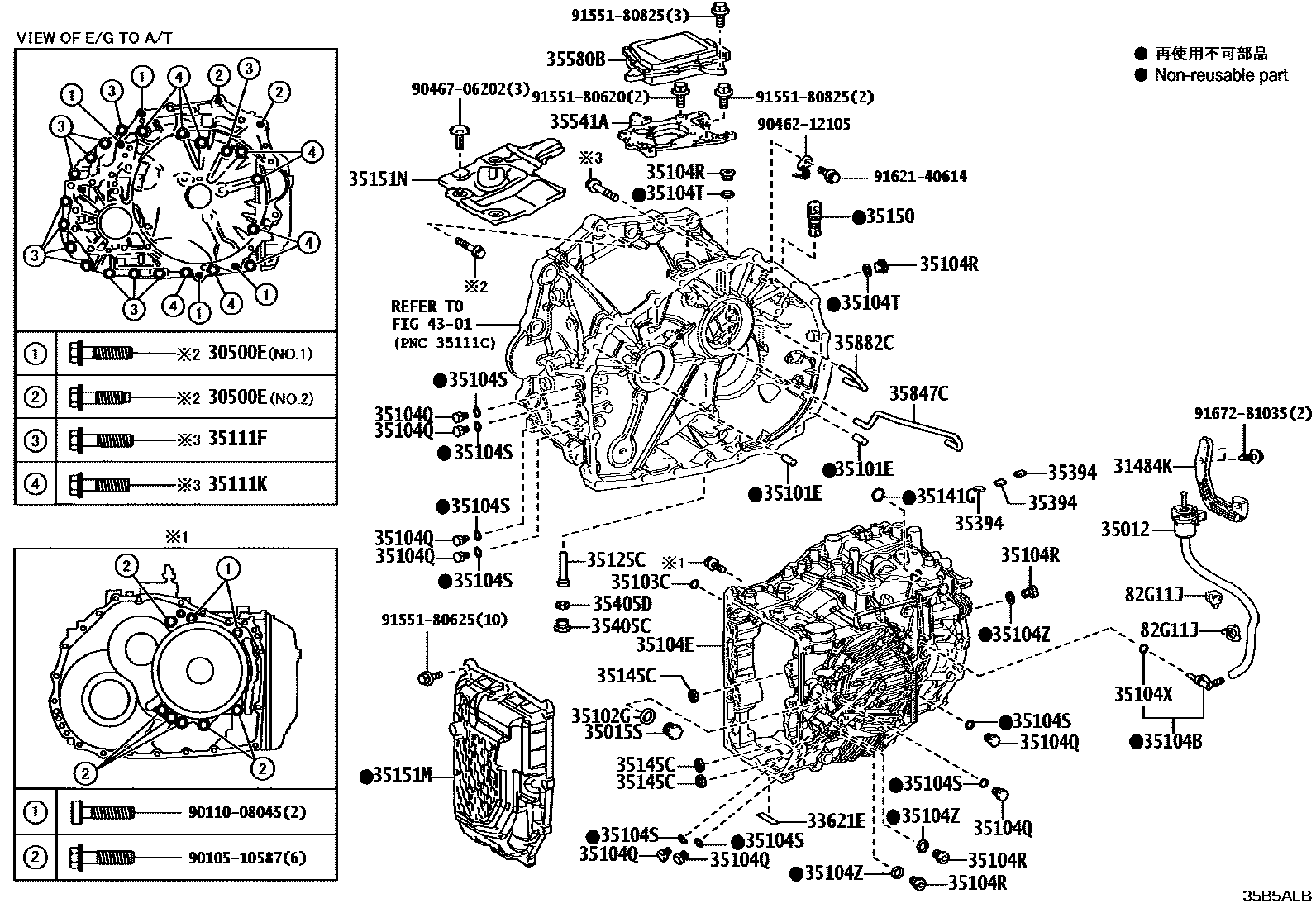

TRANSMISSION CASE & OIL PAN (ATM)

30500EBOLT(FOR TRANSAXLE & ENGINE SETTING)

main90105-10591×4iGAYA16202408

*10-1.25PX45-36,NO.1:REFER ILLUST.

main91552-81250×2iGAYA16202408

*12-1.25PX50-30,NO.2:REFER ILLUST.

31484KBRACKET, FLEXIBLE HOSE

main31484-52140iGAYA16202408

33621ELABEL, TRANSAXLE OIL NOTICE

main33621-28021iGAYA16202408

35012HOSE SUB-ASSY, TRANSMISSION BREATHER

main35012-52110iGAYA16202408

35015SPLUG, STRAIGHT(FOR TRANSMISSION CASE ADAPTER)

main90341-18064iGAYA16202408

35101EPIN, STRAIGHT (FOR AUTOMATIC TRANSMISSION CASE)

main90250-10021×2iGAYA16202408

35102GGASKET (FOR TRANSAXLE REAR COVER )

main90430-18008iGAYA16202408

35103CRING, O

main90301-06021iGAYA16202408

35104BPLUG, BREATHER, NO.1 (ATM)

main90930-03230iGAYA16202408

35104ECASE SUB-ASSY, AUTOMATIC TRANSAXLE

main35104-52160iGAYA16202408

35104QPLUG, NO.1 (FOR TRANSAXLE CASE)

main90341-08001×8iGAYA16202408

35104RPLUG, NO.2 (FOR TRANSAXLE CASE)

main90341-14015×6iGAYA16202408

35104SRING, O (FOR TRANSAXLE CASE PLUG NO.1)

main90301-06196×8iGAYA16202408

35104TRING, O (FOR TRANSAXLE CASE PLUG NO.2)

main90430-14008×3iGAYA16202408

35104XRING, O (FOR BREATHER PLUG)

main90301-08015iGAYA16202408

35104ZGASKET (FOR TRANSAXLE CASE)

main90430-14008×3iGAYA16202408

35111FBOLT (FOR TRANSAXLE HOUSING & TRANSAXLE CASE SETTING)

main91551-00835×12iGAYA16202408

*8-1.25PX35-22

35111KBOLT (FOR TRANSMISSION HOUSING & CASE SETTING)

main91551-00840×9iGAYA16202408

*8-1.25PX40-22

35125CTUBE, TRANSMISSION OIL FILLER, NO.1

main35125-48090iGAYA16202408

35141GRING, O (FOR AUTOMATIC TRANSMISSION CASE)

main90301-10018iGAYA16202408

35145CGASKET, TRANSAXLE CASE

main35145-33020×3iGAYA16202408

35150PLUG ASSY, TRANSMISSION CASE

main35150-44010iGAYA16202408

35151MCOVER, TRANSAXLE SIDE

main35151-33161iGAYA16202408

35151NCOVER, AUTOMATIC TRANSMISSION CASE

main35151-52050iGAYA16202408

35394MAGNET, OIL CLEANER (FOR TRANSMISSION)

main35394-48010×3iGAYA16202408

35405CPLUG SUB-ASSY, W/HEAD STRAIGHT SCREW

main90341-18023iGAYA16202408

35405DRING, O (FOR STRAIGHT SCREW PLUG)

main90430-18008iGAYA16202408

35541ABRACKET, SHIFT CONTROL ACTUATOR

main35541-78020iGAYA16202408

35580BACTUATOR ASSY, SHIFT CONTROL

main35580-78013iGAYA16202408

35847CTUBE, TRANSMISSION LUBE APPLY

main35847-48030iGAYA16202408

35882CTUBE, DIFFERENTIAL GEAR LUBE APPLY

main35882-48030iGAYA16202408

4301FRONT AXLE HOUSING & DIFFERENTIAL

→ Go to FIG 43-01

82G11JCLAMP, WIRING HARNESS

main82711-2D350×2iGAYA16202408

9010510587

main90105-10587

9011008045

main90110-08045

9046212105

main90462-12105

9046706202

main90467-06202

9155180620

main91551-80620

9155180625

main91551-80625

9155180825

main91551-80825

9162140614

main91621-40614

9167281035

main91672-81035

42 parts on this diagram · 1 diagram in section
