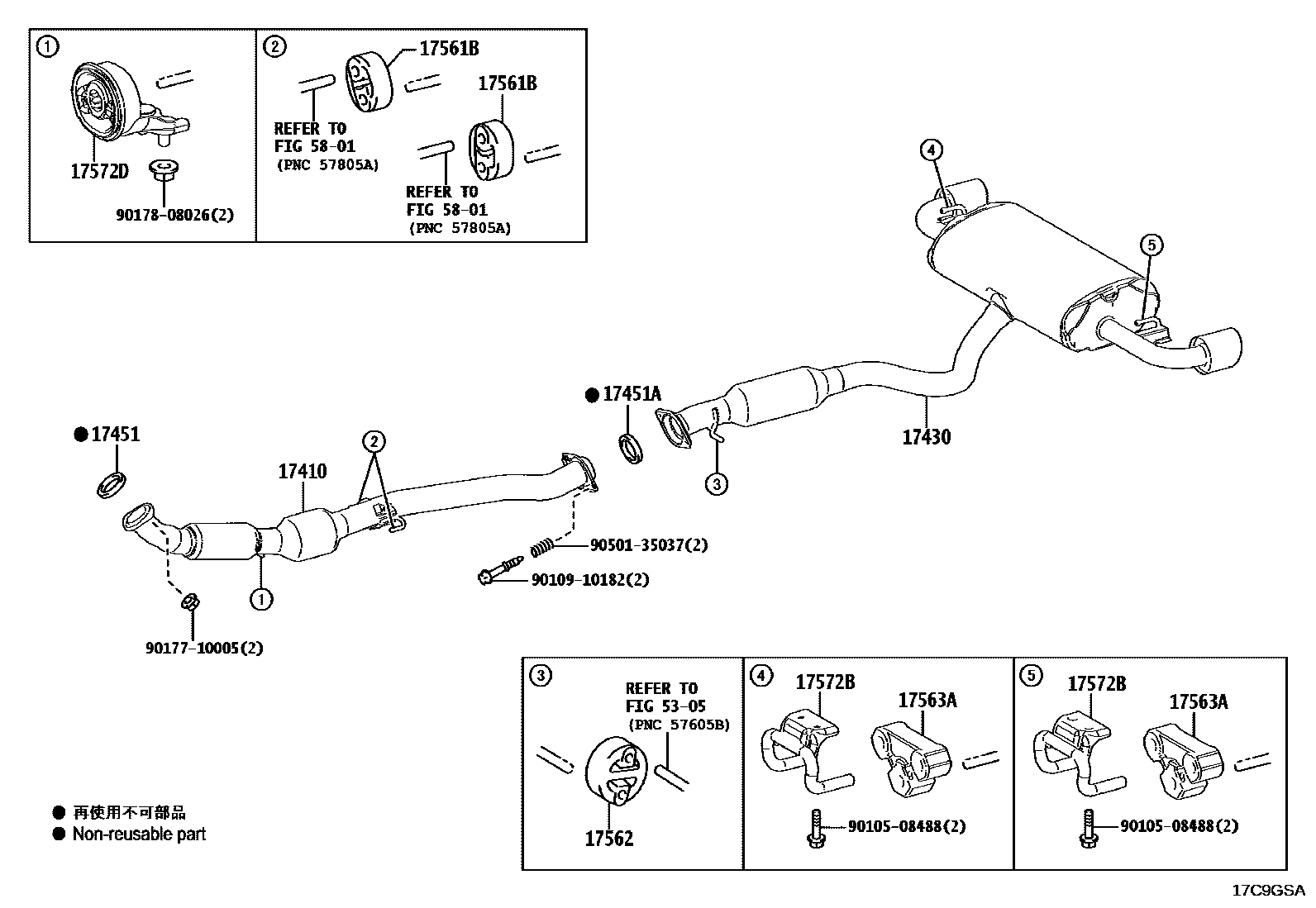

EXHAUST PIPE

17410PIPE ASSY, EXHAUST, FRONT

main17410-18130iG16EGTS..GAYA16202408

17430PIPE ASSY, EXHAUST, TAIL

main17430-18080iG16EGTS..GAYA16202408

17451GASKET, EXHAUST PIPE

main90917-06070iG16EGTS..GAYA16202408

17451AGASKET, EXHAUST PIPE, NO.2

main17451-52050iG16EGTS..GAYA16202408

17561BSUPPORT, EXHAUST PIPE, NO.1

main17565-47010×2iG16EGTS..GAYA16202408

17562SUPPORT, EXHAUST PIPE, NO.2

main17565-28010iG16EGTS..GAYA16202408

17563ASUPPORT, EXHAUST PIPE, NO.3

main17566-25010×2iG16EGTS..GAYA16202408

17572BBRACKET, EXHAUST PIPE SUPPORT, NO.2

main17575-18010×2iG16EGTS..GAYA16202408

17572DBRACKET, EXHAUST PIPE SUPPORT, NO.1

main17572-18020iG16EGTS..GAYA16202408

5305FLOOR SIDE MEMBER

→ Go to FIG 53-05

5801FLOOR PAN & LOWER BACK PANEL

→ Go to FIG 58-01

9010508488

main90105-08488

9010910182

main90109-10182

9017710005

main90177-10005

9017808026

main90178-08026

9050135037

main90501-35037

16 parts on this diagram · 1 diagram in section
