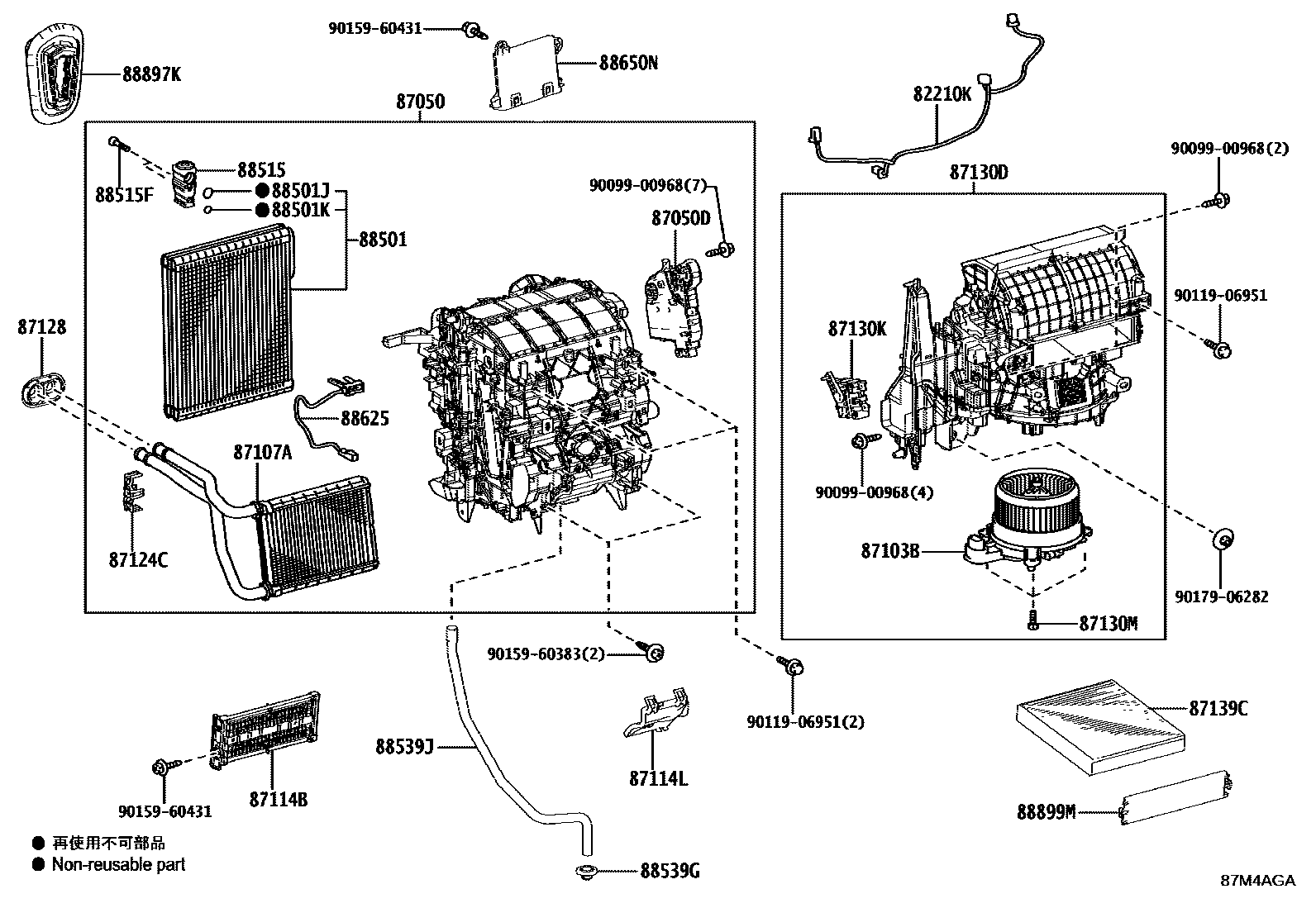

HEATING & AIR CONDITIONING - COOLER UNIT
82210KHARNESS ASSY, AIR CONDITIONER
87050RADIATOR ASSY, AIR CONDITIONER
UKRAINE SPEC
COLD AREA SPEC
COLD AREA SPEC
UKRAINE SPEC&COLD AREA SPEC
87050DDAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.2
87103BMOTOR SUB-ASSY, BLOWER W/FAN
COLD AREA SPEC; UKRAINE SPEC&COLD AREA SPEC
COLD AREA SPEC
87107AUNIT SUB-ASSY, HEATER RADIATOR
87114BCOVER, HEATER
COLD AREA SPEC
COLD AREA SPEC
87114LCOVER, HEATER, NO.2
COLD AREA SPEC
87124CCLAMP, HEATER
87128GROMMET, HEATER
87130DBLOWER ASSY
COLD AREA SPEC; UKRAINE SPEC&COLD AREA SPEC
COLD AREA SPEC
87130KDAMPER SERVO SUB-ASSY, BLOWER, NO.1
COLD AREA SPEC
COLD AREA SPEC; UKRAINE SPEC&COLD AREA SPEC
87130MSCREW(FOR BLOWER)
87139CFILTER, CLEAN AIR
DEODORANT FILTER
88501EVAPORATOR SUB-ASSY, COOLER, NO.1
88501JO-RING, COOLER EVAPORATOR NO.2(SUCTION)
ID=13.4,OD=18.2
88501KO-RING, COOLER EVAPORATOR NO.1(LIQUID)
ID=10.8,OD=15.6
88515VALVE, COOLER EXPANSION
UKRAINE SPEC; UKRAINE SPEC&COLD AREA SPEC
88515FBOLT(FOR COOLER EXPANSION VALVE)
88539GGROMMET (FOR COOLER UNIT DRAIN HOSE)
88625THERMISTOR, COOLER, NO.1
88650NAMPLIFIER ASSY, AIR CONDITIONER
main88650-52F10iMAYH10..ARL,EUR,TUR; MAYH10..EUR,TUR; MAYH10..LHD..GEN;MAYH10..ARL,EUR,TUR; MAYH10..TWN;MAYH1#..RHD..GEN; MAYH15..ARL,EUR202312
"ACTIVE"; "ACTIVE"&COMFORT PACKAGE B; "COOL"; "COOL"&COMFORT PACKAGE B; "ELEGANT"; "ELEGANT"&COMFORT PACKAGE B; "RELAX"; "RELAX"&COMFORT PACKAGE B; COMFORT PACKAGE A; COMFORT PACKAGE B; SEAT HEATER-WITH(DRIVER SEAT & PASSENGER SEAT)
88897KGROMMET, (FOR COOLER PIPE)
88899MPLATE, COVER(FOR AIR FILTER)
9009900968
main90099-00968
9011906951
main90119-06951
9015960383
main90159-60383
9015960431
main90159-60431
9017906282
main90179-06282
29 parts on this diagram · 4 diagrams in section
