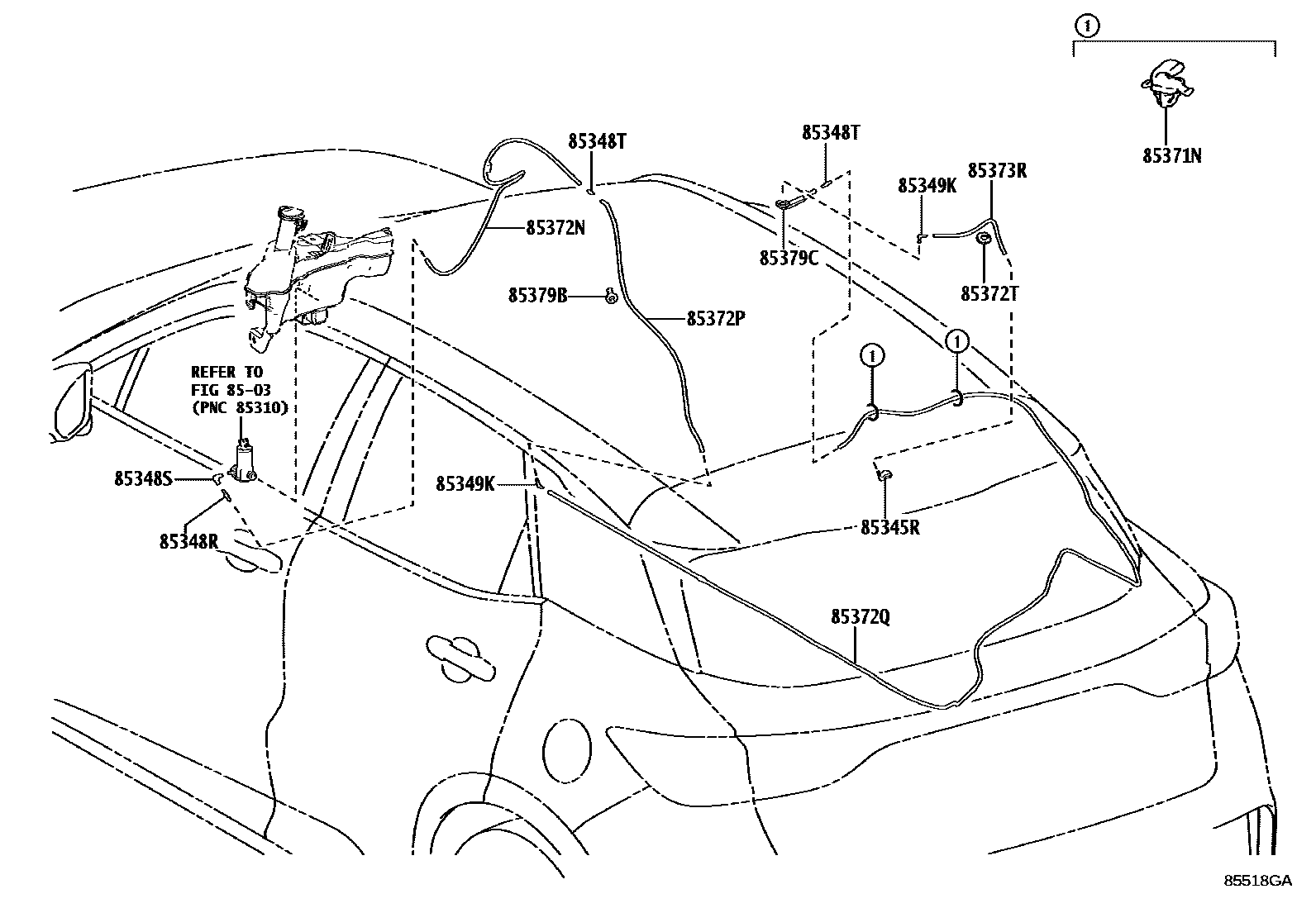

REAR WASHER

8503

85345RNOZZLE, REAR WASHER

85348RJOINT, REAR WASHER HOSE, NO.1

85348SJOINT, REAR WASHER ELBOW, NO.1

85348TJOINT, REAR WASHER HOSE, NO.2

main85349-89122×2i202312

85349KJOINT, REAR WASHER ELBOW, NO.2

main85355-20200×2i202312

85371NCLAMP, REAR WASHER HOSE

main85371-12040×2i202312

85372NHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.1

L=1450(*H,L=870)

85372PHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.2

L=1000(*H,L=670),CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB *BGM)&ADVANCED PARK-WITH

85372QHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.3

L=5000(*H,L=3900)

L=2800,CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB *BGM)&ADVANCED PARK-WITH

85372TGROMMET, WASHER

main85372-20020i202312-202406

85373RHOSE, REAR WASHER (FROM JOINT TO NOZZLE)

L=1450(*H,L=240),CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB *BGM)&ADVANCED PARK-WITH

85379BGROMMET, WASHER, A

85379CGROMMET, REAR WASHER HOSE NO.1

14 parts on this diagram · 2 diagrams in section
