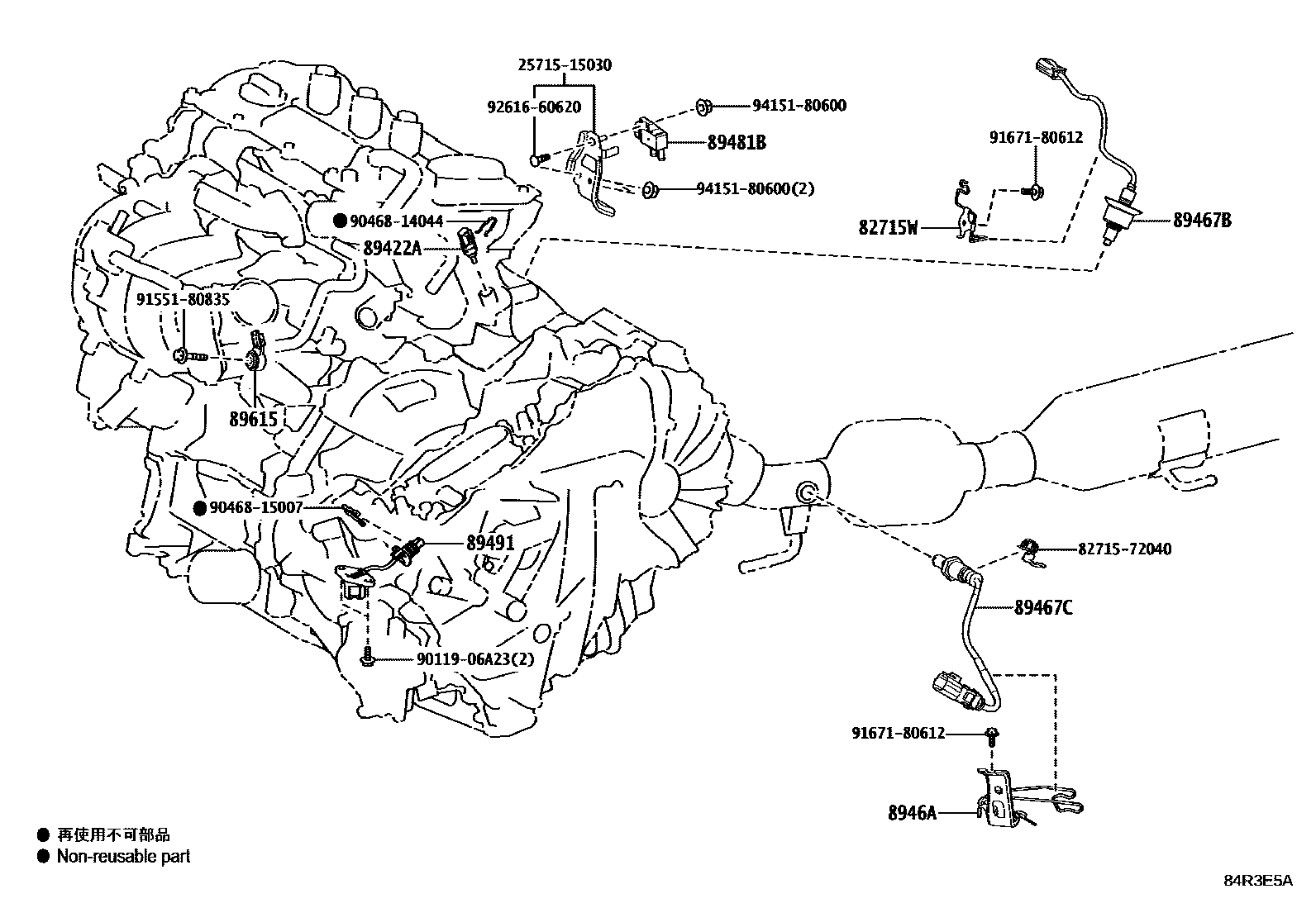

SWITCH & RELAY & COMPUTER

0001 1ENGINE & TRANSMISSION 0002 1ENGINE ROOM 0003 1ENGINE ROOM RELAY BLOCK 0004 1COWL 0005 1COWL 0006 1INSTRUMENT PANEL 0007 1INSTRUMENT PANEL 0008 1CONSOLE 0009 1CONSOLE 0010 1STEERING 0011 1STEERING 0012 1SEAT 0013 1SEAT 0014 1DOOR & ROOF 0015 1FLOOR & BACK DOOR 0016 1FLOOR RELAY BLOCK

82715BRACKET,WIRING HARNESS CLAMP

main82715-5CA50iMAYH1#..LHD202312

82715WBRACKET, WIRING HARNESS CLAMP

main82715-K0030iMAYH1#202312

89422ASENSOR, WATER TEMPERATURE

main89422-33040iMAYH1#202312

89467BSENSOR, AIR FUEL RATIO

main89467-K0020iMAYH1#202312

89467CSENSOR, AIR FUEL RATIO, NO.2

main89467-52330iMAYH1#202312

8946ABRACKET, EXHAUST SENSOR CLAMP

main8946A-52100iMAYH1#202312

89481BSENSOR, DIFFERENTIAL PRESSURE

main89481-K0010iMAYH1#..EUR,TUR202312

89491SENSOR, ENGINE OIL LEVEL

main89491-50082iMAYH1#202312

89615SENSOR, KNOCK CONTROL

main89615-20090iMAYH1#202312

2571515030BRACKET, EMISSION CONTROL VALVE

main25715-15030

8271572040BRACKET,WIRING HARNESS CLAMP

main82715-72040

9011906A23

main90119-06A23

9046814044

main90468-14044

9046815007

main90468-15007

9155180835

main91551-80835

9167180612

main91671-80612

9261660620

main92616-60620

9415180600

main94151-80600

18 parts on this diagram · 16 diagrams in section
