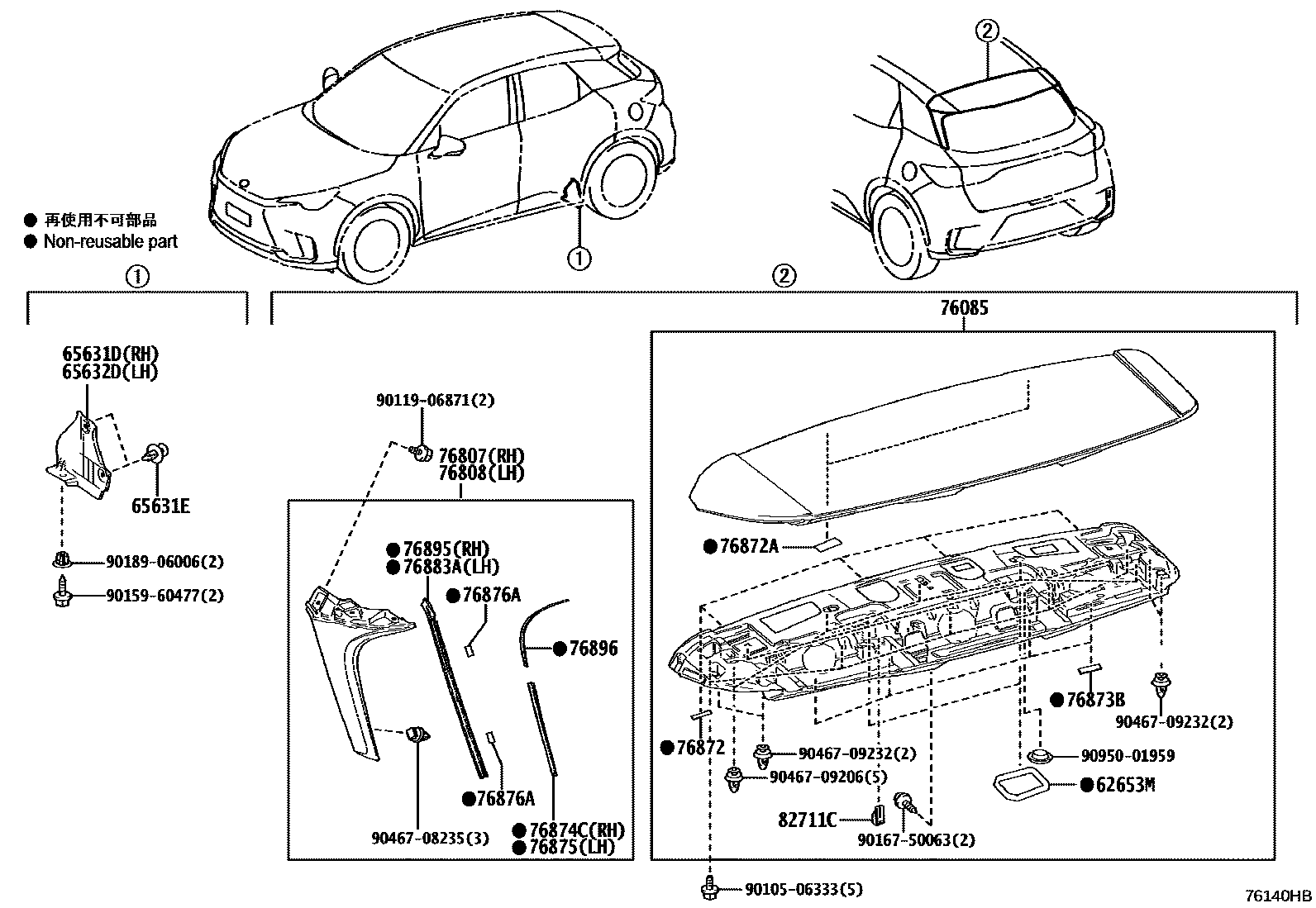

MUDGUARD & SPOILER

62653MPACKING

main62653-52010×2iMAYH1#202312

65631DPLATE, REAR WHEEL HOUSE, FRONT RH

main65631-52180iMAYH1#202312

65631ECLIP, REAR WHEEL HOUSE PLATE

main75867-33050×4iMAYH1#202312

65632DPLATE, REAR WHEEL HOUSE, FRONT LH

main65632-52180iMAYH1#202312

76085SPOILER SUB-ASSY, REAR

main76085-52934iMAYH1#202312

PAINT REQ.

76807PROTECTOR SUB-ASSY, REAR SPOILER, SIDE RH

main76807-52020iMAYH1#202312

76808PROTECTOR SUB-ASSY, REAR SPOILER, SIDE LH

main76808-52030iMAYH1#202312

76872PROTECTOR, REAR SPOILER, NO.1

main76872-10050×4iMAYH1#202312

76872APROTECTOR, REAR SPOILER, NO.1

main76872-52120×3iMAYH1#202312

76873BPROTECTOR, REAR SPOILER, NO.2

main76873-52130×4iMAYH1#202312

76874CPROTECTOR, REAR SPOILER, NO.3

main76874-52140iMAYH1#202312

76875PROTECTOR, REAR SPOILER, NO.4

main76875-52110iMAYH1#202312

76876APROTECTOR, REAR SPOILER, NO.10

main76876-52060×4iMAYH1#202312

76883APROTECTOR, REAR SOPILER, NO.7

main87268-52070iMAYH1#202312

76895PROTECTOR, REAR SPOILER, NO.5

main87268-52040iMAYH1#202312

76896PROTECTOR, REAR SPOILER, NO.6

main87268-52060iMAYH1#202312

LH

82711CCLAMP, WIRING HARNESS

main82711-12B10iMAYH1#202312

9010506333

main90105-06333

9011906871

main90119-06871

9015960477

main90159-60477

9016750063

main90167-50063

9018906006

main90189-06006

9046708235

main90467-08235

9046709206

main90467-09206

9046709232

main90467-09232

9095001959

main90950-01959

26 parts on this diagram · 1 diagram in section
