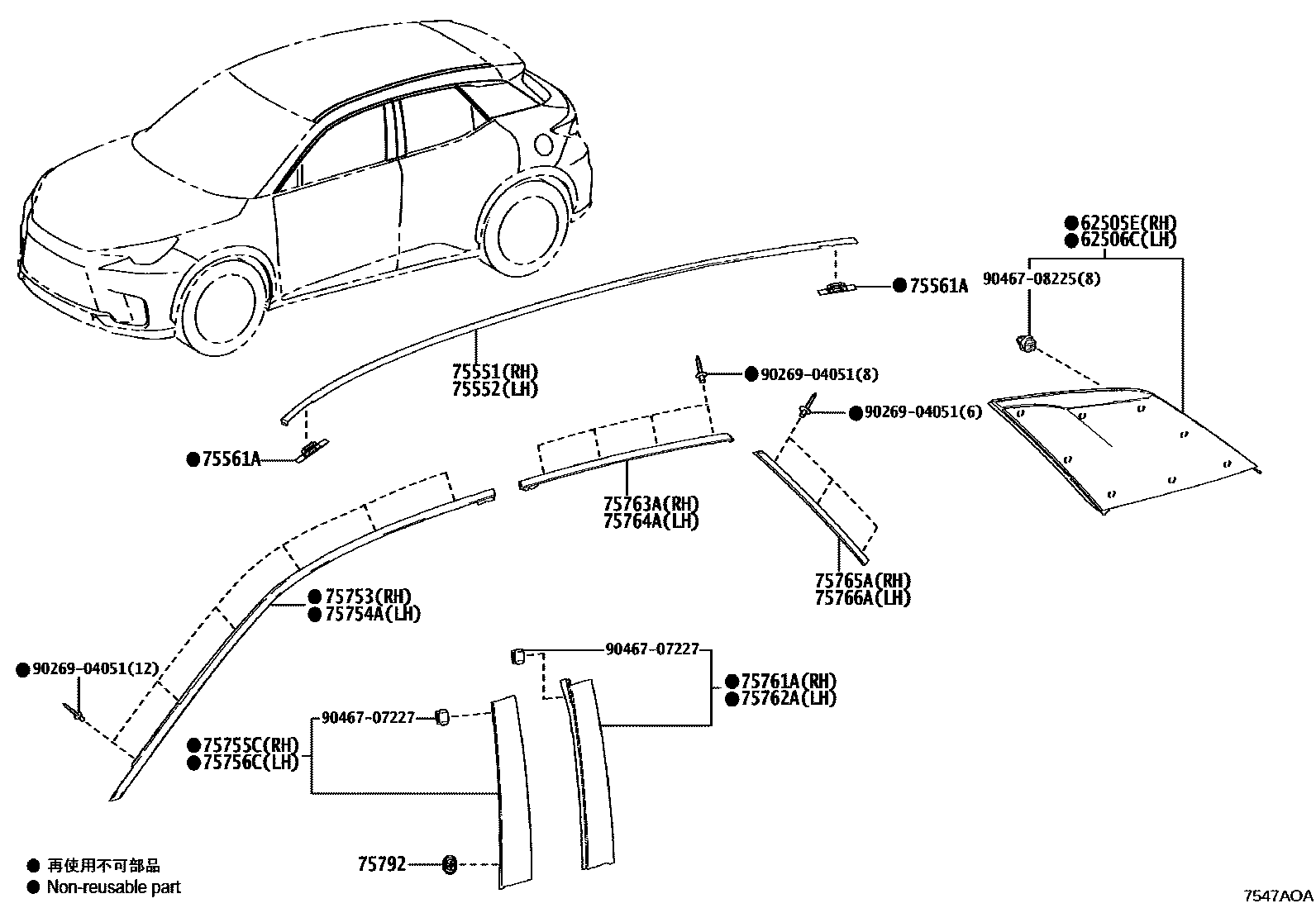

SIDE MOULDING
62505ECOVER SUB-ASSY, QUARTER PILLAR, RH
NO PAINT REQ.; NO PAINT REQ.,EXTERIOR PACKAGE
NO PAINT REQ.,EXTERIOR PACKAGE; NO PAINT REQ.,ORIGINAL EDITION
62506CCOVER SUB-ASSY, QUARTER PILLAR, LH
NO PAINT REQ.; NO PAINT REQ.,EXTERIOR PACKAGE
NO PAINT REQ.,EXTERIOR PACKAGE; NO PAINT REQ.,ORIGINAL EDITION
75551MOULDING, ROOF DRIP SIDE FINISH, RH
NO PAINT REQ.
75552MOULDING, ROOF DRIP SIDE FINISH, LH
NO PAINT REQ.
75561ACLIP, ROOF DRIP SIDE FINISH MOULDING
75753MOULDING, FRONT DOOR WINDOW FRAME, UPPER RH
NO PAINT REQ.
75754AMOULDING, FRONT DOOR WINDOW FRAME, UPPER LH
NO PAINT REQ.
75755CMOULDING, FRONT DOOR WINDOW FRAME, REAR RH
NO PAINT REQ.
75756CMOULDING, FRONT DOOR WINDOW FRAME, REAR LH
NO PAINT REQ.
75761AMOULDING, REAR DOOR WINDOW FRAME, FRONT RH
NO PAINT REQ.
75762AMOULDING, REAR DOOR WINDOW FRAME, FRONT LH
NO PAINT REQ.
75763AMOULDING, REAR DOOR WINDOW FRAME, UPPER RH
75764AMOULDING, REAR DOOR WINDOW FRAME, UPPER LH
75765AMOULDING, REAR DOOR WINDOW FRAME, REAR RH
75766AMOULDING, REAR DOOR WINDOW FRAME, REAR LH
75792CLIP, DOOR WINDOW FRAME MOULDING
9026904051
main90269-04051
9046707227
main90467-07227
9046708225
main90467-08225
19 parts on this diagram · 2 diagrams in section
