INSIDE TRIM BOARD & DOOR OPENING TRIM MOULDING

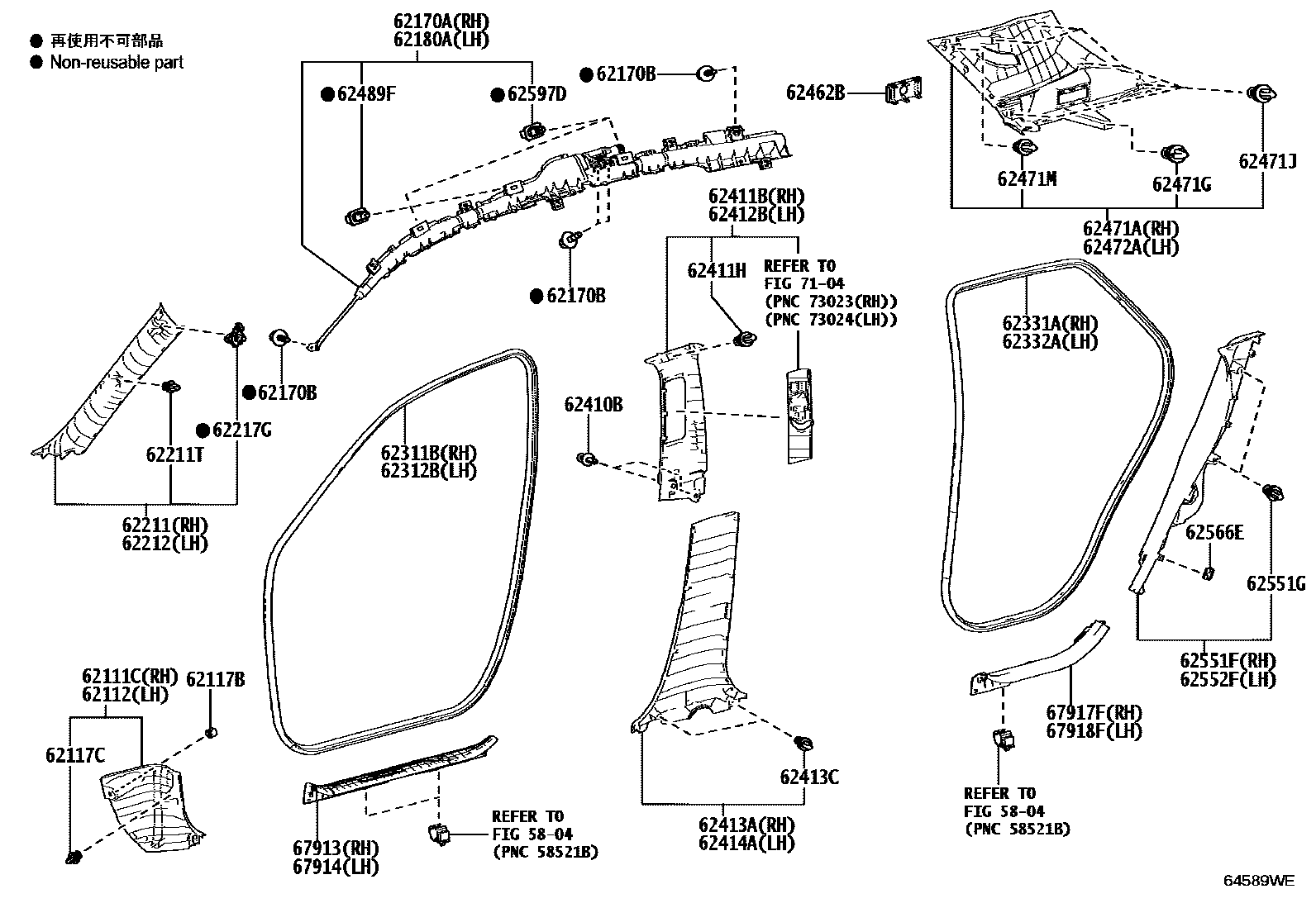

Parts diagram
5804
62111CBOARD, COWL SIDE TRIM, RH
main62111-52300-C0i202312
BLACK,TRIM0#,2#,3#,4#,8#
main62111-52310-C0i202312
BLACK,TRIM0#,2#,3#,4#,8#
62112BOARD, COWL SIDE TRIM, LH
main62112-52510-C0i202312
BLACK,TRIM0#,2#,3#,4#,8#
main62112-52530-C0i202312
BLACK,TRIM0#,2#,3#,4#,8#
62117BCLIP, NO.1(FOR COWL SIDE TRIM)
main90467-06147i202312
62117CCLIP, NO.2(FOR COWL SIDE TRIM)
main90467-10161i202312
62170AAIRBAG ASSY, CURTAIN SHIELD, RH
main62170-52230i202312
62170BBOLT, W/WASHER
main91673-80616i202312
62180AAIRBAG ASSY, CURTAIN SHIELD, LH
main62180-52230i202312
62211GARNISH, FRONT PILLAR, RH
main62211-52480-C0i202312
BLACK,TRIM0#,2#,3#,4#,8#
62211TCLIP(FOR FRONT PILLAR GARNISH)
main90467-10161i202312
62212GARNISH, FRONT PILLAR, LH
main62212-52500-C0i202312
BLACK,TRIM0#,2#,3#,4#,8#
62217GCLIP, FRONT PILLAR GARNISH
main62217-42050i202312
62311BWEATHERSTRIP, FRONT DOOR OPENING TRIM, RH
main62311-52290i202312-202402
sub62311-52291
main62311-52291i202403
62312BWEATHERSTRIP, FRONT DOOR OPENING TRIM, LH
main62312-52250i202312-202402
sub62312-52251
main62312-52251i202403
62331AWEATHERSTRIP, REAR DOOR OPENING TRIM, RH
main62331-52160i202312-202402
sub62331-52161
main62331-52161i202403
62332AWEATHERSTRIP, REAR DOOR OPENING TRIM, LH
main62332-52180i202312-202402
sub62332-52181
main62332-52181i202403
62410BCLIP
main90467-10216i202312
62411BGARNISH, CENTER PILLAR, UPPER RH
main62411-52280-C0i202312
BLACK,TRIM0#,2#,3#,4#,8#
62411HCLIP
main90467-10167i202312
62412BGARNISH, CENTER PILLAR, UPPER LH
main62412-52280-C0i202312
BLACK,TRIM0#,2#,3#,4#,8#
62413AGARNISH, CENTER PILLAR, LOWER RH
main62413-52220-C0i202312
BLACK,TRIM0#,2#,3#,4#,8#
62413CCLIP (FOR CENTER LOWER GARNISH)
main90467-10161i202312
62414AGARNISH, CENTER PILLAR, LOWER LH
main62414-52240-C0i202312
BLACK,TRIM0#,2#,3#,4#,8#
62462BCOVER, ROOF SIDE INNER GARNISH, LH
main64714-52260-C0i202312
BLACK,TRIM0#,2#,3#,4#,8#
62471AGARNISH, ROOF SIDE, INNER RH
main62471-52490-C0i202312
BLACK,TRIM0#,2#,3#,4#,8#
62471GCLIP, ROOF SIDE INNER GARNISH
main90467-09245i202312
62471JCLIP (FOR ROOF SIDE GARNISH)
main90467-10161i202312
62471MCLIP
main90467-10167i202312
62472AGARNISH, ROOF SIDE, INNER LH
main62472-52570-C0i202312
BLACK,TRIM0#,2#,3#,4#,8#
62489FCLIP, ROOF SIDE INNER GARNISH
main62489-28010i202312
62551FGARNISH, REAR SEAT SIDE, RH
main62551-52290-C0i202312
BLACK,TRIM0#,2#,3#,4#,8#
62551GCLIP
main90467-09240i202312
62552FGARNISH, REAR SEAT SIDE, LH
main62552-52130-C0i202312
BLACK,TRIM0#,2#,3#,4#,8#
62566ECLAMP, REAR SEAT SIDE GARNISH
main67923-52240i202312
62597DCLIP
main90467-18017i202312
67913PLATE, FRONT DOOR SCUFF, RH
main67913-52280-C0i202312
BLACK,TRIM0#,2#,3#,4#,8#
main67913-52290-C0i202312
BLACK,TRIM0#,2#,3#,4#,8#
main67913-52290-C0i202312
"ELEGANT",BLACK,TRIM0#,2#,3#,4#,8#
main67913-52290-C0i202312
"ACTIVE",BLACK,TRIM0#,2#,3#,4#,8#
main67913-52290-C0i202312
"RELAX",BLACK,TRIM0#,2#,3#,4#,8#
main67913-52290-C0i202312
"COOL",BLACK,TRIM0#,2#,3#,4#,8#
67914PLATE, FRONT DOOR SCUFF, LH
main67914-52380-C0i202312
BLACK,TRIM0#,2#,3#,4#,8#
main67914-52390-C0i202312
BLACK,TRIM0#,2#,3#,4#,8#
main67914-52390-C0i202312
"ELEGANT",BLACK,TRIM0#,2#,3#,4#,8#
main67914-52390-C0i202312
"ACTIVE",BLACK,TRIM0#,2#,3#,4#,8#
main67914-52390-C0i202312
"RELAX",BLACK,TRIM0#,2#,3#,4#,8#
main67914-52390-C0i202312
"COOL",BLACK,TRIM0#,2#,3#,4#,8#
67917FPLATE, REAR DOOR SCUFF, INSIDE RH
main67917-K0020-C0i202312
BLACK,TRIM0#,2#,3#,4#,8#
67918FPLATE, REAR DOOR SCUFF, INSIDE LH
main67918-K0020-C0i202312
BLACK,TRIM0#,2#,3#,4#,8#
7104

40 parts on this diagram · 1 diagram in section
