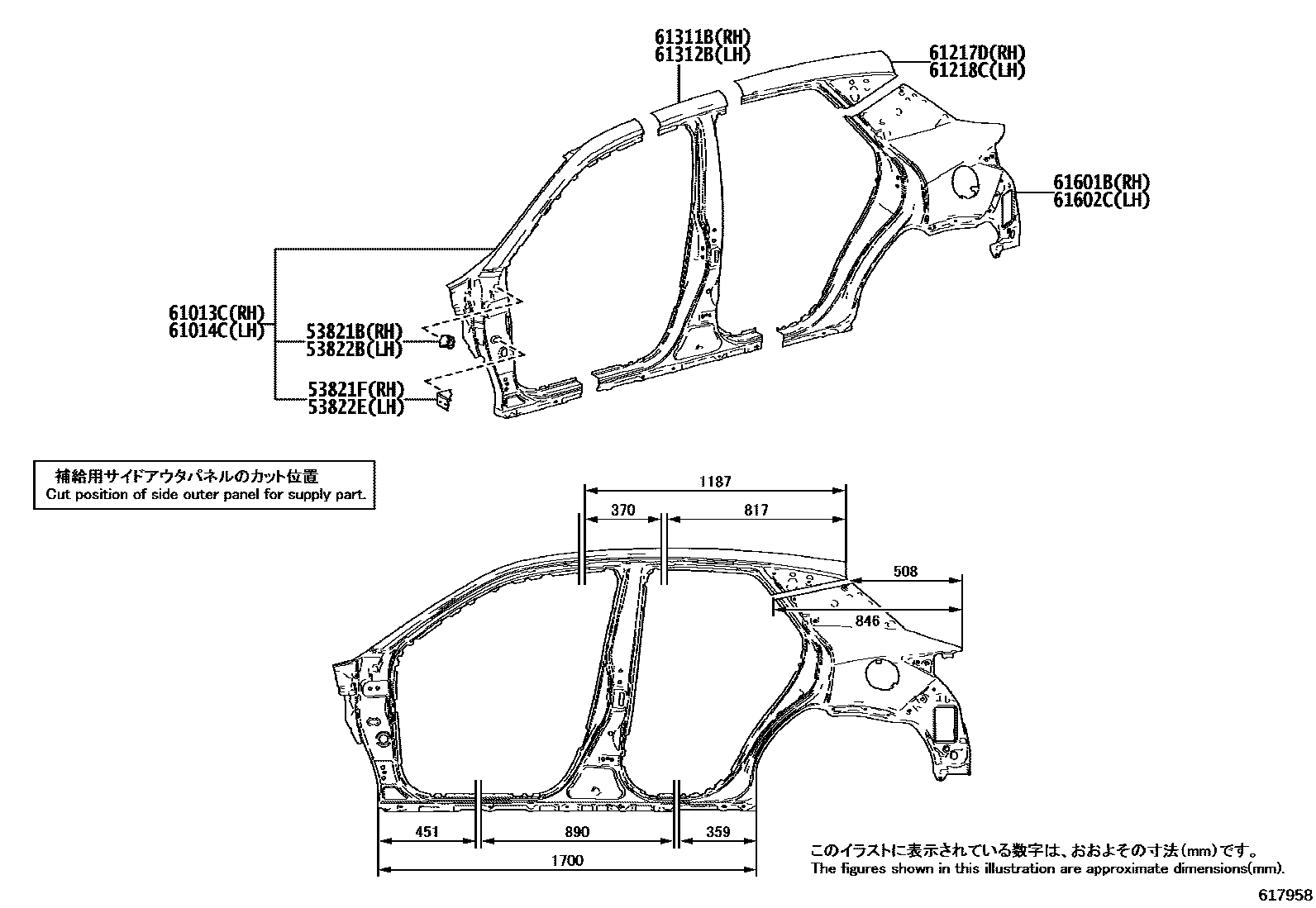

SIDE MEMBER

0001 1OUTER PANEL 0002 1INNER PANEL, RH 0003 1INNER PANEL, LH

53821BBRACKET, FRONT FENDER, REAR RH

main53821-48030iMAYH1#202312

53821FBRACKET, FRONT FENDER, REAR NO.2 RH

main53821-52050iMAYH1#202312

53822BBRACKET, FRONT FENDER, REAR LH

main53821-48030iMAYH1#202312

53822EBRACKET, FRONT FENDER, REAR NO.2 LH

main53821-52050iMAYH1#202312

61013CPANEL SUB-ASSY, SIDE, INNER RH

main61013-52130iMAYH1#202312

61014CPANEL SUB-ASSY, SIDE, INNER LH

main61014-52120iMAYH1#202312

61217DRAIL, ROOF SIDE, OUTER NO.4 RH

main61217-52060iMAYH1#202312

61218CRAIL, ROOF SIDE, OUTER NO.4 LH

main61218-52060iMAYH1#202312

61311BPILLAR, CENTER BODY, OUTER RH

main61311-52160iMAYH1#202312

61312BPILLAR, CENTER BODY, OUTER LH

main61312-52150iMAYH1#202312

61601BPANEL SUB-ASSY, QUARTER, RH

main61601-52780iMAYH1#202312

61602CPANEL SUB-ASSY, QUARTER, LH

main61602-52A20iMAYH1#202312

12 parts on this diagram · 3 diagrams in section
