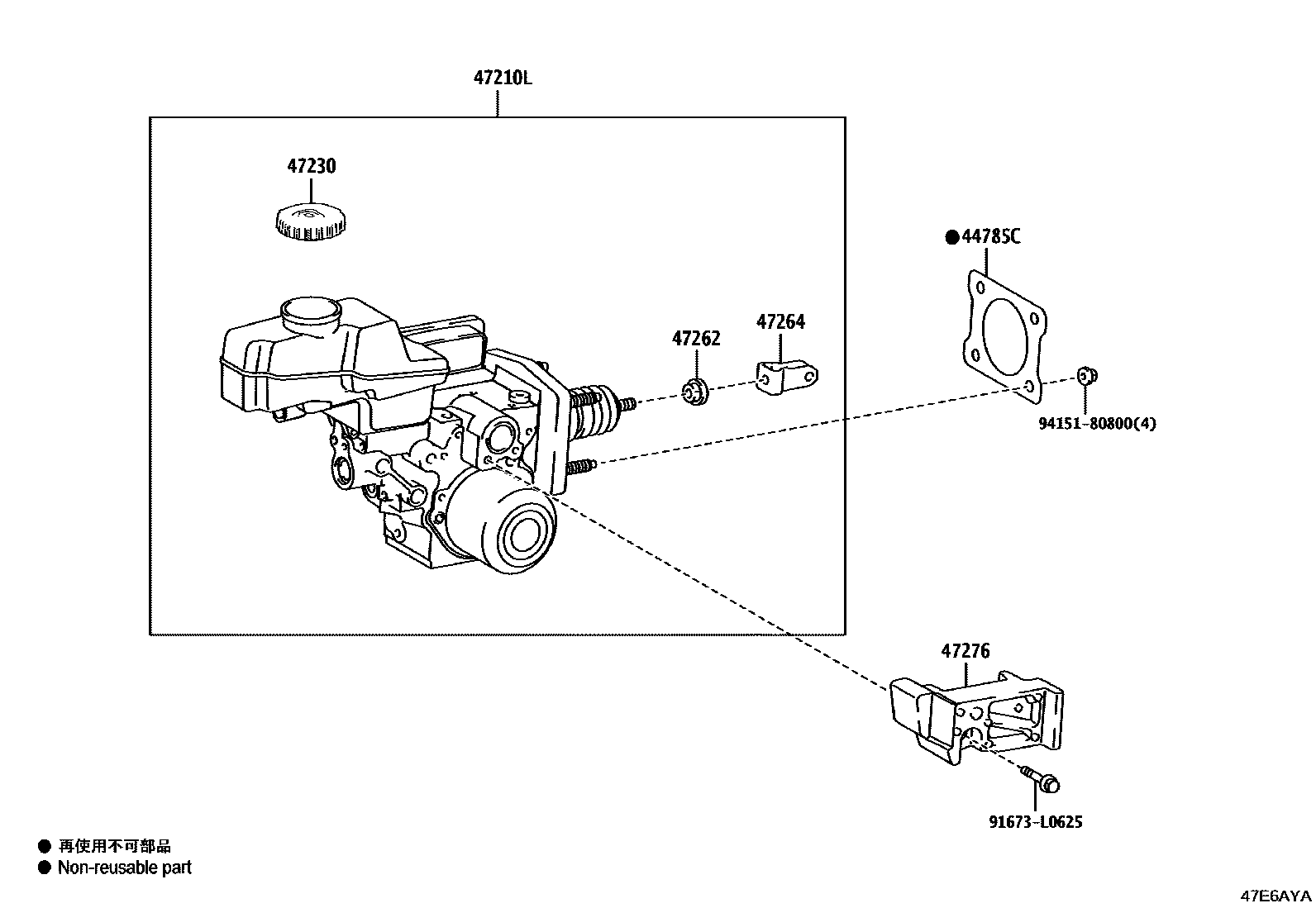

BRAKE MASTER CYLINDER

0001 1 0002 1

44785CGASKET, BRAKE BOOSTER

main44785-12040iMAYH1#202312

47210LBRAKE BOOSTER ASSY, W/MASTER CYLINDER

main47050-52760iMAYH1#..LHD202312

*614

main47050-52770iMAYH1#..RHD202312

*614

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-47090iMAYH1#202312

47262NUT, MASTER CYLINDER PUSH ROD

main90179-10065iMAYH1#202312

47264CLEVIS, MASTER CYLINDER PUSH ROD

main47264-12060iMAYH1#202312

47276BRACKET, BRAKE MASTER CYLINDER

main47276-52030iMAYH1#..RHD..(ARL,EUR)202312

91673L0625

main91673-L0625

9415180800

main94151-80800

8 parts on this diagram · 2 diagrams in section
