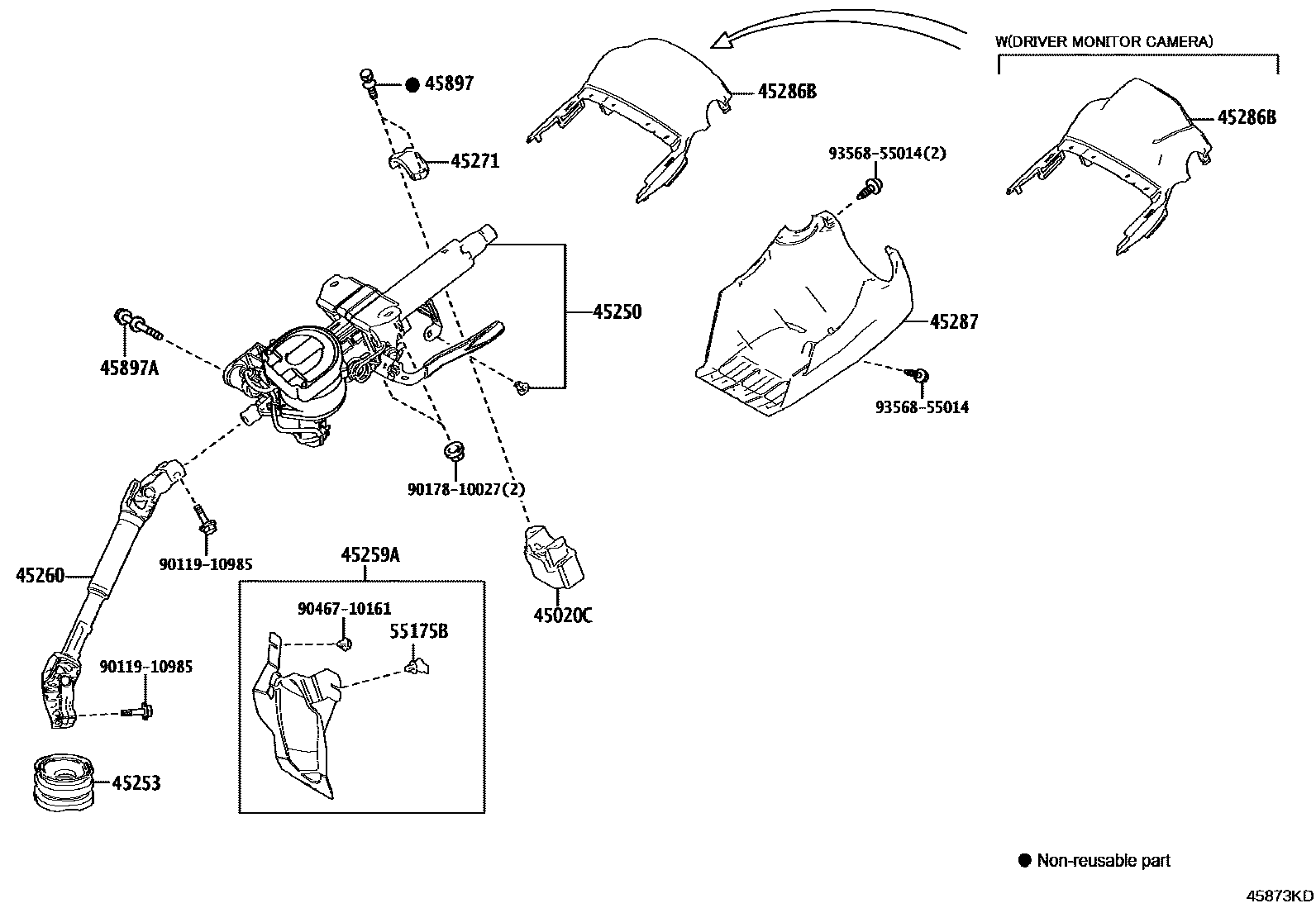

STEERING COLUMN & SHAFT

0001 1 0002 1

45020CACTUATOR ASSY, STEERING LOCK(W/ECU)

main45020-42280iMAYH1#..RHD..EUR202312

45250COLUMN ASSY, STEERING

main45250-52F10iMAYH1#..LHD202312-202506

*614

main45250-52F20iMAYH1#..RHD202312-202506

*614

45253COVER, STEERING COLUMN HOLE

main45253-K0010iMAYH1#202312

45259ASHEET, COLUMN HOLE COVER SILENCER

main45259-52080iMAYH1#..LHD202312

main45259-K0010iMAYH1#..RHD202312

45260SHAFT ASSY, STEERING INTERMEDIATE, NO.2

main45260-52350iMAYH1#..LHD202312

main45260-52360iMAYH1#..RHD202312

45271CLAMP, STEERING COLUMN, UPPER

main45271-52030iMAYH1#..RHD..EUR202312

45286BCOVER, STEERING COLUMN, UPR

main45286-52250-C0iMAYH1#..GEN,TWN202312

BLACK,TRIM0#,2#,3#,4#

main45286-52260-C0supersedes 45286-52250-C0iMAYH1#..ARL202312

BLACK,TRIM0#,2#,3#,4#

45287COVER, STEERING COLUMN, LWR

main45024-52170-C0iMAYH1#..GEN,TWN202312

BLACK,TRIM0#,2#,3#,4#

main45024-52180-C0supersedes 45024-52170-C0iMAYH1#..ARL202312

BLACK,TRIM0#,2#,3#,4#

45897BOLT, STEERING LOCK SET

main45897-12020×2iMAYH1#..RHD..EUR202312

45897ABOLT, TILT STEERING PAWL SET

main90119-10A34iMAYH1#202312

55175BCLAMP, STEERING COLUMN SUPPORT, NO.1

main45256-52010iMAYH1#..RHD202312

9011910985

main90119-10985

9017810027

main90178-10027

9046710161

main90467-10161

9356855014

main93568-55014

15 parts on this diagram · 2 diagrams in section
