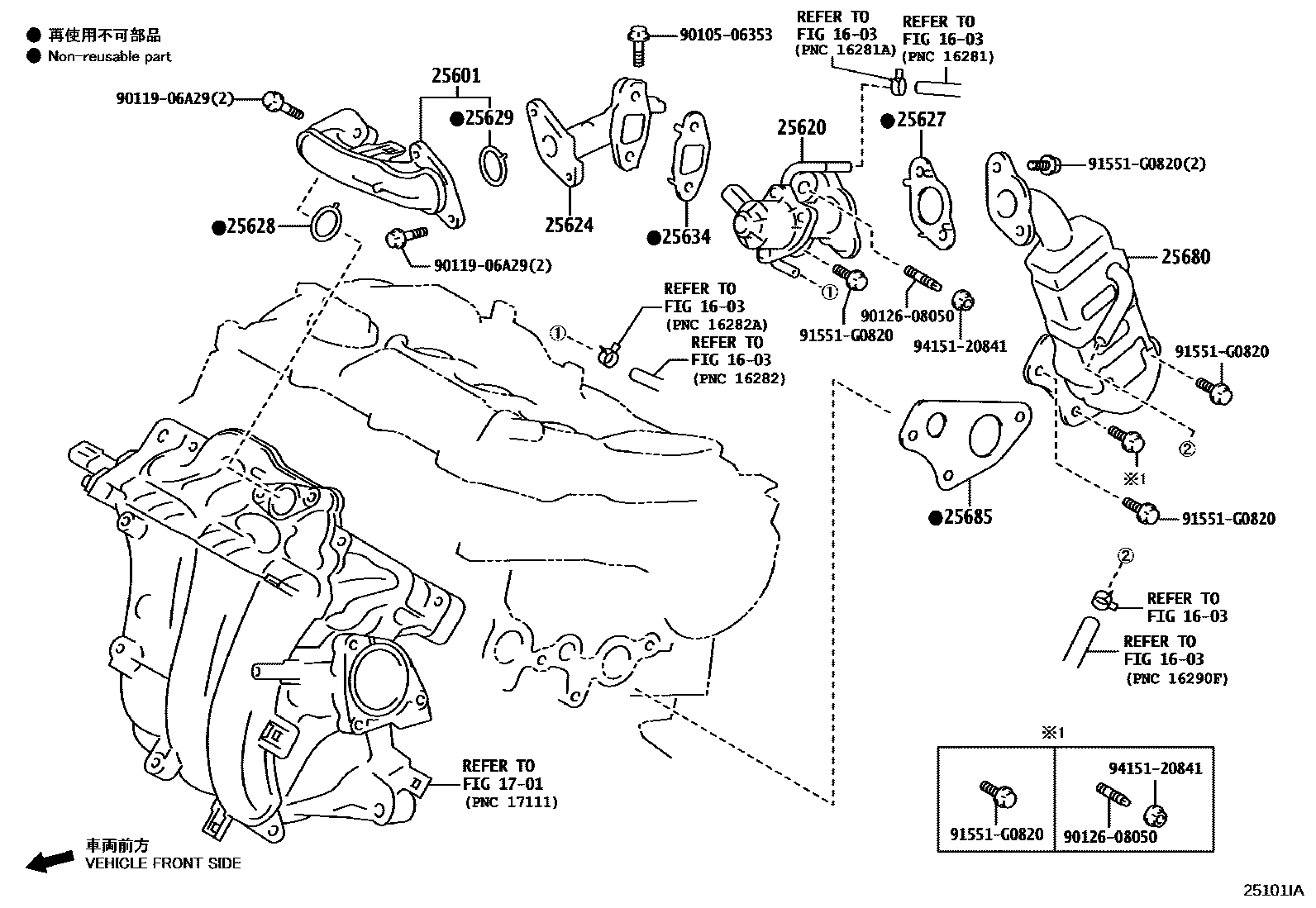

EXHAUST GAS RECIRCULATION SYSTEM

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

1701MANIFOLD

→ Go to FIG 17-01

25601PIPE SUB-ASSY, EGR, NO.1

main25601-15050iM15AFXE..MAYH1#202312

25620VALVE ASSY, EGR

main25620-15350iM15AFXE..MAYH1#..ARL,GEN,TUR,TWN202312

main25620-15360iM15AFXE..MAYH1#..EUR202312

25624ADAPTER, EGR VALVE

main25624-15010iM15AFXE..MAYH1#202312

25627GASKET, EGR VALVE

main25627-15010iM15AFXE..MAYH1#202312

25628GASKET, EGR INLET

main25628-25010iM15AFXE..MAYH1#202312

(J)

main25628-F2040iM15AFXE..MAYH1#202312

(L)

25629GASKET, EGR VALVE ADAPTER

main25628-25010iM15AFXE..MAYH1#202312

(J)

main25628-F2040iM15AFXE..MAYH1#202312

(L)

25634GASKET, EGR PIPE

main25634-15010iM15AFXE..MAYH1#202312

25680COOLER ASSY, EGR

main25680-15010iM15AFXE..MAYH1#..ARL,GEN,TUR,TWN202312

main25680-15030iM15AFXE..MAYH1#..EUR202312

25685GASKET, EGR COOLER, NO.1

main25685-15010iM15AFXE..MAYH1#202312

9010506353

main90105-06353

9011906A29

main90119-06A29

9012608050

main90126-08050

91551G0820

main91551-G0820

9415120841

main94151-20841

16 parts on this diagram · 1 diagram in section
