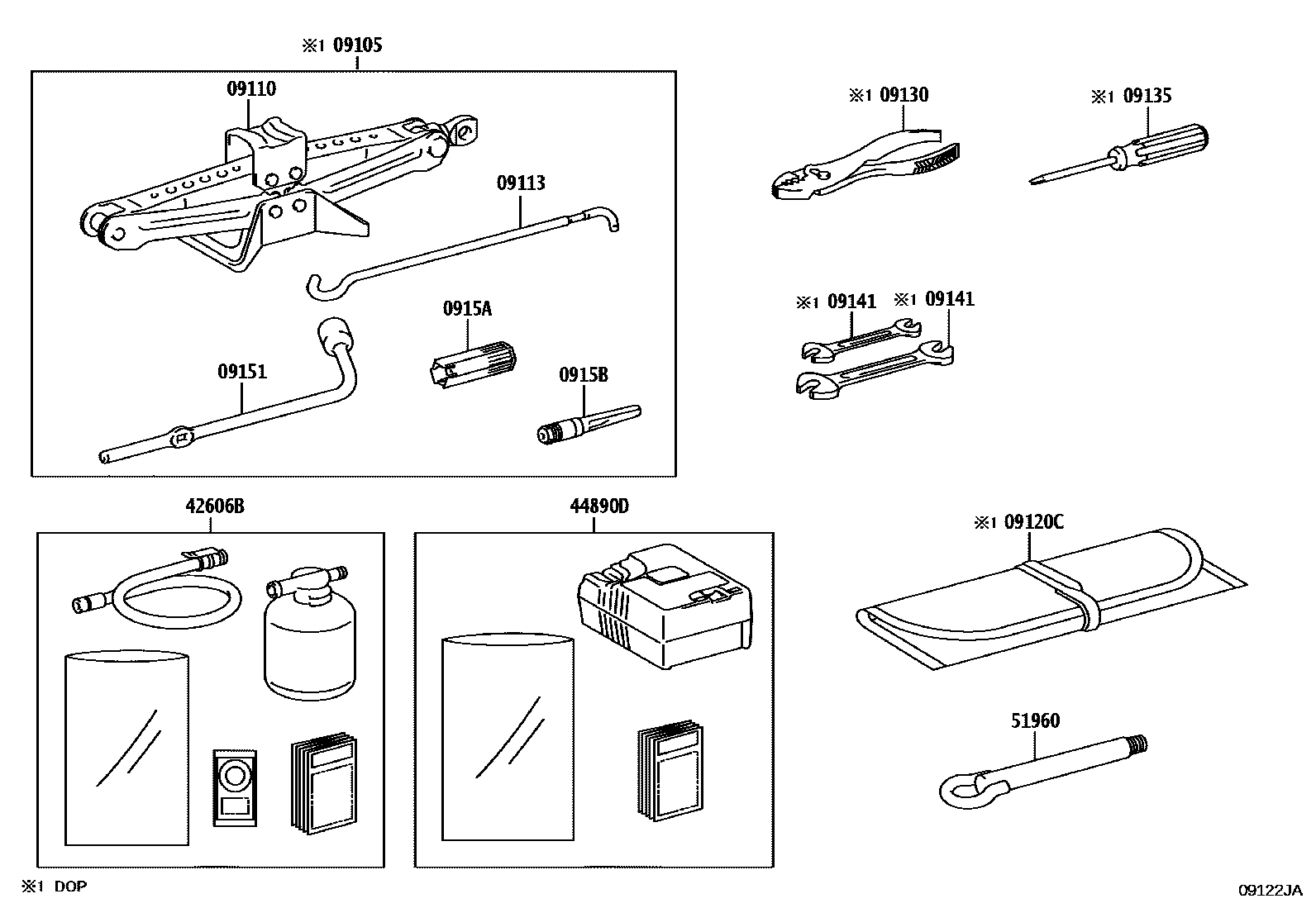

STANDARD TOOL

09105BOX SET, JACK

main09105-52050iMAYH10..ARL202312

main09105-52070iMAYH10..EUR,GEN,TUR202312

main09105-52090iMAYH15..EUR,GEN202312

main09105-52100iMAYH15..ARL202312

09110JACK ASSY

main09110-52050iMAYH10..ARL202312

main09110-52100iMAYH15..ARL202312

main09111-16041iMAYH15..EUR,GEN202312

main09111-47051iMAYH10..EUR,GEN,TUR202312

09113HANDLE, JACK

main09113-42030iMAYH1#..ARL,EUR,GEN,TUR202312

09120CBAG,TOOL, NO.2

09130PLIERS

main99913-11500

09135DRIVER, SCREW

main99915-10700

09141SPANNER

main99914-11214

main99914-10810

09151WRENCH, HUB BOLT BOX

main09151-78010iMAYH1#..ARL,EUR,GEN,TUR202312

0915ASOCKET, HUB BOLT TEMPORARY SETTING

main0915A-53010iMAYH1#..ARL,EUR,GEN,TUR202312

0915BPIN, WHEEL GUIDE

main0915B-53010iMAYH1#..ARL,EUR,GEN,TUR202312

42606BREPAIR KIT, TUBELESS TIRE

main42606-42080iMAYH15;MAYH10..RHD;MAYH10..LHD..(EUR,TWN)202312

INDONESIA SPEC

main42606-42080iMAYH15;MAYH10..RHD;MAYH10..LHD..(EUR,TWN)202312

UKRAINE SPEC

44890DCOMPRESSOR ASSY, AIR

main44890-42050iMAYH15;MAYH10..RHD;MAYH10..LHD..(EUR,TWN)202312

51960HOOK ASSY, FRONT

main51960-16030iMAYH1#202312

13 parts on this diagram · 1 diagram in section
