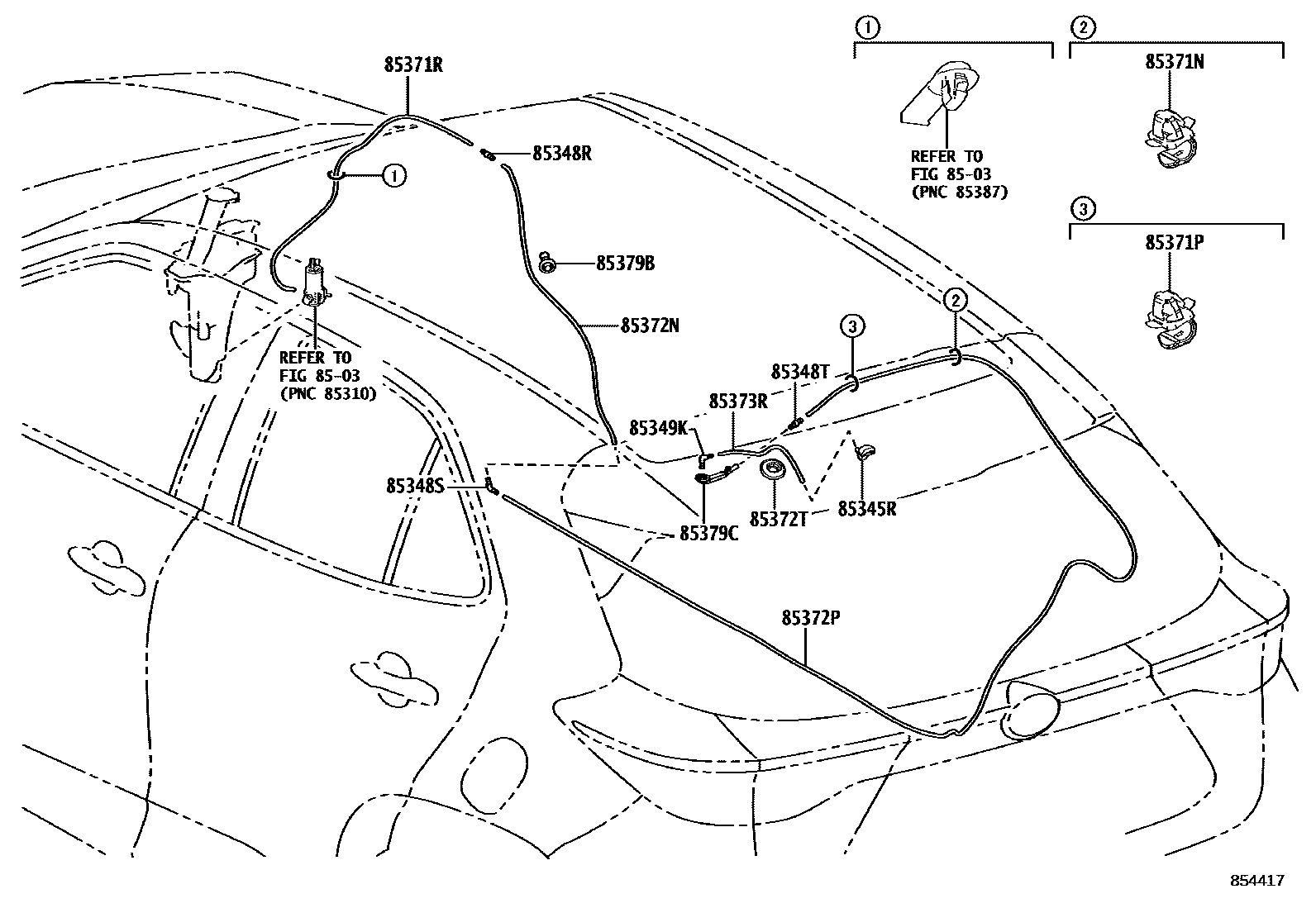

REAR WASHER

8503WINDSHIELD WASHER

→ Go to FIG 85-03

85345RNOZZLE, REAR WASHER

main85391-52200iMXPB10,MXPJ1#202008-202401

85348RJOINT, REAR WASHER HOSE, NO.1

main85349-89122iMXPB10,MXPJ1#202008-202401

85348SJOINT, REAR WASHER ELBOW, NO.1

main85355-20200iMXPB10,MXPJ1#202008-202401

85348TJOINT, REAR WASHER HOSE, NO.2

main85349-89122iMXPB10,MXPJ1#202008-202401

85349KJOINT, REAR WASHER ELBOW, NO.2

main85355-20200iMXPB10,MXPJ1#202008-202401

85371NCLAMP, REAR WASHER HOSE

main85371-12040iMXPB10,MXPJ1#202008-202401

85371PCLAMP, REAR WASHER HOSE, NO.2

main85371-12040iMXPB10,MXPJ1#202008-202401

85371RHOSE, REAR WASHER (FROM MOTOR TO JOINT)

main90099-62226iMXPB10,MXPJ1#202008-202401

L=820

85372NHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.1

main90446-07001iMXPB10,MXPJ1#202008-202401

L=1800(*H,L=670)

85372PHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.2

main90099-59403iMXPB10,MXPJ1#202008-202401

L=3545

85372TGROMMET, WASHER

main85372-20020iMXPB10,MXPJ1#202008-202401

main85373-52030iMXPJ1#202407

85373RHOSE, REAR WASHER (FROM JOINT TO NOZZLE)

main90099-33080iMXPB10,MXPJ1#202008-202401

L=1450(*H,L=240)

85379BGROMMET, WASHER, A

main85379-12850iMXPB10,MXPJ1#202008-202401

85379CGROMMET, REAR WASHER HOSE NO.1

main85372-20040iMXPB10,MXPJ1#202008-202401

15 parts on this diagram · 1 diagram in section
