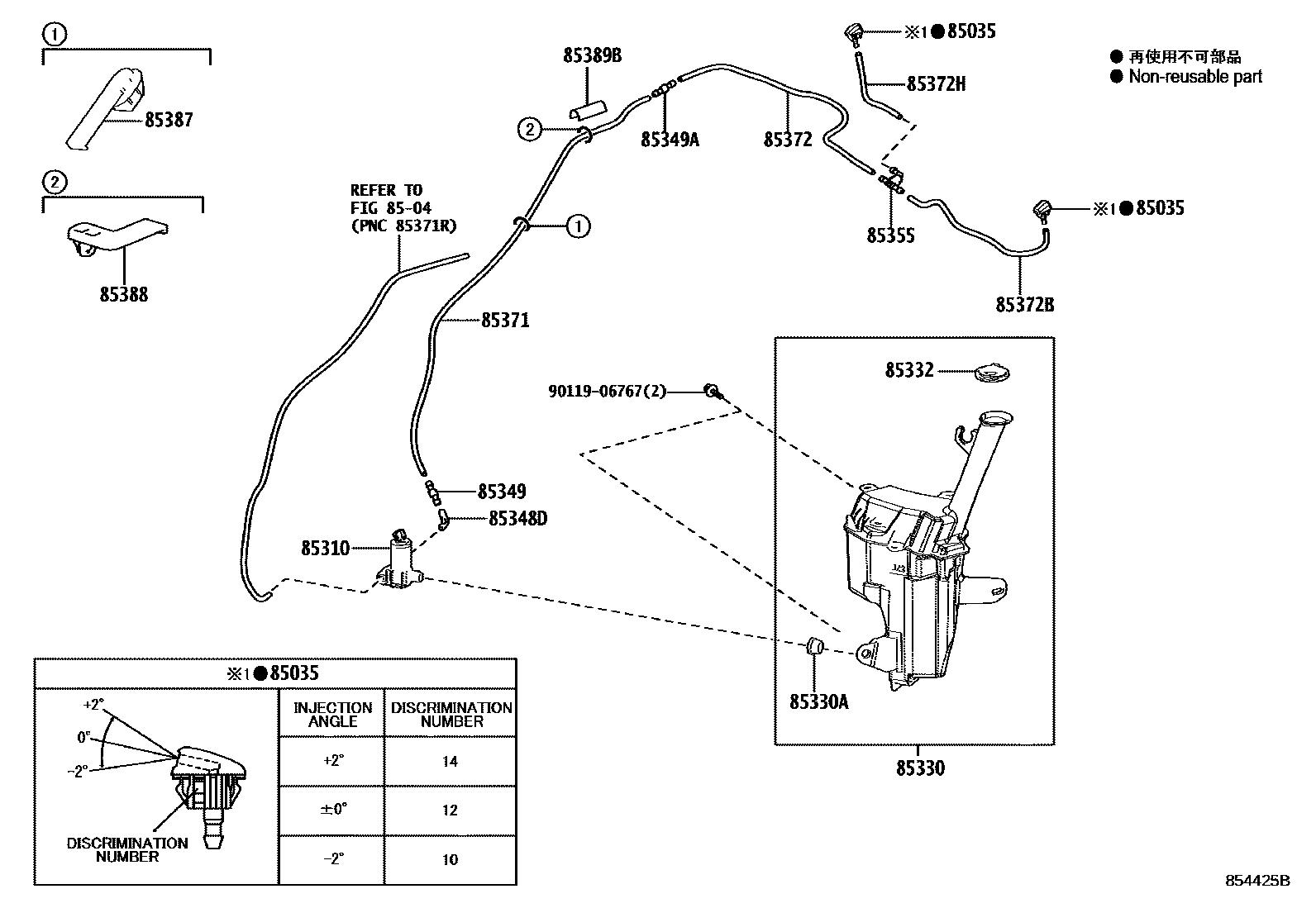

WINDSHIELD WASHER

85035NOZZLE SUB-ASSY, WASHER

main85381-52430×2iMXPJ1#202401

ANGLE 0

main85381-52440×2iMXPJ1#202401

ANGLE -2

main85381-52450×2iMXPB10,MXPJ1#202008-202401

ANGLE +2

8504REAR WASHER

→ Go to FIG 85-04

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85330-47090iMXPB10,MXPJ1#202008-202102

main85330-47091iMXPJ1#202401

85330JAR ASSY, WINDSHIELD WASHER

main85315-K0030iMXPB10,MXPJ1#202008-202401

85330ABUSH, WINDSHIELD WASHER JAR

main90099-32089iMXPB10,MXPJ1#202008-202401

85332CAP, WINDSHIELD WASHER JAR

main85316-16070iMXPB10,MXPJ1#202008-202401

85348DJOINT, WINDSHIELD WASHER ELBOW, NO.1

main85336-12230iMXPB10,MXPJ1#202008-202401

85349JOINT, WINDSHIELD WASHER HOSE, NO.1

main85349-89122iMXPJ1#202401

85349AJOINT, WINDSHIELD WASHER HOSE, NO.2

main85349-89122iMXPB10,MXPJ1#202008-202401

85355VALVE, WINDSHIELD WASHER HOSE

main85321-28020iMXPB10,MXPJ1#202008-202401

85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main90099-62227iMXPB10,MXPJ1#202008-202401

L=325

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main90099-33080iMXPB10,MXPJ1#202008-202401

L=1450(*H,L=680)

85372BHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2

main90099-33299iMXPB10,MXPJ1#202008-202401

L=1000(*H,L=370)

85372HHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.3

main90099-33080iMXPB10,MXPJ1#202008-202401

L=1450(*H,L=180)

85387CLAMP NO.1 (FOR WINDSEIELD WASHER)

main82711-52090iMXPB10,MXPJ1#202008-202401

85388CLAMP NO.2 (FOR WINDSEIELD WASHER)

main82711-1E150iMXPB10,MXPJ1#202008-202401

85389BPROTECTOR, WINDSHIELD WASHER

main85389-12850iMXPB10,MXPJ1#202008-202401

9011906767

main90119-06767

18 parts on this diagram · 1 diagram in section
