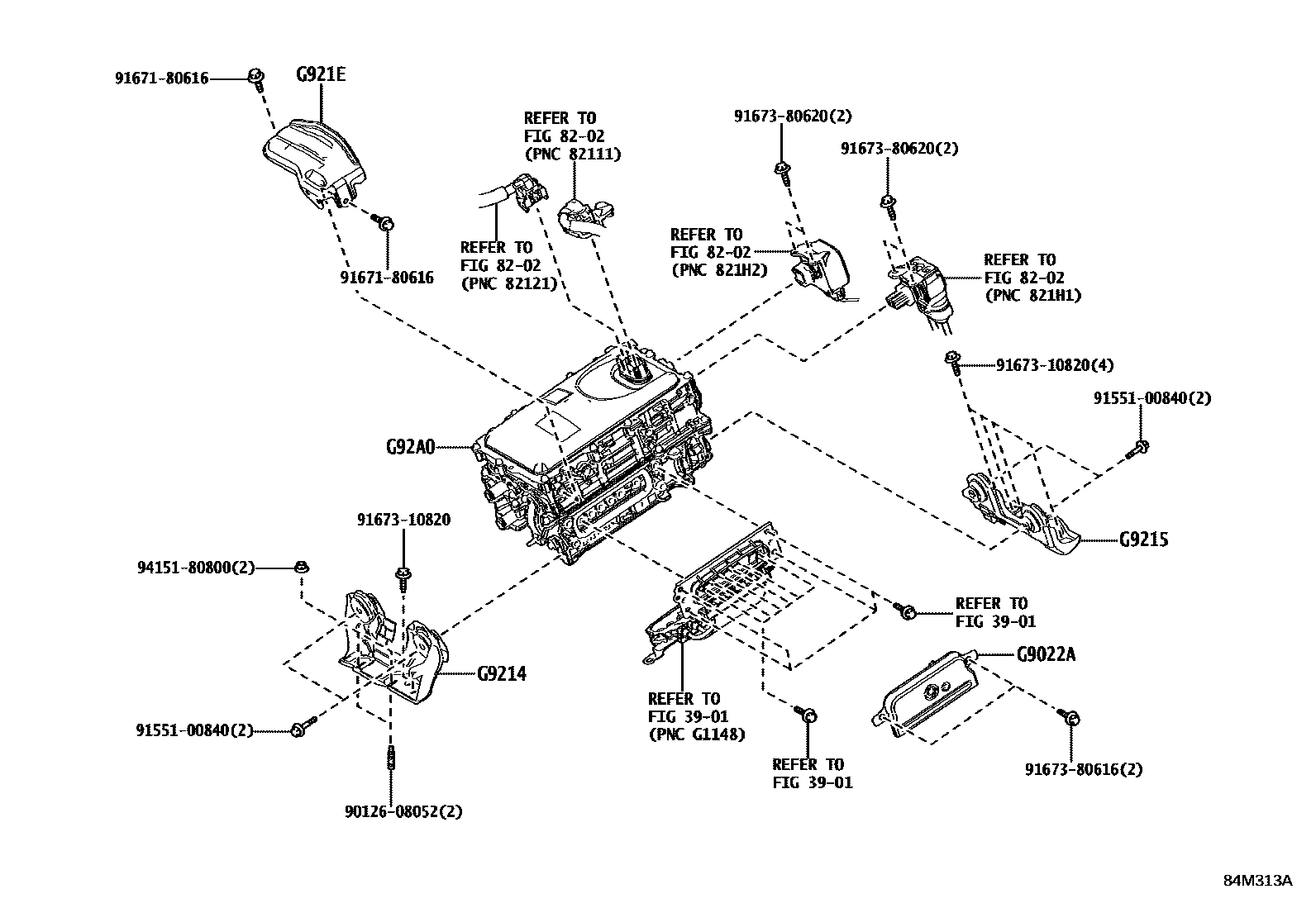

HEV INVERTER

0001 1FRONT 0002 1CONVERTER KIT 0003 1CONVERTER KIT 0004 1REAR

3901TRANSAXLE ASSY(HEV OR BEV OR FCEV)

→ Go to FIG 39-01

8202WIRING & CLAMP

→ Go to FIG 82-02

G9022ACOVER SUB-ASSY, INVERTER, UPPER

mainG902247050iMXPJ1#202008-202401

G9214BRACKET, INVERTER, NO.1

mainG9214K0010iMXPJ1#202008-202401

G9215BRACKET, INVERTER, NO.2

mainG9215K0010iMXPJ1#202008-202401

G921EPROTECTOR, INVERTER

mainG921EK0010iMXPJ1#202401

G92A0INVERTER ASSY, HYBRID MOTOR CONTROL

mainG92A052150iMXPJ10202111-202301

P/N LABEL=G920052***

mainG92A052160iMXPJ15202111-202301

P/N LABEL=G920052***

mainG92A052170iMXPJ10202401

mainG92A052180iMXPJ15202301-202307

mainG92A052181iMXPJ15202308-202401

mainG92A0K2010iMXPJ10202008-202103

mainG92A0K2011iMXPJ10202111-202301

P/N LABEL=G9200K2***

mainG92A0K2020iMXPJ15202008-202103

mainG92A0K2021iMXPJ15202104-202111

9012608052

main90126-08052

9155100840

main91551-00840

9167180616

main91671-80616

9167310820

main91673-10820

9167380616

main91673-80616

9167380620

main91673-80620

9415180800

main94151-80800

14 parts on this diagram · 4 diagrams in section
