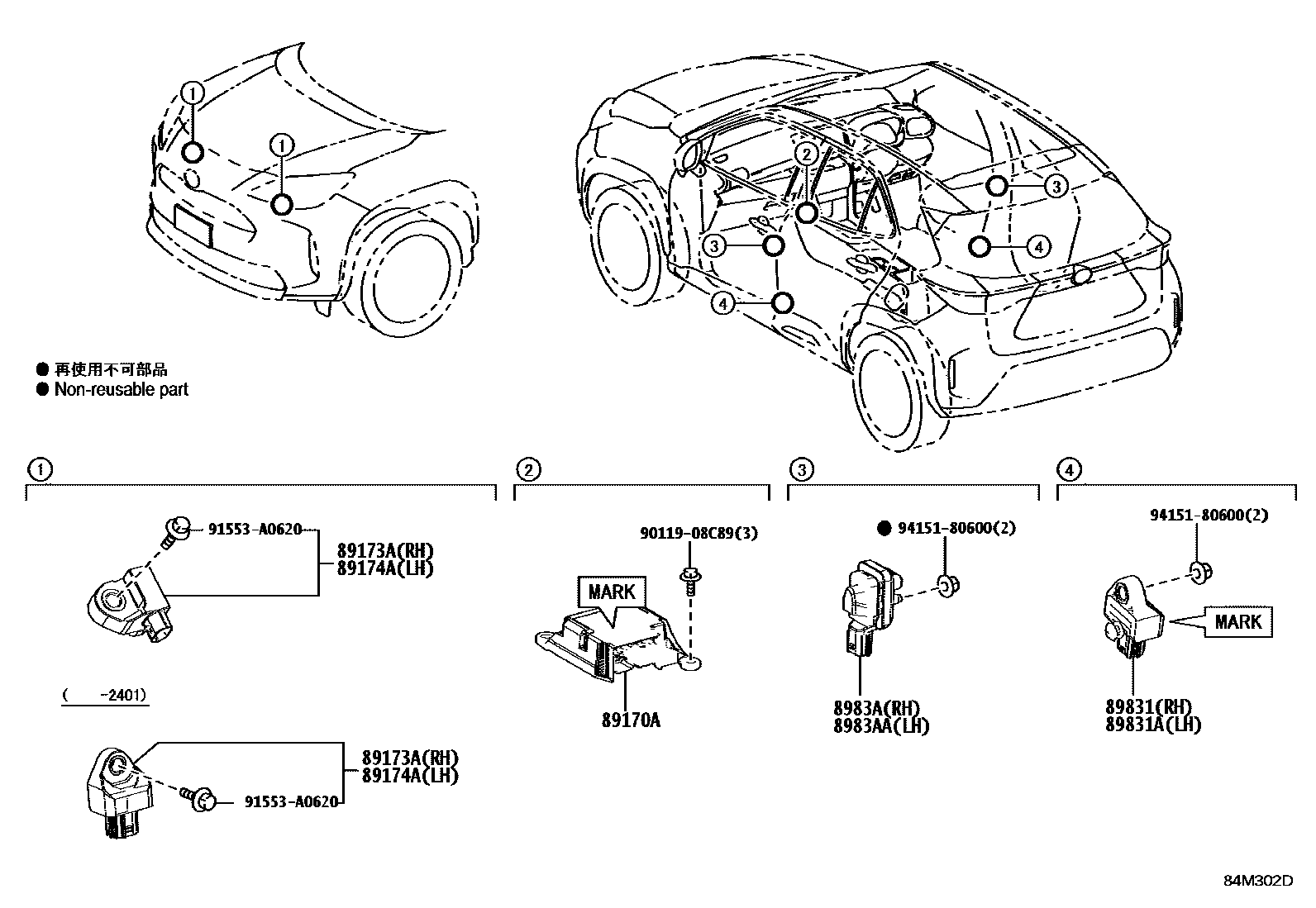

AIR BAG

89170ACOMPUTER ASSY, AIRBAG

main89170-52P70iMXPB10,MXPJ1#202008-202304

*614,MARK89170-52P70

main89170-52T70iMXPB10,MXPJ1#202304-202401

*614,MARK89170-52T70

main89170-52U40iMXPJ1#202401

*614

89173ASENSOR, AIRBAG, FRONT RH

main89173-19515iMXPB10,MXPJ1#202304-202401

main89173-59335iMXPB10,MXPJ1#202008-202304

main89173-59415iMXPJ1#202401

89174ASENSOR, AIRBAG, FRONT LH

main89173-19515iMXPB10,MXPJ1#202304-202401

main89173-59335iMXPB10,MXPJ1#202008-202304

main89173-59415iMXPJ1#202401

89831SENSOR, SIDE AIRBAG, RH, NO.1

main89831-52120iMXPB10,MXPJ1#202008-202304

MARK 89831-52120

main89831-52180iMXPB10,MXPJ1#202304-202401

MARK 89831-52180

89831ASENSOR, SIDE AIRBAG, LH, NO.1

main89831-52120iMXPB10,MXPJ1#202008-202304

MARK 89831-52120

main89831-52180iMXPB10,MXPJ1#202304-202401

MARK 89831-52180

8983ASENSOR, SIDE AIRBAG PRESSURE, RH

main8983A-12030iMXPJ1#202401

main8983A-52010iMXPB10,MXPJ1#202008-202101

main8983A-52011iMXPB10,MXPJ1#202102-202401

8983AASENSOR, SIDE AIRBAG PRESSURE, LH

main8983A-12030iMXPJ1#202401

main8983A-52010iMXPB10,MXPJ1#202008-202101

main8983A-52011iMXPB10,MXPJ1#202102-202401

9011908C89

main90119-08C89

91553A0620

main91553-A0620

9415180600

main94151-80600

10 parts on this diagram · 1 diagram in section
