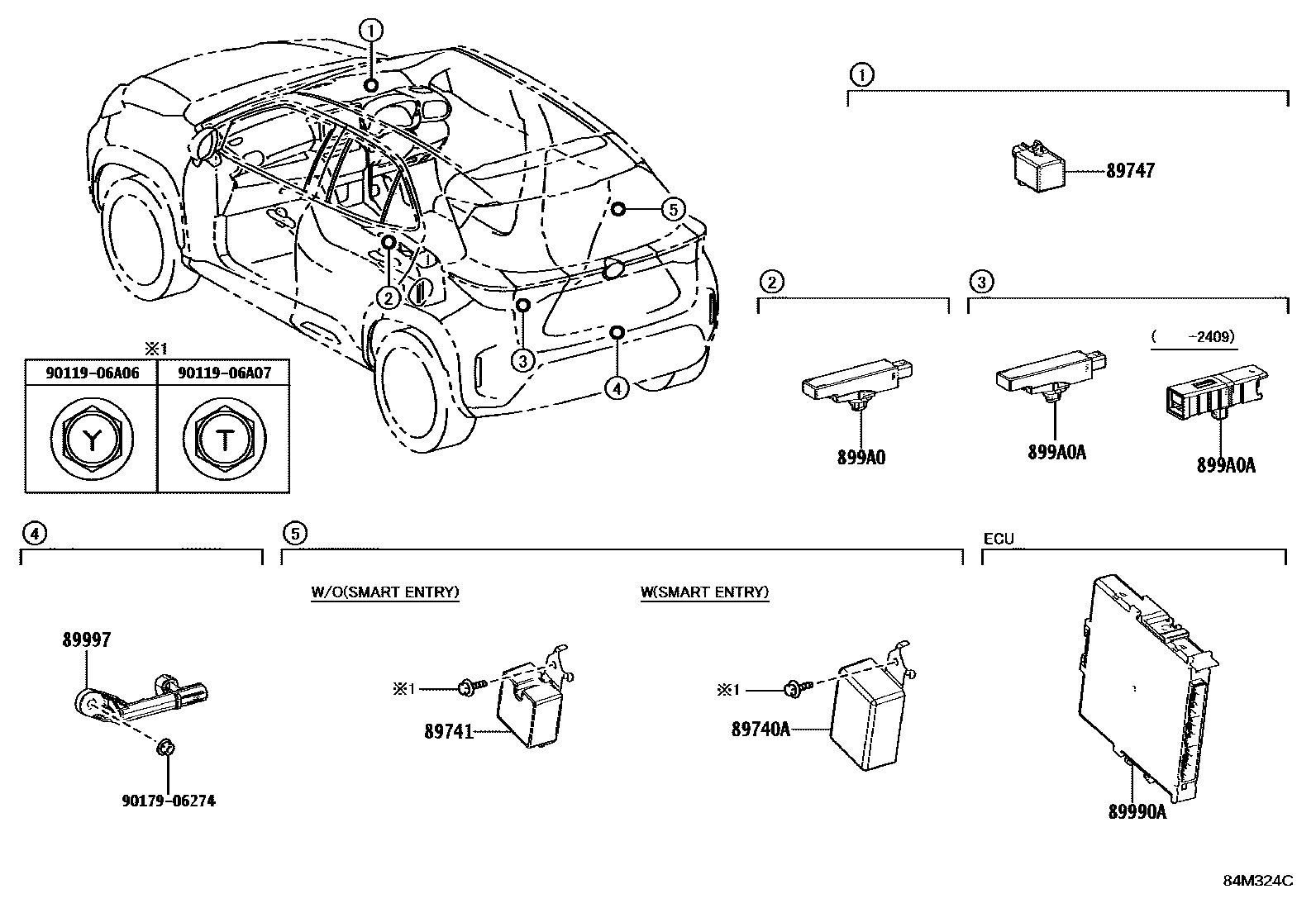

WIRELESS DOOR LOCK
89740ARECEIVER ASSY, SMART DOOR CONTROL
SINGAPORE SPEC&HIGH PACKAGE&WIRELESS DOOR LOCK-WITH(SMART ENTRY & ID); SINGAPORE SPEC&WIRELESS DOOR LOCK-WITH(SMART ENTRY & ID)
89741RECEIVER, DOOR CONTROL
NEW ZEALAND SPEC&WIRELESS DOOR LOCK-WITH(HAZARD SIGNAL)
SINGAPORE SPEC
89747BUZZER, WIRELESS DOOR LOCK
89990ACOMPUTER ASSY, SMART KEY
WIRELESS DOOR LOCK-WITH(SMART ENTRY)
WIRELESS DOOR LOCK-WITH(SMART ENTRY & ID)
WIRELESS DOOR LOCK-WITH(SMART ENTRY & ID)
89997ANTENNA, ELECTRICAL KEY
899A0ANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.1
899A0AANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.2
9011906A06
main90119-06A06
9011906A07
main90119-06A07
9017906274
main90179-06274
10 parts on this diagram · 1 diagram in section
