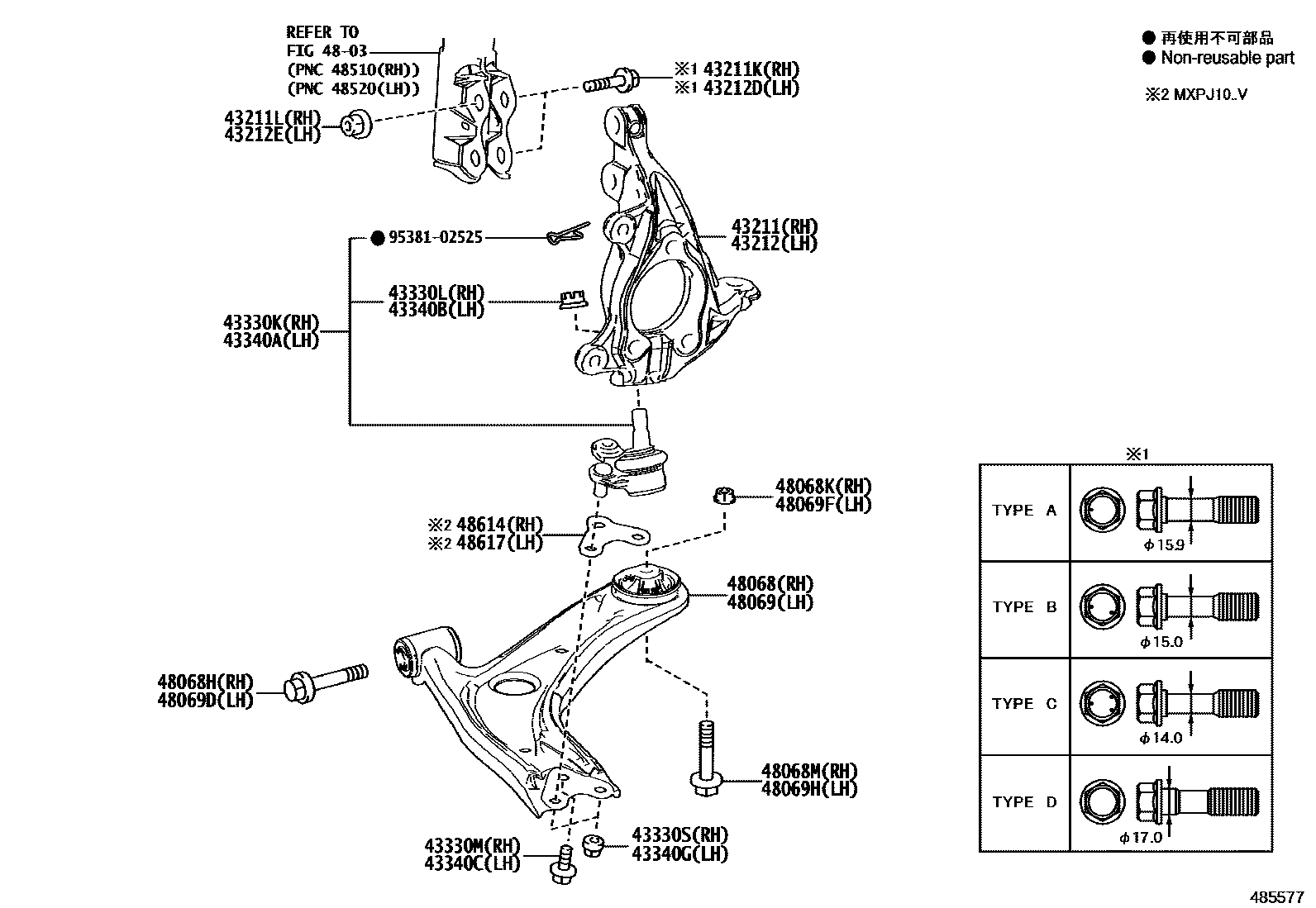

FRONT AXLE ARM & STEERING KNUCKLE

43211KNUCKLE, STEERING, RH

main43211-47040iMXPB10,MXPJ1#202008-202401

43211KBOLT (FOR STEERING KNUCKLE RH)

main90105-17013iMXPJ1#202401

OD=15.9,TYPE A:REFER ILLUST.

main90105-17014iMXPJ1#202401

OD=15,TYPE B:REFER ILLUST.

main90105-17015iMXPJ1#202401

OD=14,TYPE C:REFER ILLUST.

main90105-17021×2iMXPB10,MXPJ1#202008-202401

OD=17,TYPE D:REFER ILLUST.

43211LNUT (FOR STEERING KNUCKLE RH)

main90178-17002×2iMXPB10,MXPJ1#202008-202401

43212KNUCKLE, STEERING, LH

main43212-47040iMXPB10,MXPJ1#202008-202401

43212DBOLT (FOR STEERING KNUCKLE LH)

main90105-17013iMXPB10,MXPJ1#202008-202401

OD=15.9,TYPE A:REFER ILLUST.

main90105-17014iMXPJ1#202401

OD=15,TYPE B:REFER ILLUST.

main90105-17015iMXPB10,MXPJ1#202008-202401

OD=14,TYPE C:REFER ILLUST.

main90105-17021×2iMXPB10,MXPJ1#202008-202401

OD=17,TYPE D:REFER ILLUST.

43212ENUT (FOR STEERING KNUCKLE LH)

main90178-17002×2iMXPB10,MXPJ1#202008-202401

43330KJOINT ASSY, LOWER BALL, FRONT RH

main43330-19115iMXPB10,MXPJ1#..N202008-202401

main43330-59175iMXPJ10..V202210-202401

43330LNUT, CASTLE (FOR FRONT LOWER BALL JOINT RH)

main90171-14003iMXPB10,MXPJ1#202008-202401

43330MBOLT (FOR FRONT LOWER BALL JOINT RH)

main90105-12407iMXPB10,MXPJ1#202008-202208

main91552-L1225iMXPB10,MXPJ1#202208-202401

43330SNUT (FOR FRONT LOWER BALL JOINT RH)

main90178-12019×2iMXPB10,MXPJ1#202008-202401

43340AJOINT ASSY, LOWER BALL, FRONT LH

main43330-19115iMXPB10,MXPJ1#..N202008-202401

main43330-59175iMXPJ10..V202401

43340BNUT, CASTLE (FOR FRONT LOWER BALL JOINT LH)

main90171-14003iMXPB10,MXPJ1#202008-202401

43340CBOLT (FOR FRONT LOWER BALL JOINT LH)

main90105-12407iMXPB10,MXPJ1#202008-202208

main91552-L1225iMXPB10,MXPJ1#202208-202401

43340GNUT (FOR FRONT LOWER BALL JOINT LH)

main90178-12019×2iMXPB10,MXPJ1#202008-202401

4803FRONT SPRING & SHOCK ABSORBER

→ Go to FIG 48-03

48068ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH

main48068-52130iMXPB10,MXPJ1#..N202008-202401

main48068-52140iMXPJ10..V202210-202401

48068HBOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 RH)

main90119-14193iMXPB10,MXPJ1#202008-202401

48068KNUT(FOR FRONT SUSPENSION LOWER ARM NO.2 RH)

main90179-14068iMXPJ1#202401

48068MBOLT(FOR FRONT SUSPENSION LOWER ARM NO.2 RH)

main90119-14180iMXPJ1#202401

48069ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH

main48069-52130iMXPJ1#..N202401

main48069-52140iMXPJ10..V202210-202401

48069DBOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 LH)

main90119-14193iMXPB10,MXPJ1#202008-202401

48069FNUT(FOR FRONT SUSPENSION LOWER ARM NO.2 LH)

main90179-14068iMXPB10,MXPJ1#202008-202401

48069HBOLT(FOR FRONT SUSPENSION LOWER ARM NO.2 LH)

main90119-14180iMXPB10,MXPJ1#202008-202401

48614PLATE, ARM ATTACHMENT, INNER RH NO.1

main48614-0D010iMXPJ10..V202210-202401

48617PLATE, ARM ATTACHMENT, INNER LH NO.1

main48614-0D010iMXPJ10..V202210-202401

9538102525

main95381-02525

26 parts on this diagram · 1 diagram in section
