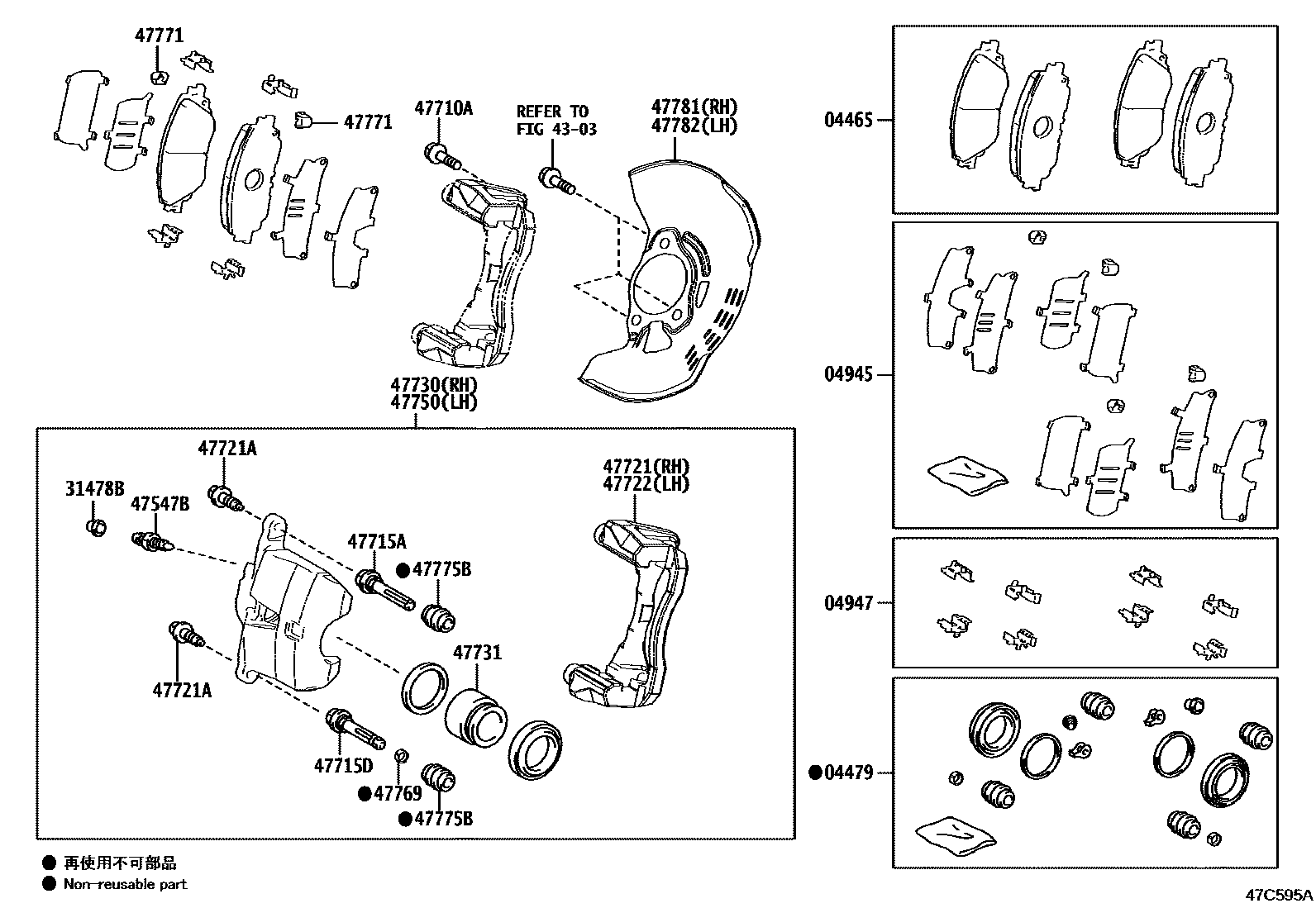

FRONT DISC BRAKE CALIPER & DUST COVER

04465PAD KIT, DISC BRAKE, FRONT

main04465-12670iMXPB10,MXPJ1#202008-202401

MARK ADVICS VC084H

04479CYLINDER KIT, DISC BRAKE, FRONT

main04478-12130iMXPB10,MXPJ1#202008-202401

04945SHIM KIT, ANTI SQUEAL, FRONT

main04945-12120iMXPB10,MXPJ1#202008-202401

04947FITTING KIT, DISC BRAKE, FRONT

main04947-47030iMXPB10,MXPJ1#202008-202401

31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-30010iMXPB10,MXPJ1#202008-202401

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-20010iMXPB10,MXPJ1#202008-202401

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90105-12208iMXPB10,MXPJ1#202008-202401

*12-1.25PX29.5-23

47715APIN, FRONT DISC BRAKE CYLINDER SLIDE

main47715-52190iMXPJ1#202008-202401

47715DPIN, FRONT DISC BRAKE CYLINDER SLIDE, NO.2

main47715-12A10iMXPB10,MXPJ1#202008-202401

47721MOUNTING, FRONT DISC BRAKE CYLINDER, RH

main47721-12B10iMXPJ1#..N202008-202401

main47721-52420iMXPJ10..V202210-202401

47721ABOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING)

main90105-08164iMXPB10,MXPJ1#202008-202401

*8-1.00PX23-15

47722MOUNTING, FRONT DISC BRAKE CYLINDER, LH

main47722-12B10iMXPB10,MXPJ1#..N202008-202401

main47722-52470iMXPJ10..V202210-202401

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-12B10iMXPJ1#..N202008-202401

main47730-52420iMXPJ10..V202210-202401

47731PISTON, FRONT DISC BRAKE

main47731-52210iMXPB10,MXPJ1#202008-202401

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-12B10iMXPB10,MXPJ1#..N202008-202401

main47750-52470iMXPJ10..V202210-202401

47769BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE)

main47769-50010iMXPB10,MXPJ1#202008-202401

47771PLATE, PAD WEAR INDICATOR, NO.1

main47771-33380iMXPB10,MXPJ1#202008-202401

47775BBOOT, BUSH DUST, NO.1

main47775-52190iMXPB10,MXPJ1#202008-202401

47781COVER, DISC BRAKE DUST, FRONT RH

main47781-10080iMXPB10,MXPJ1#202008-202401

47782COVER, DISC BRAKE DUST, FRONT LH

main47782-10080iMXPB10,MXPJ1#202008-202401

20 parts on this diagram · 1 diagram in section
