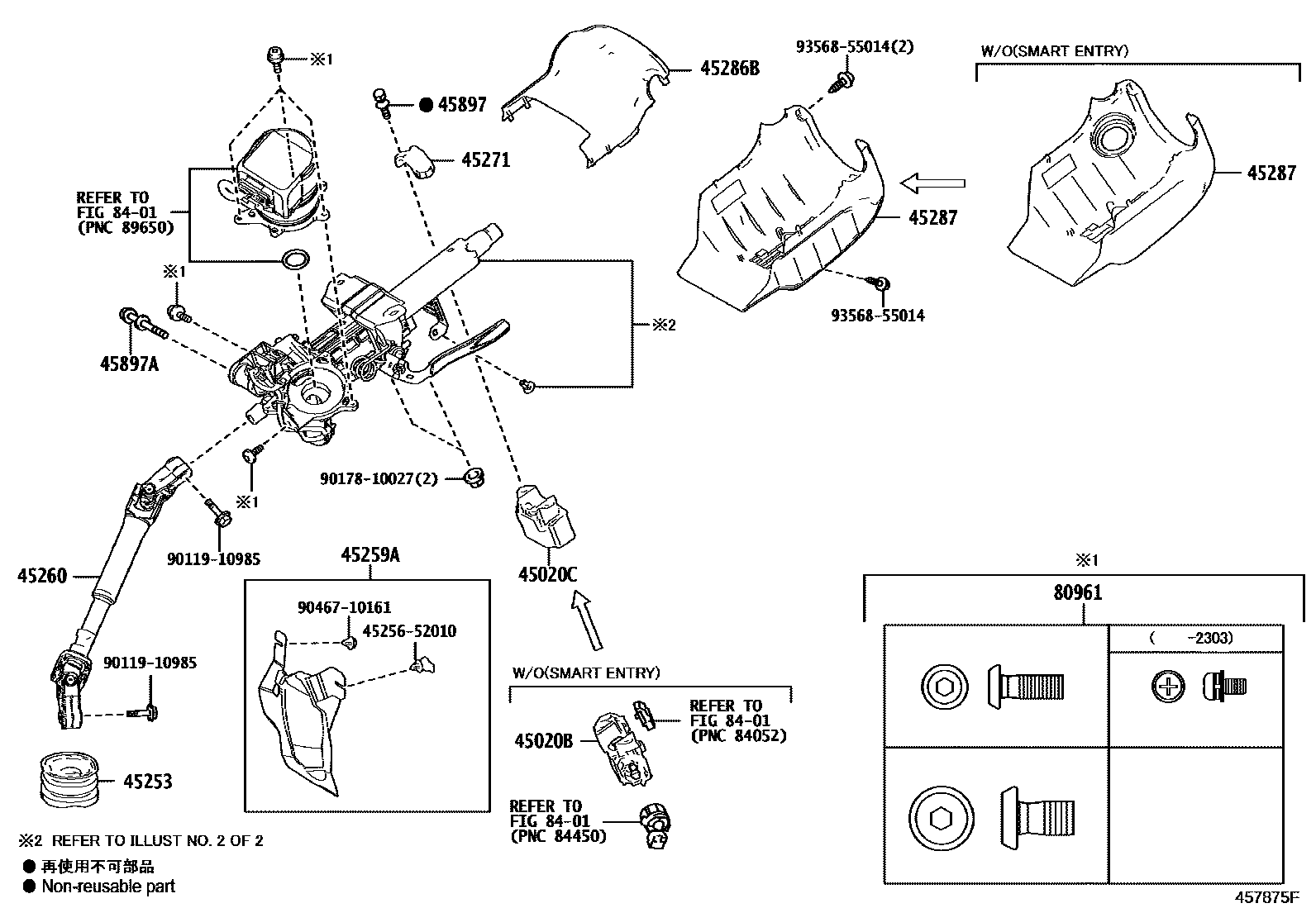

STEERING COLUMN & SHAFT

45020BACTUATOR OR UPPER BRACKET ASSY, STEERING LOCK

main45280-33180i202008-202401

WIRELESS DOOR LOCK-WITH(SMART ENTRY & ID)

45020CACTUATOR ASSY, STEERING LOCK(W/ECU)

main45020-K0010i202008-202208

WIRELESS DOOR LOCK-WITH(SMART ENTRY & ID); WIRELESS DOOR LOCK-WITH(SMART ENTRY)

45253COVER, STEERING COLUMN HOLE

45259ASHEET, COLUMN HOLE COVER SILENCER

main45259-K0010i202008-202401

45260SHAFT ASSY, STEERING INTERMEDIATE, NO.2

main45260-52330i202008-202401

45271CLAMP, STEERING COLUMN, UPPER

main45271-52030i202008-202401

WIRELESS DOOR LOCK-WITH(SMART ENTRY & ID)

45286BCOVER, STEERING COLUMN, UPR

BLACK,TRIM2#; BLACK,TRIM2#,4#

main45286-K0020-C0i202008-202401

BLACK,TRIM2#,4#,6#

45287COVER, STEERING COLUMN, LWR

BLACK,TRIM2#; BLACK,TRIM2#,4#

main45024-K0060-C0i202008-202401

BLACK,TRIM2#,4#,6#

45897BOLT, STEERING LOCK SET

main45897-12020×2i202008-202401

WIRELESS DOOR LOCK-WITH(SMART ENTRY & ID)

45897ABOLT, TILT STEERING PAWL SET

main90119-10981i202008-202401

80961FASTENER SET, POWER STEERING MOTOR

main80961-52010i202008-202303

main80961-52040i202303-202401

8401SWITCH & RELAY & COMPUTER

4525652010PROTECTOR, COLUMN TUBE EDGE, NO.1

9011910985

9017810027

9046710161

9356855014

17 parts on this diagram · 4 diagrams in section
