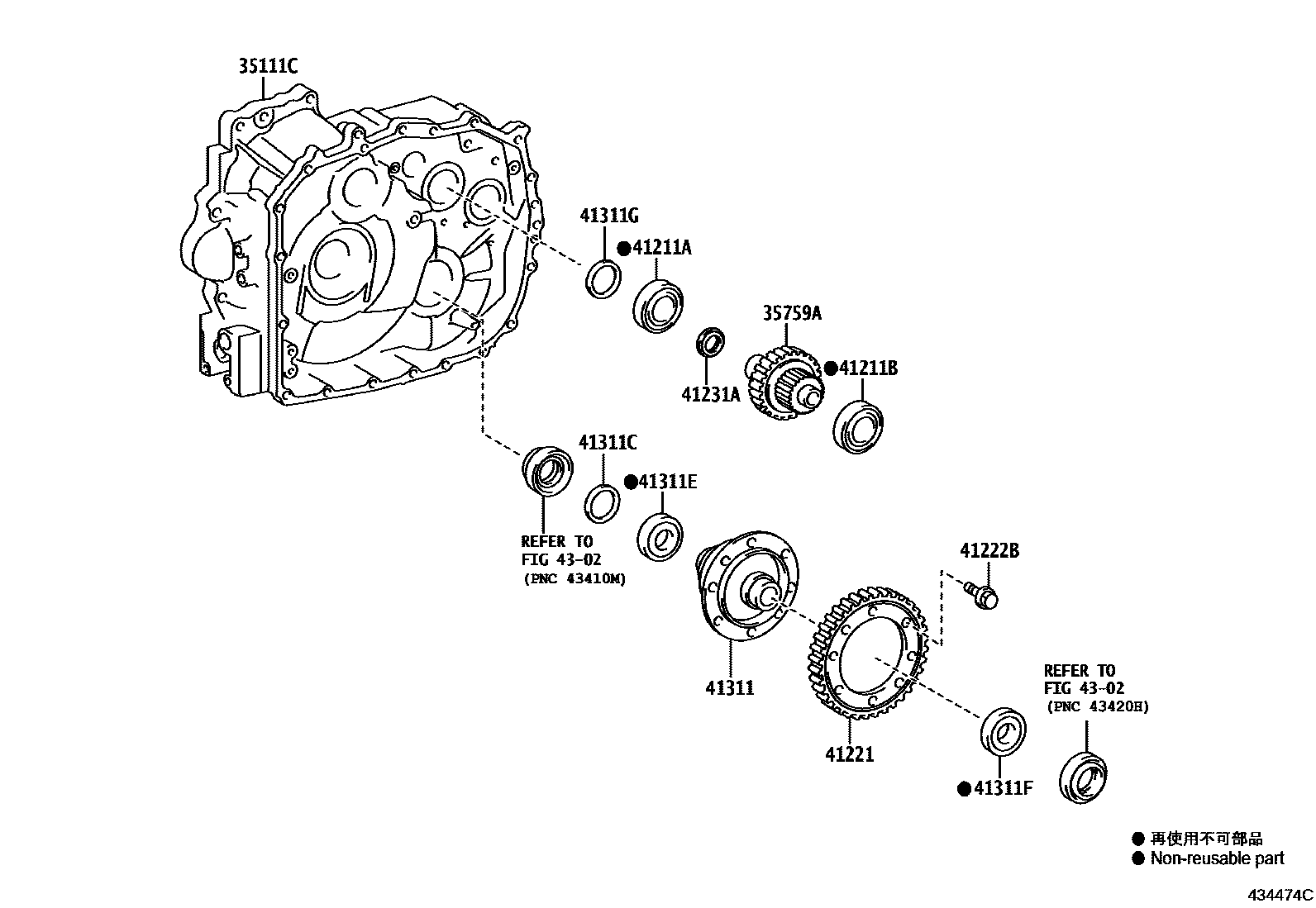

FRONT AXLE HOUSING & DIFFERENTIAL
35111CHOUSING, TRANSAXLE
35759AGEAR, REDUCTION DRIVEN
41211ABEARING, TAPERED ROLLER (FOR FRONT DRIVE PINION FRONT)
41211BBEARING, TAPERED ROLLER (FOR FRONT DRIVE PINION REAR)
41221GEAR, FRONT DIFFERENTIAL RING
41222BBOLT (FOR FRONT DIFFERENTIAL RING GEAR SET)
41231ANUT, DRIVE PINION LOCK
41311CASE, FRONT DIFFERENTIAL
41311CSHIM (FOR FRONT DIFFERENTIAL CASE REAR)
T=1.76
T=1.79
T=1.82
T=1.85
T=1.88
T=1.91
T=1.94
T=1.97
T=2.00
T=2.03
T=2.06
T=2.09
T=2.12
T=2.15
T=2.18
T=2.21
T=2.24
T=2.27
T=2.30
T=2.33
41311EBEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE FRONT)
41311FBEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE REAR)
41311GWASHER, PLATE (FOR FRONT DIFFERENTIAL CASE FRONT)
T=1.71, MARK E
T=1.74, MARK F
T=1.77, MARK G
T=1.80, MARK H
T=1.83, MARK J
T=1.86, MARK K
T=1.89, MARK L
T=1.92, MARK M
T=1.95, MARK N
T=1.98, MARK P
T=2.01, MARK Q
T=2.04, MARK R
T=2.07, MARK S
T=2.10, MARK T
T=2.13, MARK U
T=2.16, MARK V
T=2.19, MARK W
T=2.22, MARK X
T=2.25, MARK Y
T=2.28
T=2.31
T=2.34
T=2.37
4302FRONT DRIVE SHAFT
13 parts on this diagram · 1 diagram in section
