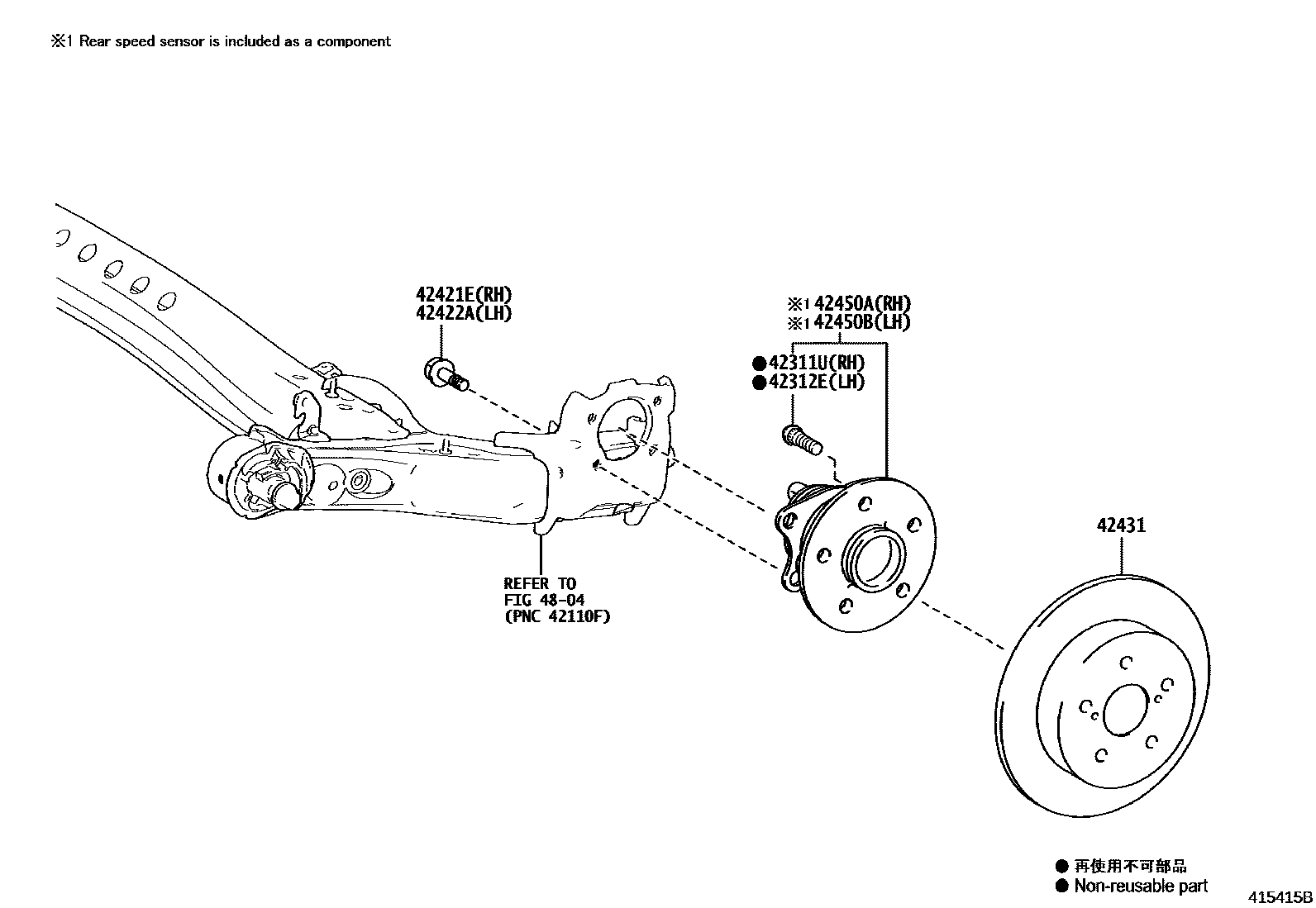

REAR AXLE SHAFT & HUB

0001 1 0002 1 0003 1

42311UBOLT, HUB(FOR REAR AXLE RH)

main90942-02049×5iMXPB10,MXPJ1#202008-202401

42312EBOLT, HUB(FOR REAR AXLE LH)

main90942-02049×5iMXPB10,MXPJ1#202008-202401

42421EBOLT (FOR REAR AXLE BEARING CASE RH)

main90105-12408×4iMXPB10,MXPJ1#..N202008-202401

main90119-12488×4iMXPJ10..V202401

42422ABOLT (FOR REAR AXLE BEARING CASE LH)

main90105-12408×4iMXPB10,MXPJ1#..N202008-202401

main90119-12488×4iMXPJ10..V202401

42431DISC, REAR

main42431-52180×2iMXPB10,MXPJ10202008-202401

main42431-78010×2iMXPJ15202401

42450AHUB & BEARING ASSY, REAR AXLE, RH

main42410-10020iMXPJ15202401

main42450-52140iMXPJ10202401

42450BHUB & BEARING ASSY, REAR AXLE, LH

main42410-10020iMXPJ15202008-202401

main42450-52140iMXPB10,MXPJ10202008-202401

4804REAR SPRING & SHOCK ABSORBER

→ Go to FIG 48-04

8 parts on this diagram · 3 diagrams in section
