TRANSAXLE ASSY(CVT)

0001 1K320 0002 1K320 0003 1K320 0004 1K320 0005 1K320

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

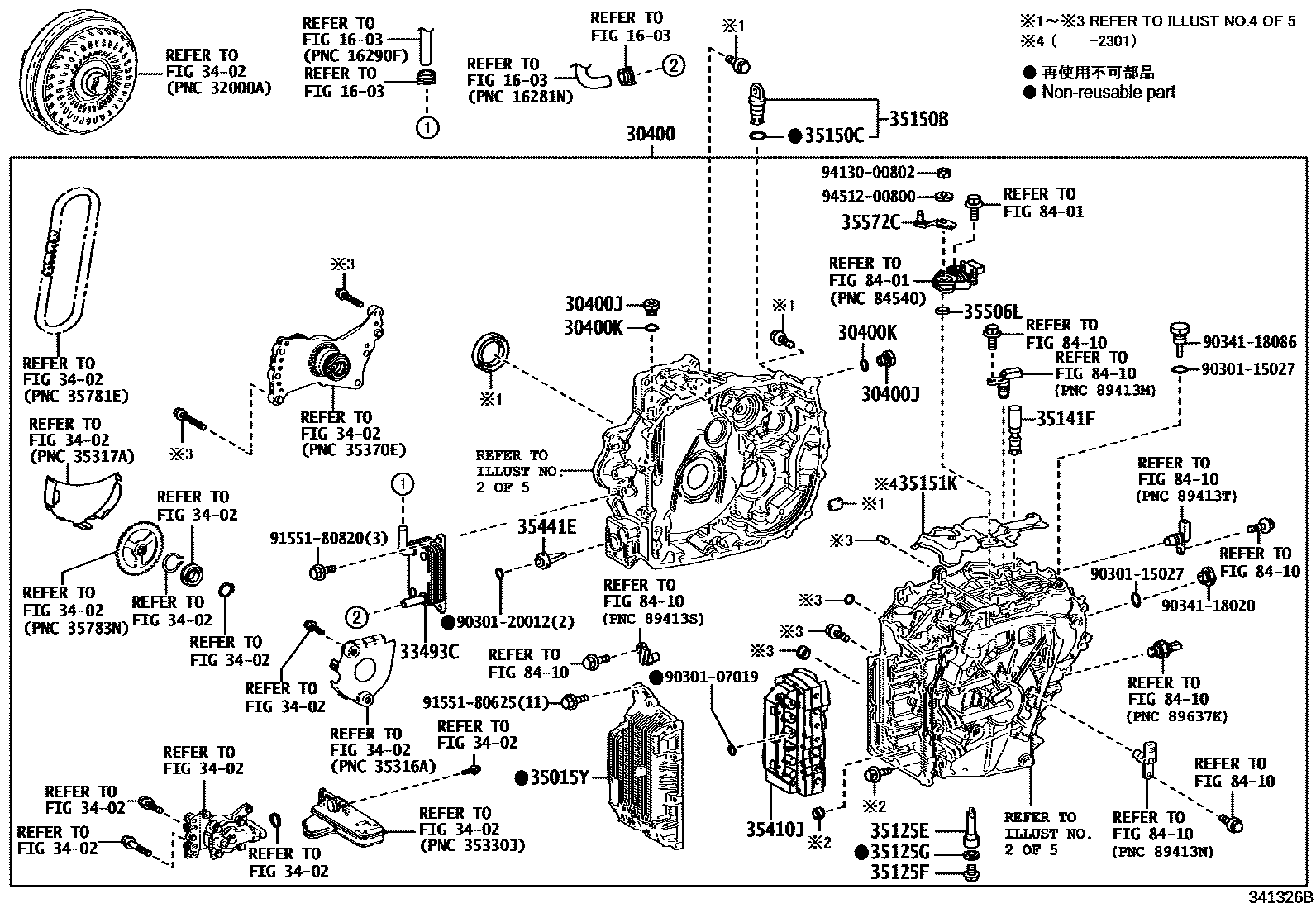

30400TRANSAXLE ASSY, CONTINUOUSLY VARIABLE

main30400-52500iMXPB10202008-202401

K320

30400JPLUG, TRANSAXLE HOLE

main90341-08001iMXPB10202008-202401

30400KGASKET, TRANSAXLE HOLE PLUG

main90301-06196iMXPB10202008-202401

33493CCOOLER, TRANSMISSION OIL

main33493-12100iMXPB10202008-202401

3402TORQUE CONVERTER, FRONT OIL PUMP(CVT)

→ Go to FIG 34-02

35015YCOVER SUB-ASSY, TRANSAXLE SIDE

main35015-12020iMXPB10202008-202401

35125ETUBE, OVERFLOW(CVT)

main35125-12490iMXPB10202104-202401

main35125-K0010iMXPB10202008-202104

35125FPLUG, OVERFLOW(CVT)

main90341-18016iMXPB10202008-202401

35125GGASKET, OVERFLOW PLUG(CVT)

main90430-18008iMXPB10202008-202401

35141FPLUG, BREATHER, NO.1(CVT)

main90930-03233iMXPB10202008-202401

35150BPLUG ASSY, TRANSMISSION CASE

main35150-44010iMXPB10202008-202401

35150CRING, O (FOR TRANSMISSION CASE PLUG)

main90301-09173iMXPB10202008-202401

35151KCOVER, AUTOMATIC TRANSMISSION CASE

main35151-52020iMXPB10202008-202301

35410JBODY ASSY, TRANSMISSION VALVE

main35410-52290iMXPB10202008-202401

35441ESTRAINER, SOLENOID OIL

main35441-12130iMXPB10202104-202401

main35441-52040iMXPB10202008-202104

35506LSEAL, OIL (FOR MANUAL VALVE LEVER SHAFT)

main90311-12002iMXPB10202008-202401

35572CLEVER, TRANSMISSION CONTROL SHAFT

main35572-12190iMXPB10202008-202401

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

8410OVERDRIVE & ELECTRONIC CONTROLLED TRANSMISSION

→ Go to FIG 84-10

9030107019

main90301-07019

9030115027

main90301-15027

9030120012

main90301-20012

9034118020

main90341-18020

9034118086

main90341-18086

9155180625

main91551-80625

9155180820

main91551-80820

9413000802

main94130-00802

9451200800

main94512-00800

29 parts on this diagram · 5 diagrams in section
