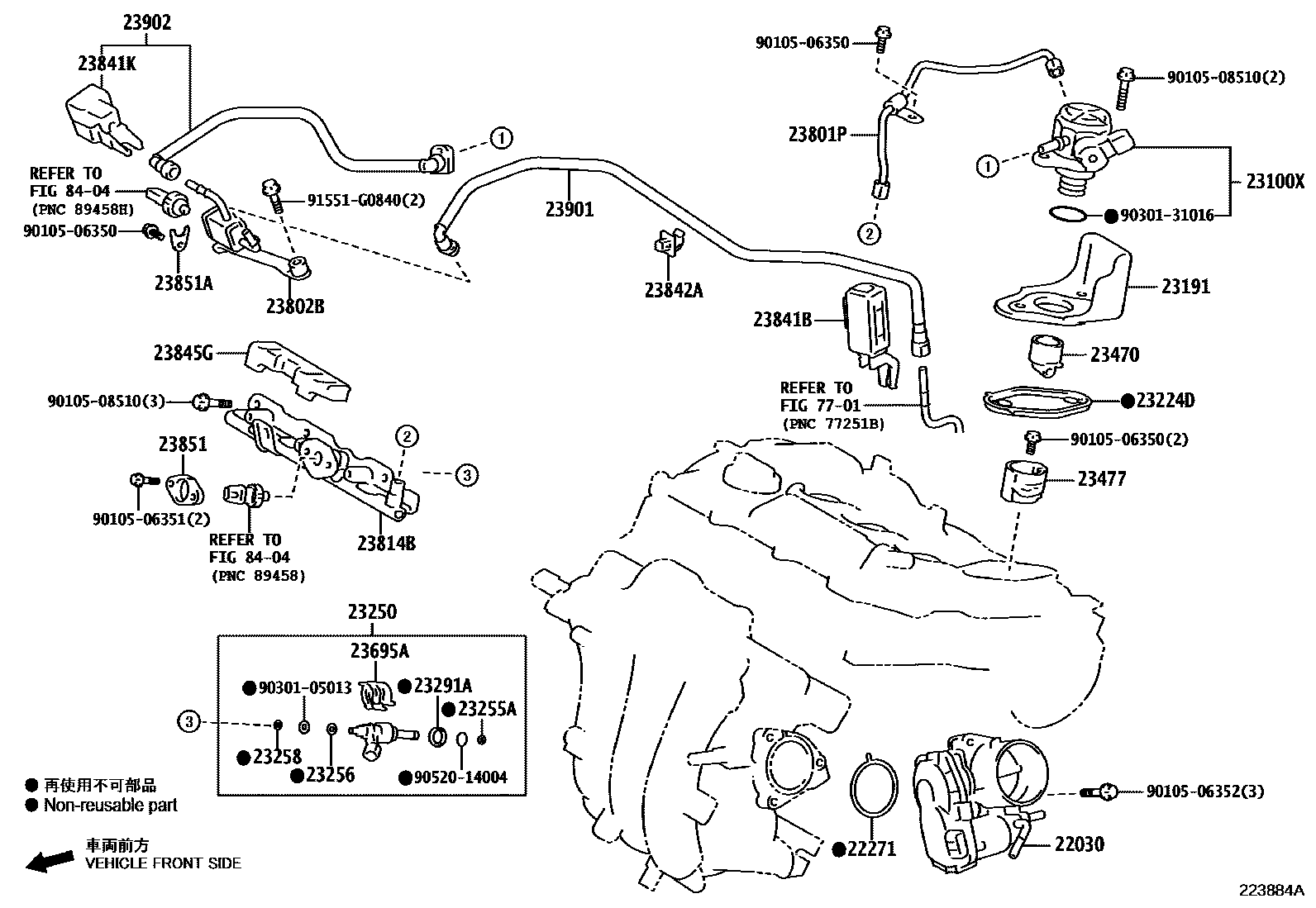

FUEL INJECTION SYSTEM
22030BODY ASSY, THROTTLE W/THROTTLE POSITION SENSOR
22271GASKET, THROTTLE BODY
23100XPUMP ASSY, FUEL (ENGINE ROOM SIDE)
23191FLANGE, FUEL PUMP
23224DGASKET, FUEL PUMP SPACER
23250INJECTOR ASSY, FUEL
MARK 1
MARK 2
MARK 3
MARK 4
MARK 5
MARK 6
MARK 7
MARK 8
MARK 9
23255ASEAL, FUEL INJECTOR
23256RING, FUEL INJECTOR BACK-UP, NO.1
23258RING, FUEL INJECTOR BACK-UP, NO.3
23291INSULATOR, INJECTOR VIBRATION
23291AINSULATOR, INJECTOR VIBRATION
23470LIFTER ASSY, FUEL PUMP
23477GUIDE, FUEL PUMP LIFTER
23695ACLAMP, NOZZLE HOLDER
23801PPIPE SUB-ASSY, FUEL, NO.1
23802BPIPE SUB-ASSY, FUEL, NO.2
23814BPIPE, FUEL DELIVERY
23841BCLAMP, FUEL PIPE, NO.1(FOR EFI)
23841KCLAMP, FUEL PIPE
23842ACLAMP, FUEL PIPE, NO.2(FOR EFI)
23845GINSULATOR, FUEL DELIVERY
23851HOLDER, FUEL PRESSURE SENSOR, NO.1
23851AHOLDER, FUEL PRESSURE SENSOR, NO.2
23901TUBE SUB-ASSY, FUEL
23902TUBE SUB-ASSY, FUEL
7701FUEL TANK & TUBE
8404ELECTRONIC FUEL INJECTION SYSTEM
9010506350
main90105-06350
9010506351
main90105-06351
9010506352
main90105-06352
9010508510
main90105-08510
9030105013
main90301-05013
9030131016
main90301-31016
9052014004
main90520-14004
91551G0840
main91551-G0840
35 parts on this diagram · 2 diagrams in section
