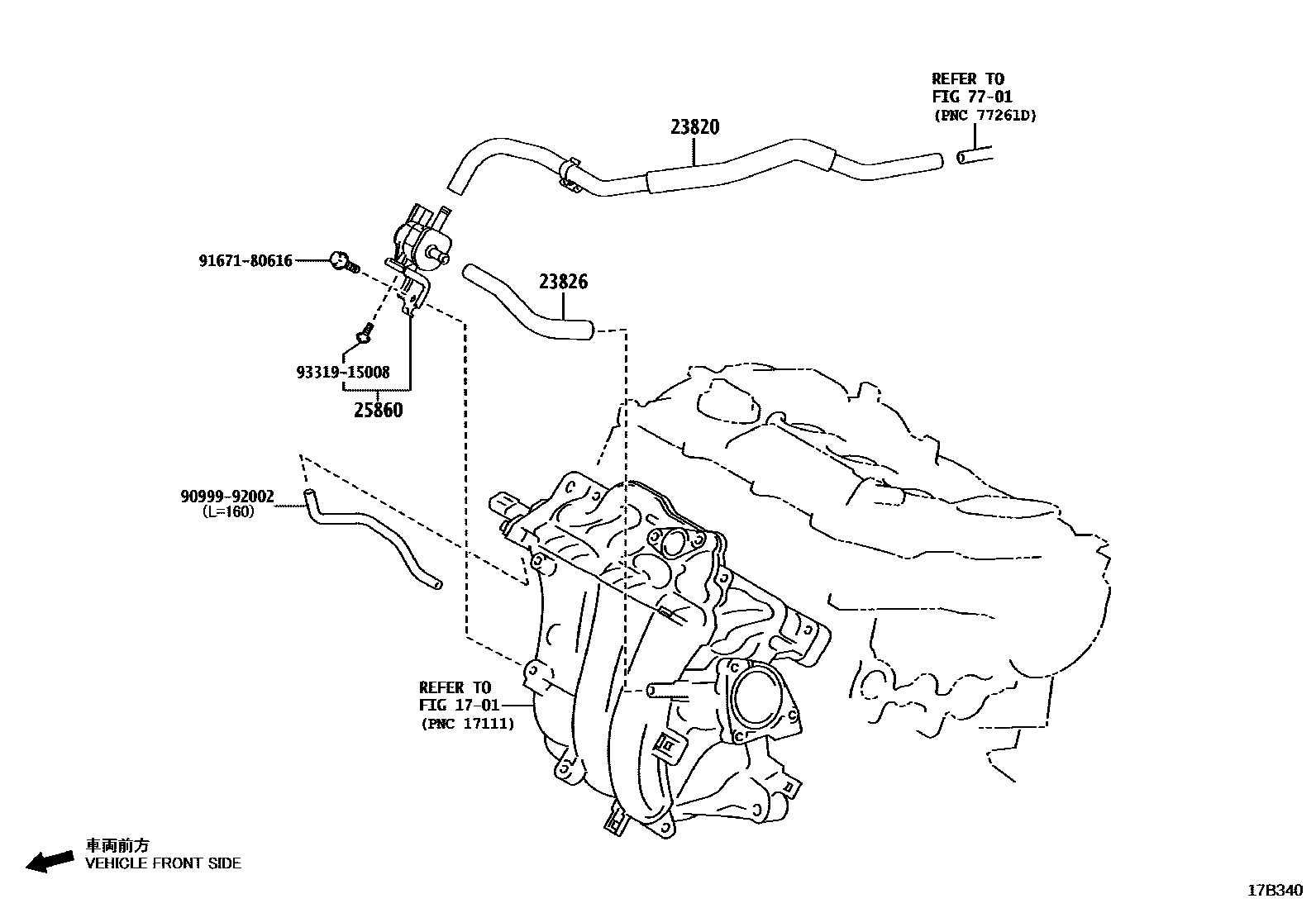

VACUUM PIPING

0001 1 0002 1

1701MANIFOLD

→ Go to FIG 17-01

23820HOSE ASSY, FUEL VAPOR FEED

main23820-15010iM15AFKS..MXPB10202008-202401

main23820-15020iM15AFXE..MXPJ1#202008-202401

23826HOSE, FUEL VAPOR FEED, NO.1

main23826-15010iM15AFKS..MXPB10202008-202401

main23826-15020iM15AFXE..MXPJ1#202008-202401

25860VALVE ASSY, VACUUM SWITCHING, NO.1

main25860-15040iM15AFKS..MXPB10202008-202401

main25860-15050iM15AFXE..MXPJ1#202008-202401

7701FUEL TANK & TUBE

→ Go to FIG 77-01

9099992002

main90999-92002

9167180616

main91671-80616

9331915008

main93319-15008

8 parts on this diagram · 2 diagrams in section
