RADIATOR & WATER OUTLET

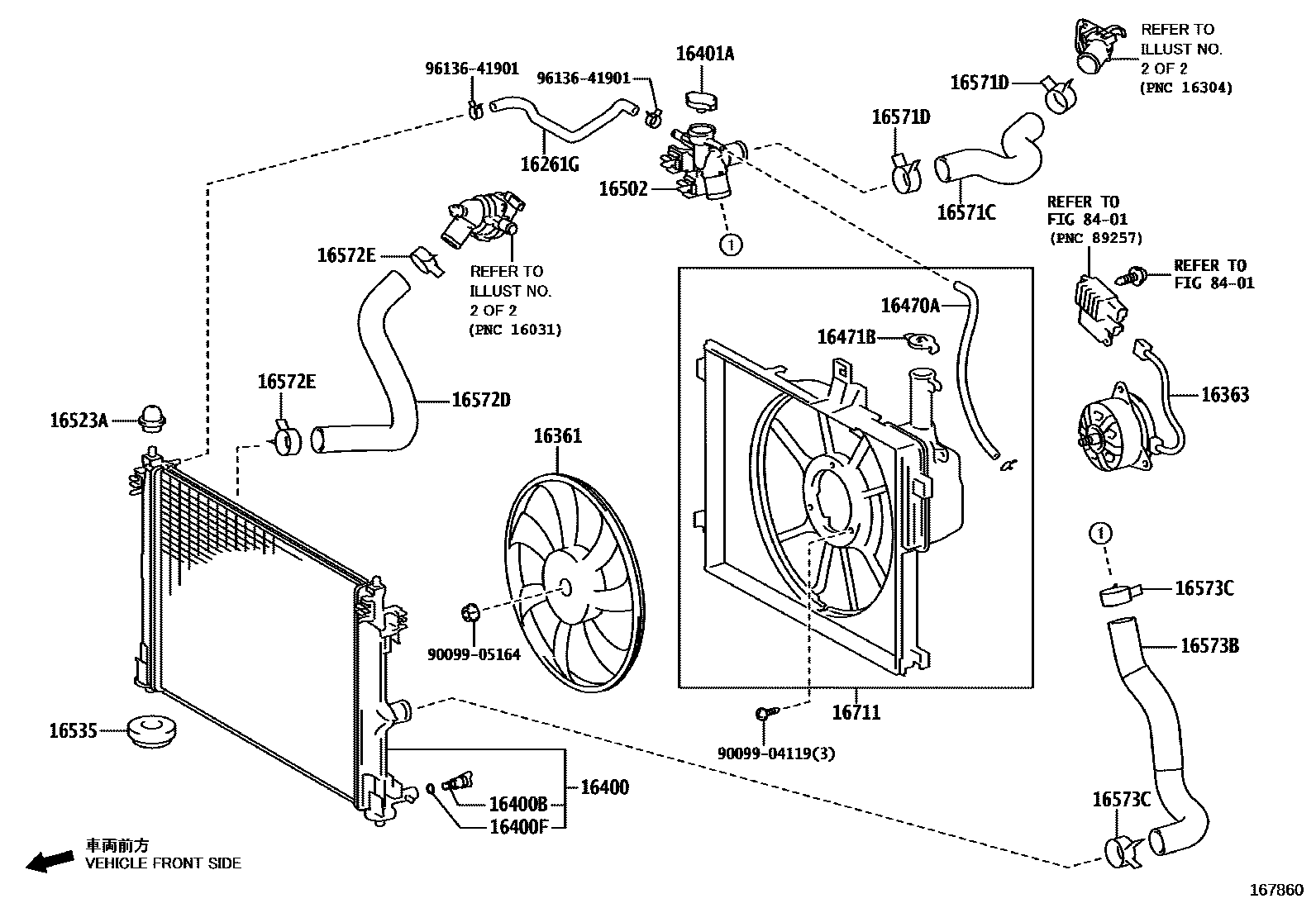

Parts diagram

16261GHOSE, WATER BY-PASS, NO.1

main16261-15030i202008-202401

main16261-15040i202008-202401

16361FAN

main16361-21120i202008-202401

main16361-21150i202008-202401

16363MOTOR, COOLING FAN

main16363-31500i202008-202401

main16363-K0020i202008-202401

16400RADIATOR ASSY

main16400-15620i202008-202401

main16400-15640i202008-202401

16400BPLUG, RADIATOR DRAIN COCK

main16417-21280i202008-202401

16400FPACKING(FOR RADIATOR DRAIN COCK)

main16492-21050i202008-202401

16401ACAP SUB-ASSY, RADIATOR RESERVE TANK

main16401-36020i202008-202401

16470AHOSE OR PIPE(FOR RADIATOR RESERVE TANK)

main16377-K0010i202008-202401

main16377-K0020i202008-202401

16471BCAP, RESERVE TANK

main16471-15020i202008-202301

main16471-15030i202302-202401

main16471-23010i202008-202401

16502FILLER SUB-ASSY, WATER

main16502-15020i202008-202401

main16502-15030i202008-202401

16523ACUSHION, RADIATOR SUPPORT

main16523-37010i202008-202401

16535SUPPORT, RADIATOR, LOWER

main90480-40021i202008-202401

16571CHOSE, RADIATOR, NO.1

main16571-15190i202008-202401

main16571-15200i202008-202401

16571DCLIP, RADIATOR HOSE, NO.1

main90466-40001i202008-202401

16572DHOSE, RADIATOR, NO.2

main16572-15220i202008-202401

main16572-15230i202008-202401

16572ECLIP, RADIATOR HOSE, NO.2

main90466-40001i202008-202401

16573BHOSE, RADIATOR, NO.3

main16573-15010i202008-202401

main16573-15020i202008-202401

16573CCLAMP OR CLIP, RADIATOR HOSE, NO.3

main90466-43002i202008-202401

16711SHROUD, FAN

main16711-15290i202008-202401

main16711-15310i202008-202401

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9009904119

main90099-04119

9009905164

main90099-05164

9613641901

main96136-41901

23 parts on this diagram · 4 diagrams in section
