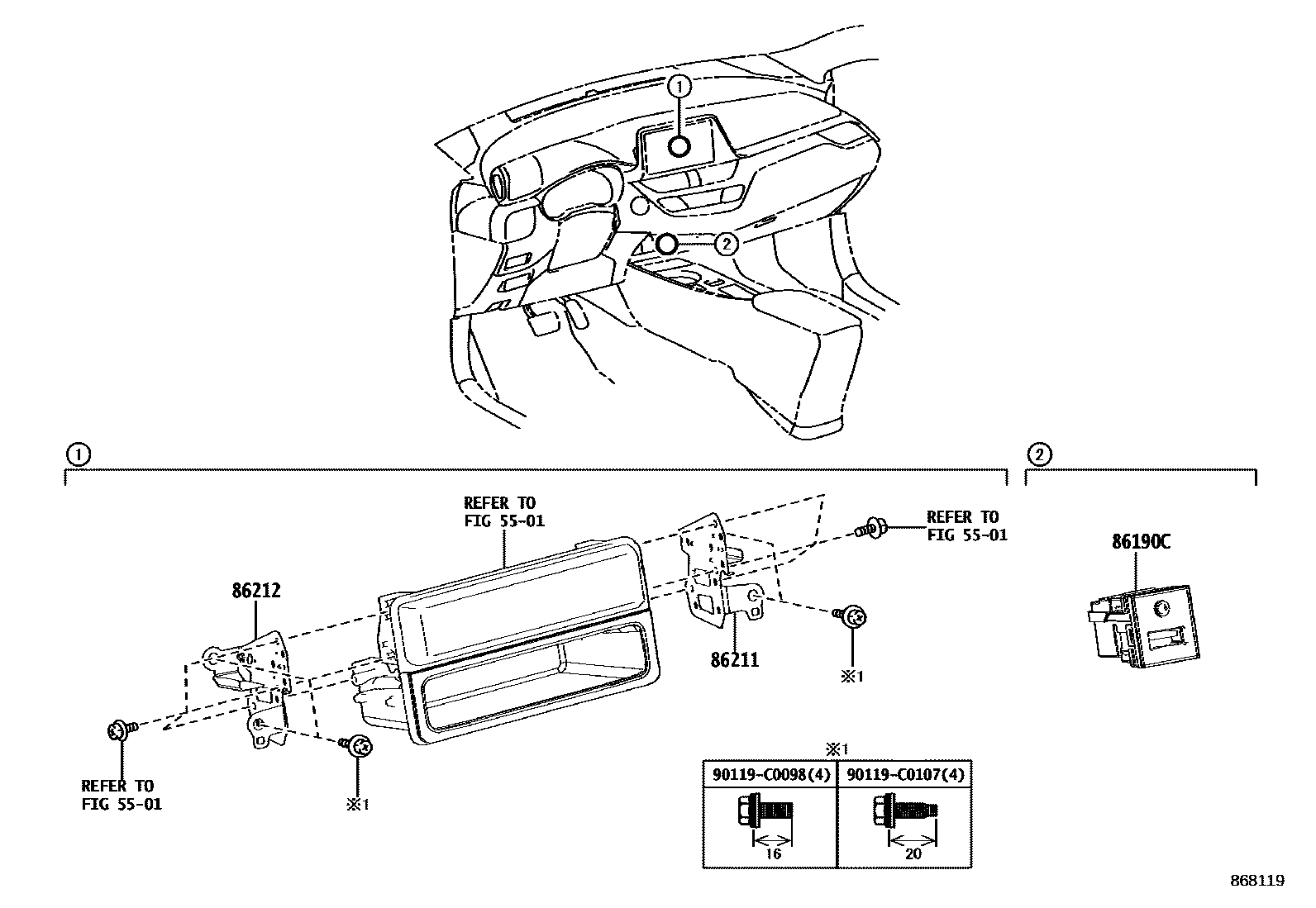

RADIO RECEIVER & AMPLIFIER & CONDENSER

0001 1 0002 1CONDENSER

5501INSTRUMENT PANEL & GLOVE COMPARTMENT

→ Go to FIG 55-01

86190CADAPTER ASSY, STEREO JACK, NO.1

main86190-06070iKPX10202005

86211BRACKET, RADIO, NO.1

main86211-F4080iKPX10..D202005

AUDIO-WITHOUT & WITH(COVER)

86212BRACKET, RADIO, NO.2

main86212-F4080iKPX10..D202005

AUDIO-WITHOUT & WITH(COVER)

90119C0098

main90119-C0098

90119C0107

main90119-C0107

6 parts on this diagram · 2 diagrams in section
