BATTERY & BATTERY CABLE

0001 112V BATTERY 0002 1EV BATTERY(1/6) 0003 1EV BATTERY(2/6) 0004 1EV BATTERY(3/6) 0005 1EV BATTERY(4/6) 0006 1EV BATTERY(5/6) 0007 1EV BATTERY(6/6)

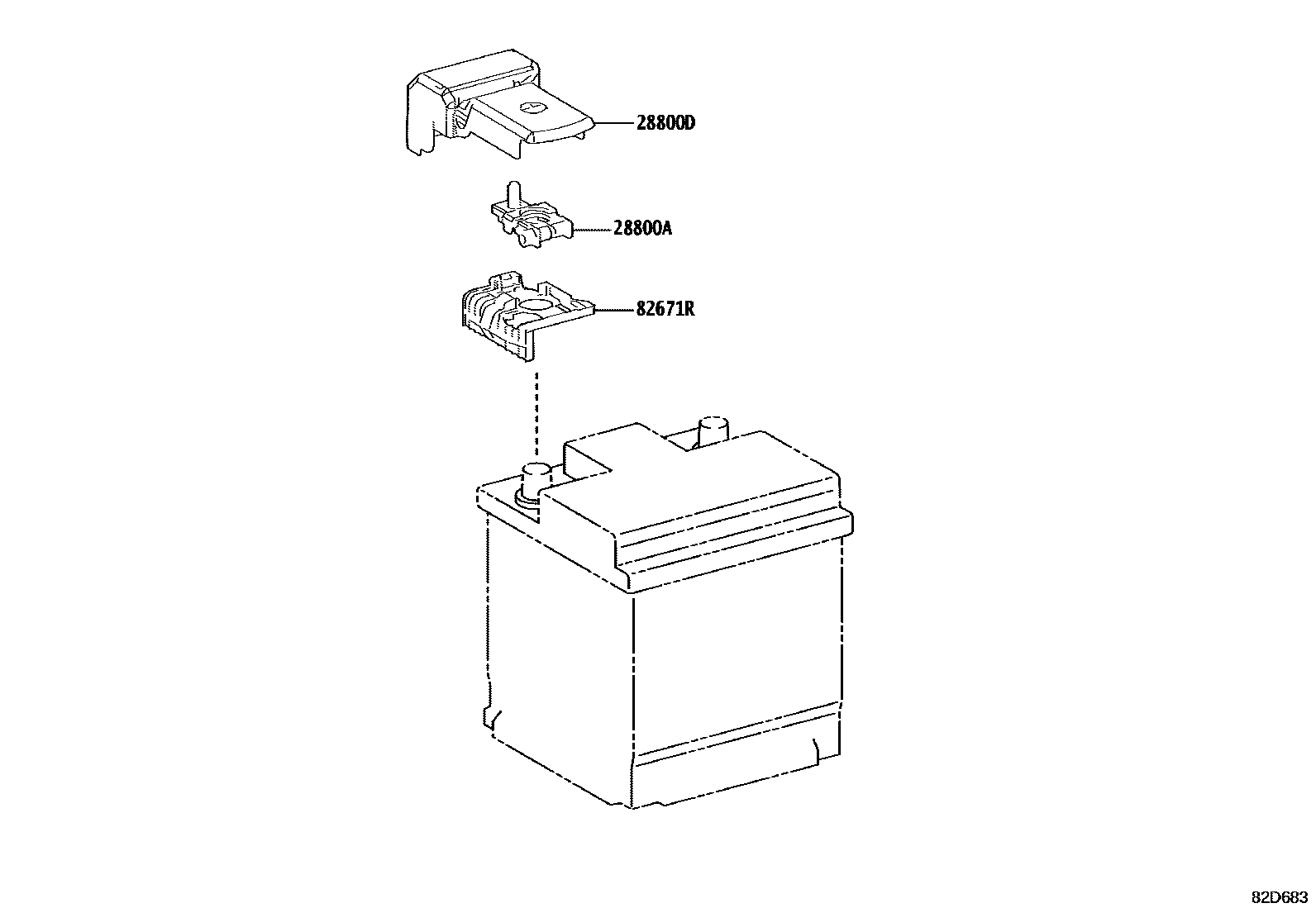

28800ATERMINAL, BATTERY POSITIVE

main90982-05061i4KM..KPX10202005

28800DCOVER, CONNECTOR(FOR BATTERY TERMINAL)

main82621-47020i4KM..KPX10202005

82671RSTOPPER, BATTERY TERMINAL

main82671-47040iKPX10202005

3 parts on this diagram · 7 diagrams in section
