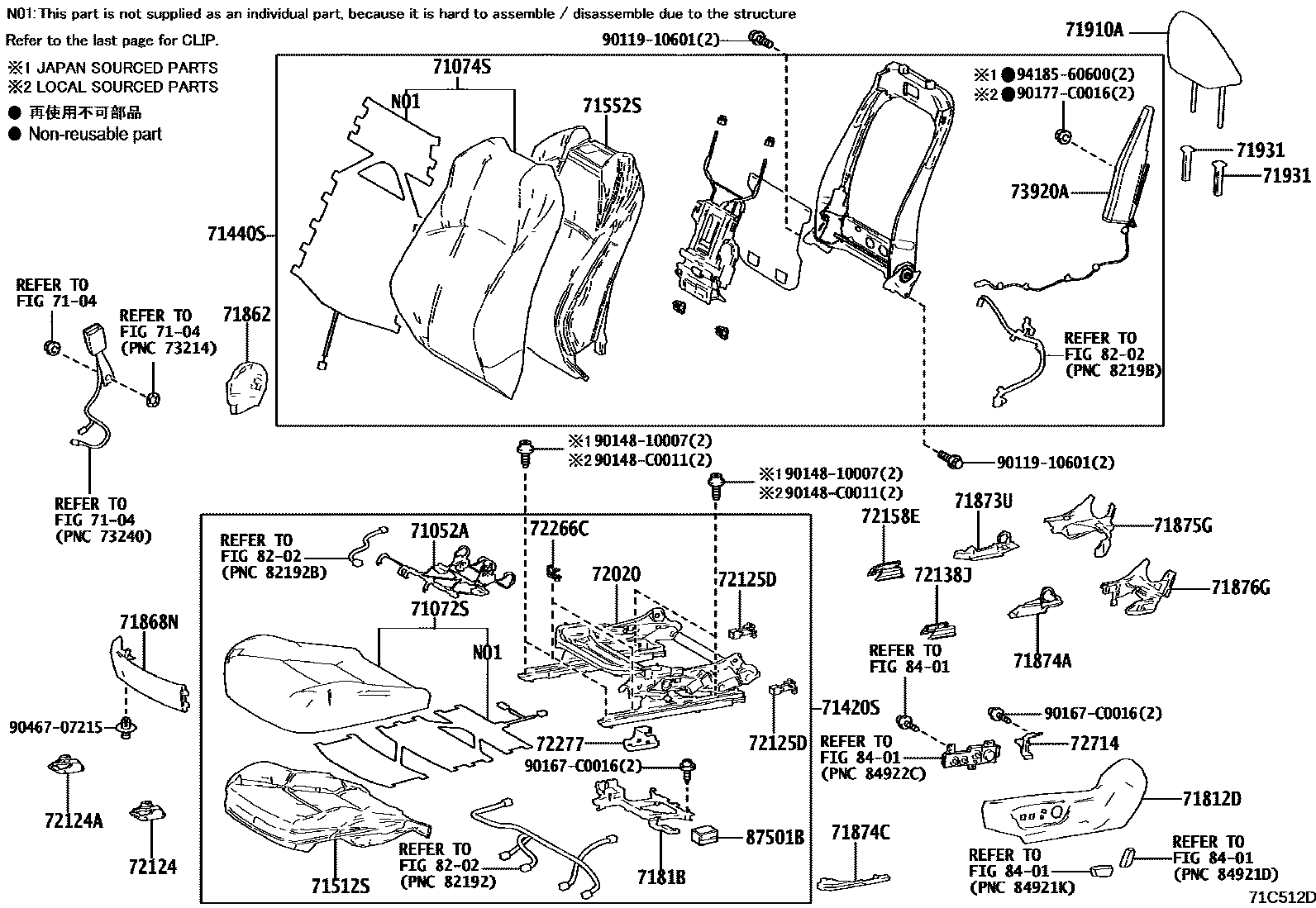

FRONT SEAT & SEAT TRACK

0001 1DRIVER SIDE,POWER SEAT 0002 1DRIVER SIDE,MANUAL SEAT 0003 1PASSENGER SIDE 0004 1CLIP

7104SEAT BELT & CHILD RESTRAINT SEAT

→ Go to FIG 71-04

71052ASPRING SUB-ASSY, FRONT SEAT CUSHION, LH

main71051-06040iKPX10202005

71072SCOVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

main71072-F4131-B3iKPX10..D202005

DK.GRAY,TRIM2#

main71072-F4141-C4iKPX10..N202005

BLACK,TRIM2#

main71072-F4460-B0iKPX10..E202005

COOL GRAY,TRIM1#

main71072-F4460-C0iKPX10..E202005

BLACK,TRIM2#

71074SCOVER, FRONT SEATBACK, LH(FOR SEPARATE TYPE)

main71074-F4320-B2iKPX10..E202005

COOL GRAY,TRIM1#

main71074-F4320-C1iKPX10..E202005

BLACK,TRIM2#

main71074-F4520-B1iKPX10..D202005

DK.GRAY,TRIM2#

main71074-F4530-C1iKPX10..N202005

BLACK,TRIM2#

71420SCUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE)

main71420-F4341-C1iKPX10..D202005

BLACK,TRIM2#

main71420-F4351-C1iKPX10..N202005

BLACK,TRIM2#

main71420-F4890-B0iKPX10..E202005

COOL GRAY,TRIM1#

main71420-F4890-C0iKPX10..E202005

BLACK,TRIM2#

71440SBACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE)

main71440-F4700-C1iKPX10..D202005

BLACK,TRIM2#

main71440-F4710-C1iKPX10..N202005

BLACK,TRIM2#

main71440-F4800-B0iKPX10..E202005

COOL GRAY,TRIM1#

main71440-F4800-C0iKPX10..E202005

BLACK,TRIM2#

71512SPAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)

main71512-F4040iKPX10..D,N202005

main71512-F4080iKPX10..E202005

71552SPAD, FRONT SEATBACK, LH(FOR SEPARATE TYPE)

main71552-F4080iKPX10202005

71812DSHIELD, FRONT SEAT CUSHION, LH

main71812-07100-C0iKPX10..E202005

BLACK,TRIM1#,2#

main71812-F4110-C0iKPX10..D,N202005

BLACK,TRIM2#

7181BHOLDER, FRONT SEAT CUSHION WIRE HARNESS, LH

main7181B-07020iKPX10..E202005

main7181B-F4030iKPX10..D,N202005

71862SHIELD, FRONT SEAT CUSHION, INNER LH

main71862-F4050-C0iKPX10..D,N; KPX10..E202005

BLACK,TRIM1#,2#; BLACK,TRIM2#

71868NSHIELD, FRONT SEAT CUSHION, FRONT LH

main71868-07030-C0iKPX10..E202005

BLACK,TRIM1#,2#

71873USHIELD, FRONT SEAT CUSHION, LOWER RH

main71874-F4040-C0iKPX10..D,N; KPX10..E202005

BLACK,TRIM1#,2#; BLACK,TRIM2#

71874ASHIELD, FRONT SEAT CUSHION, LOWER LH

main71874-F4030-C0iKPX10..D,N; KPX10..E202005

BLACK,TRIM1#,2#; BLACK,TRIM2#

71874CSHIELD, FRONT SEAT CUSHION, LOWER

main71874-07080-C0iKPX10..E202005

BLACK

71875GCOVER, RECLINING ADJUSTER INSIDE, RH (FOR LH SEAT)

main71876-F4080-C0iKPX10..D,N; KPX10..E202005

BLACK,TRIM1#,2#; BLACK,TRIM2#

71876GCOVER, RECLINING ADJUSTER INSIDE, LH (FOR LH SEAT)

main71876-F4070-C0iKPX10..D,N; KPX10..E202005

BLACK,TRIM1#,2#; BLACK,TRIM2#

71910AHEADREST ASSY, FRONT SEAT

main71910-F4071-C3×2iKPX10..D202005

BLACK,TRIM2#

main71910-F4081-B1×2iKPX10..E202005

COOL GRAY,TRIM1#

main71910-F4081-C3×2iKPX10..E,N202005

BLACK,TRIM2#

71931SUPPORT, FRONT SEAT HEADREST

main71930-06070-B0×2iKPX10..E202005

W(LOCK),COOL GRAY,TRIM1#

main71930-06070-C0×2iKPX10202005

W(LOCK),BLACK,TRIM2#

main71931-06060-B0×2iKPX10..E202005

W/O(LOCK),COOL GRAY,TRIM1#

main71931-06060-C0×2iKPX10202005

W/O(LOCK),BLACK,TRIM2#

72020ADJUSTER ASSY, FRONT SEAT, LH

main72020-F4081iKPX10..D,N202005

main72020-F4130iKPX10..E202005

72124COVER, SEAT TRACK BRACKET, OUTER FRONT LH

main72123-F4030iKPX10202005

72124ACOVER, SEAT TRACK BRACKET, INNER FRONT LH

main72123-F4030iKPX10202005

72125DCOVER, SEAT TRACK, UPPER REAR NO.2

main72125-F4010×2iKPX10..D,N202005

main72125-F4020×2iKPX10..E202005

72138JCOVER, FRONT SEAT TRACK, LH REAR OUTER

main72137-F4020iKPX10202005

72158ECOVER, SEAT TRACK BRACKET, INNER REAR LH

main72158-F4020iKPX10202005

72266CCOVER, SEAT TRACK UPPER RAIL, LH

main72265-07020×2iKPX10..E202005

main72265-F4010×2iKPX10..D,N202005

72277PROTECTOR, SEAT SLIDE POSITION SENSOR,

main72277-F4050iKPX10202005

72714BRACKET, SEAT ADJUSTER SHIELD CLAMP, LH

main72714-07010iKPX10..E202005

73920AAIRBAG ASSY, FRONT SEAT, LH

main73920-F4051iKPX10202005

8202WIRING & CLAMP

→ Go to FIG 82-02

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

87501BCONTROL SUB-ASSY, SEAT HEATER, LH

main87501-10020iKPX10..E202005

9011910601

main90119-10601

9014810007

main90148-10007

90148C0011

main90148-C0011

90167C0016

main90167-C0016

90177C0016

main90177-C0016

9046707215

main90467-07215

9418560600

main94185-60600

39 parts on this diagram · 4 diagrams in section
