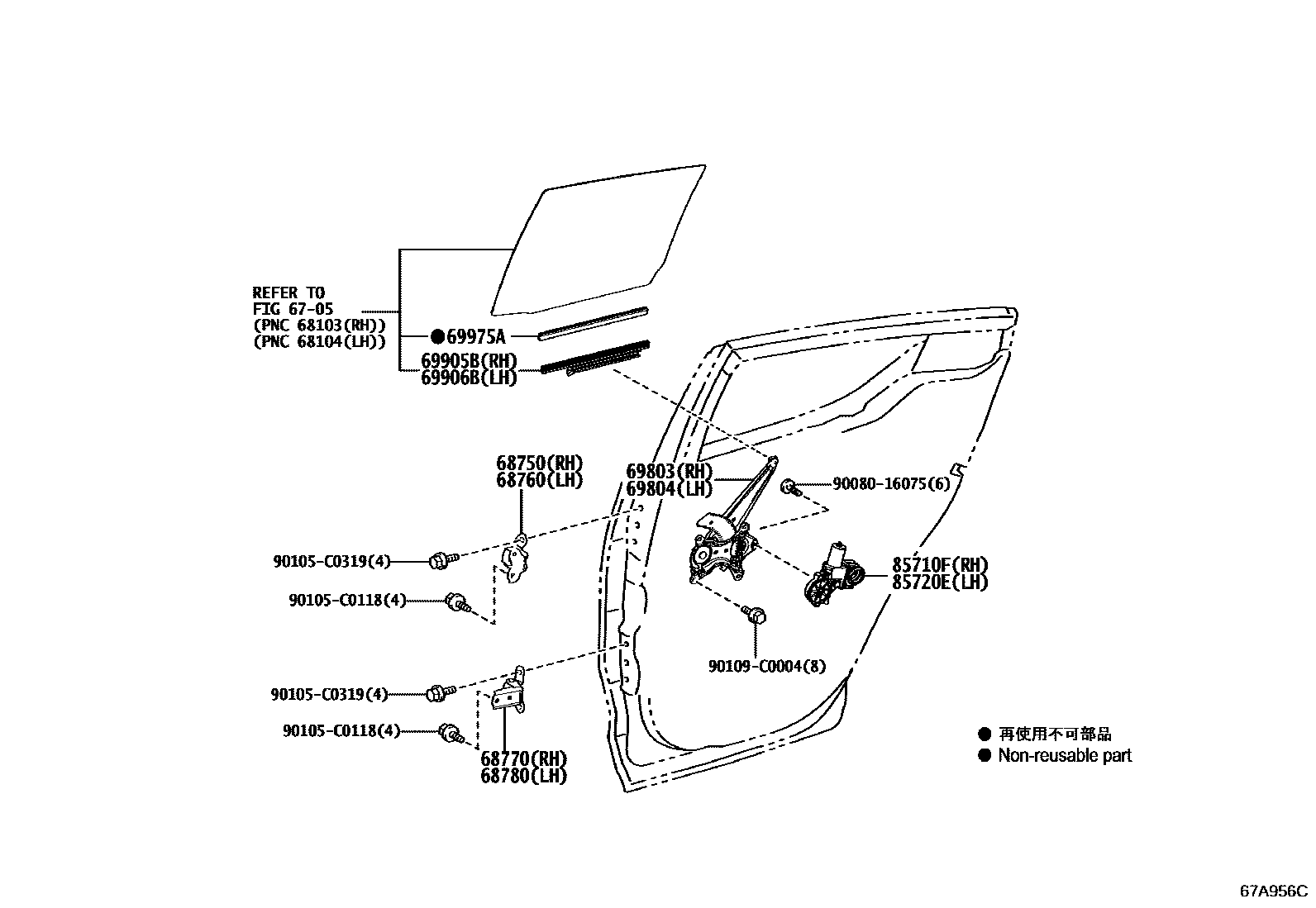

REAR DOOR WINDOW REGULATOR & HINGE

6705REAR DOOR PANEL & GLASS

→ Go to FIG 67-05

68750HINGE ASSY, REAR DOOR, UPPER RH

main68750-0P011iKPX10202005

68760HINGE ASSY, REAR DOOR, UPPER LH

main68760-0P011iKPX10202005

68770HINGE ASSY, REAR DOOR, LOWER RH

main68770-0D021iKPX10202005

68780HINGE ASSY, REAR DOOR, LOWER LH

main68780-0D021iKPX10202005

69803REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH

main69803-F4030iKPX10202005

69804REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH

main69804-F4030iKPX10202005

69905BCHANNEL SUB-ASSY, REAR DOOR GLASS, RH

main69905-F4010iKPX10202005

69906BCHANNEL SUB-ASSY, REAR DOOR GLASS, LH

main69906-F4010iKPX10202005

69975AFILLER, REAR DOOR GLASS CHANNEL

main69975-47020×2iKPX10202005

85710FMOTOR ASSY, POWER WINDOW REGULATOR, RH

main85720-F4100iKPX10202005

85720EMOTOR ASSY, POWER WINDOW REGULATOR, LH

main85710-F4100iKPX10202005

9008016075

main90080-16075

90105C0118

main90105-C0118

90105C0319

main90105-C0319

90109C0004

main90109-C0004

16 parts on this diagram · 1 diagram in section
