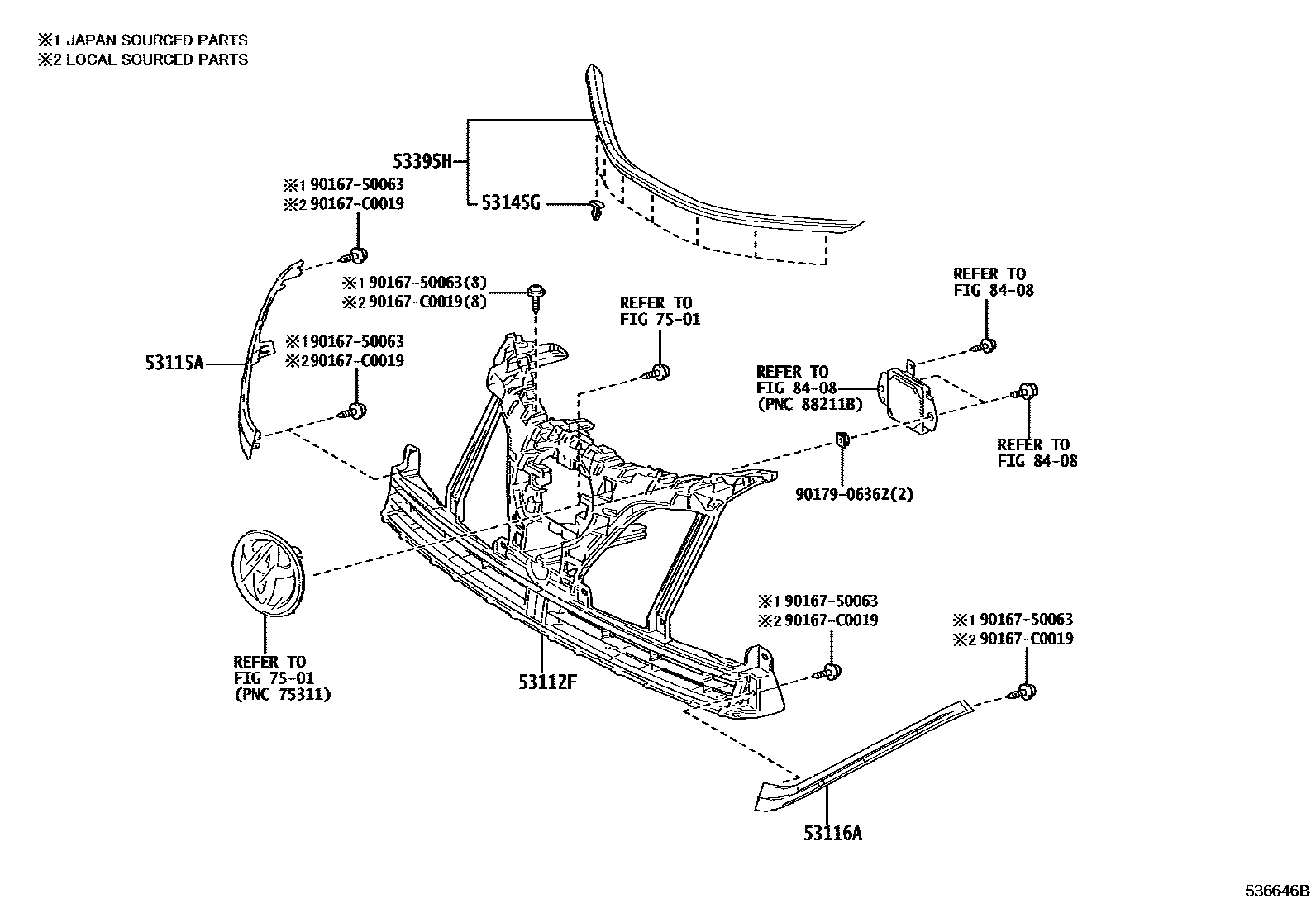

RADIATOR GRILLE

53112FGRILLE, RADIATOR, INSIDE

main53112-F4050iKPX10202005

53115ABRACKET, RADIATOR GRILLE, RH

main53115-F4020iKPX10202005

53116ABRACKET, RADIATOR GRILLE, LH

main53116-F4010iKPX10202005

53145GCLIP, RADIATOR GRILLE

main53145-02040×7iKPX10202005

53395HSEAL, HOOD TO RADIATOR GRILLE

main53395-F4031iKPX10202005

7501EMBLEM & NAME PLATE (EXTERIOR & INTERIOR)

→ Go to FIG 75-01

8408CRUISE CONTROL (AUTO DRIVE)

→ Go to FIG 84-08

9016750063

main90167-50063

90167C0019

main90167-C0019

9017906362

main90179-06362

10 parts on this diagram · 1 diagram in section
