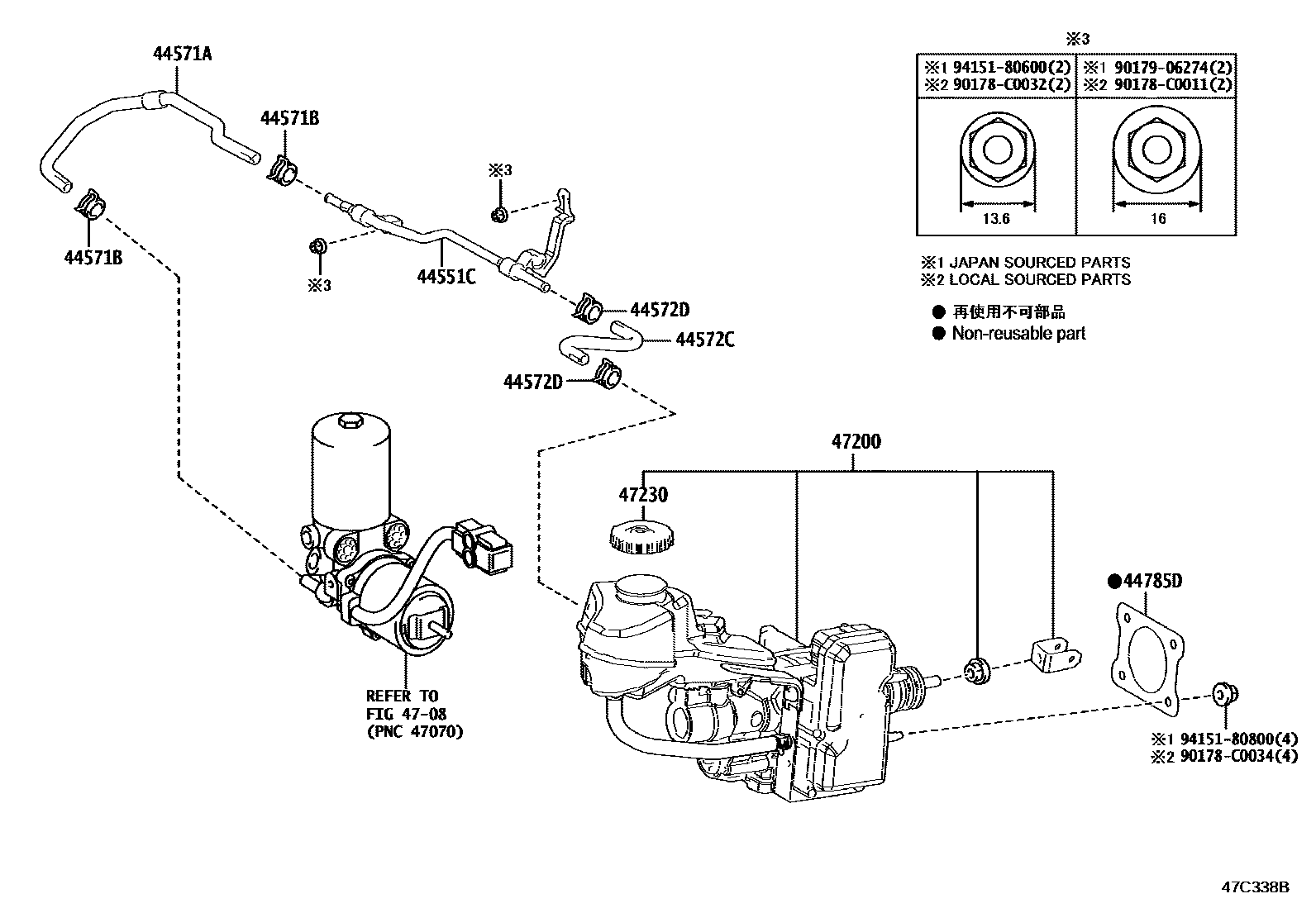

BRAKE MASTER CYLINDER

44551CTUBE, BRAKE ACTUATOR, NO.1

main44551-02090iKPX10202005

44571AHOSE, BRAKE ACTUATOR, NO.1

main44571-02120iKPX10202005

44571BCLIP, HOSE(FOR BRAKE ACTUATOR HOSE NO.1)

main90466-C0026×2iKPX10202005

(L)

main96137-41501×2iKPX10202005

(J)

44572CHOSE, BRAKE ACTUATOR, NO.2

main44572-02090iKPX10202005

44572DCLIP, HOSE(FOR BRAKE ACTUATOR HOSE NO.2)

main90466-C0026×2iKPX10202005

(L)

main96137-41501×2iKPX10202005

(J)

44785DGASKET, BRAKE MASTER CYLINDER

main44785-02050iKPX10202005

4708BRAKE TUBE & CLAMP

→ Go to FIG 47-08

47200CYLINDER ASSY, BRAKE MASTER

main47050-F4010iKPX10202005

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-33330iKPX10202005-202006

main47230-47090iKPX10202006

90178C0011

main90178-C0011

90178C0032

main90178-C0032

90178C0034

main90178-C0034

9017906274

main90179-06274

9415180600

main94151-80600

9415180800

main94151-80800

15 parts on this diagram · 1 diagram in section
