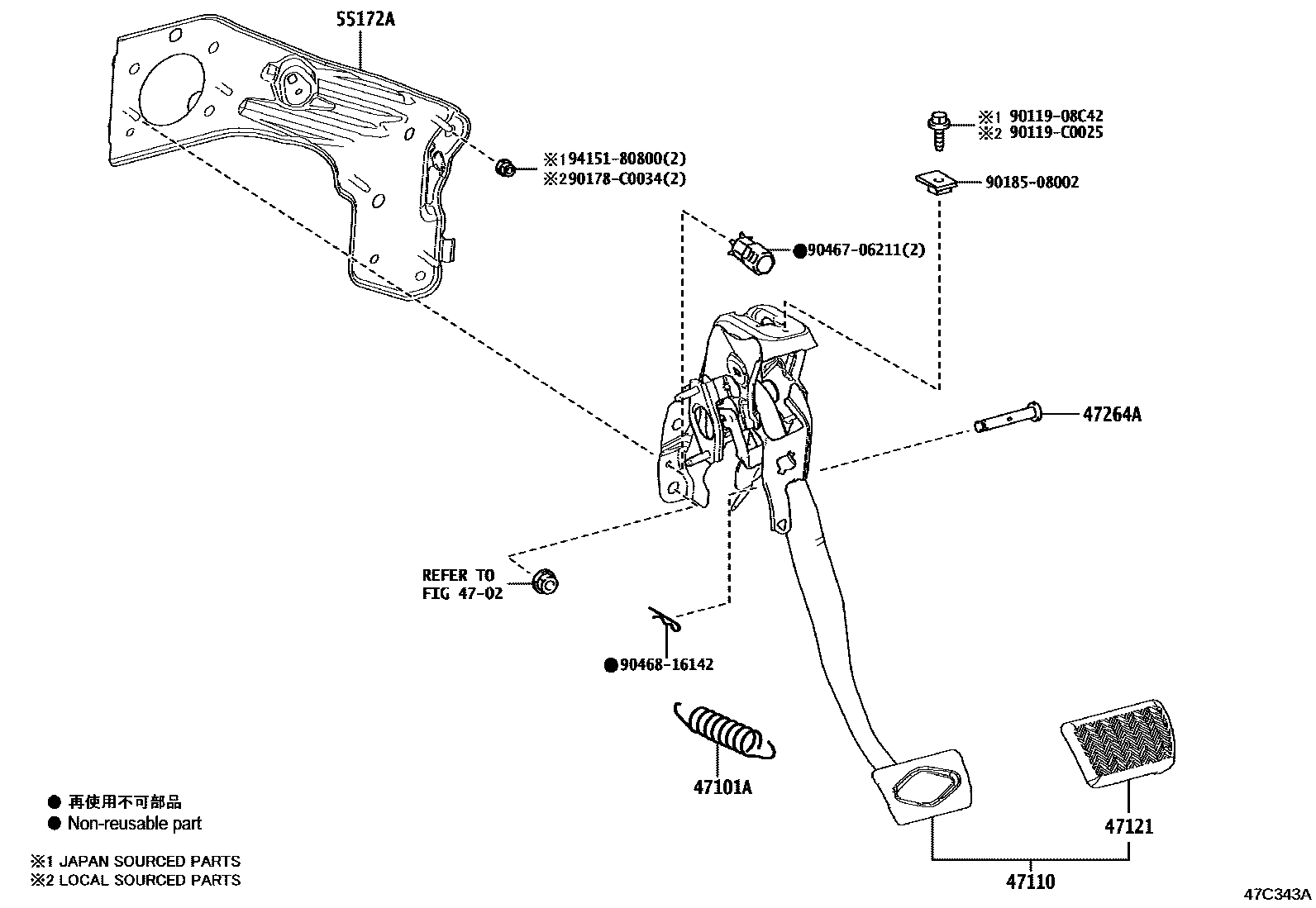

BRAKE PEDAL & BRACKET

4702

47101ASPRING(FOR BRAKE PEDAL RETURN)

main90507-16030iKPX10202005

47110SUPPORT ASSY, BRAKE PEDAL

main47110-F4170iKPX10202005

47121PAD, BRAKE PEDAL

main47121-02180iKPX10202005

47264APIN(FOR PUSH ROD)

main90249-08221iKPX10202005

55172ABASE, BRAKE PEDAL SUPPORT

main55172-F4030iKPX10202005

9011908C42

main90119-08C42

90119C0025

main90119-C0025

90178C0034

main90178-C0034

9018508002

main90185-08002

9046706211

main90467-06211

9046816142

main90468-16142

9415180800

main94151-80800

13 parts on this diagram · 1 diagram in section
