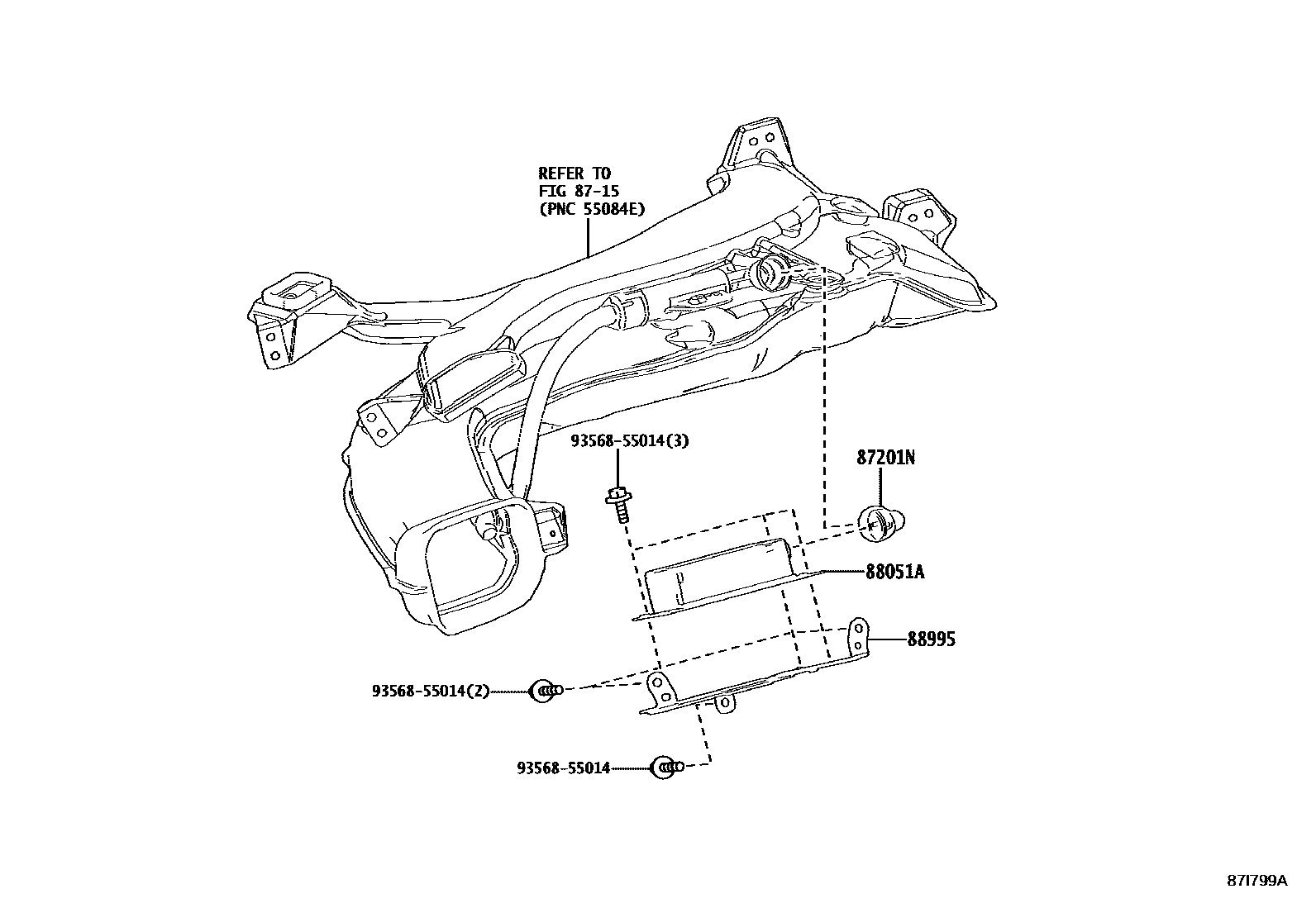

AIR PURIFIER OR ION GENERATOR

0001 1 0002 1

8715

87201NDUCT SUB-ASSY, AIR

main55848-76010iKMA10..LHD..(EUR,GEN)202008

main55848-76020iKMA10..RHD..GEN202011

ANTI-BACTERIA & MINUS ION SUPPLY-WITH

88051AGENERATOR SUB-ASSY,ION

main88051-28060iKMA10..EUR202008-202108

main88051-48010iKMA10..RHD..GEN202108

ANTI-BACTERIA & MINUS ION SUPPLY-WITH

88995BRACKET,ION GENERATOR, NO.1

main88995-76010iKMA10..LHD..(EUR,GEN)202008

main88995-76020iKMA10..RHD..GEN202011

ANTI-BACTERIA & MINUS ION SUPPLY-WITH

9356855014

main93568-55014

5 parts on this diagram · 2 diagrams in section
