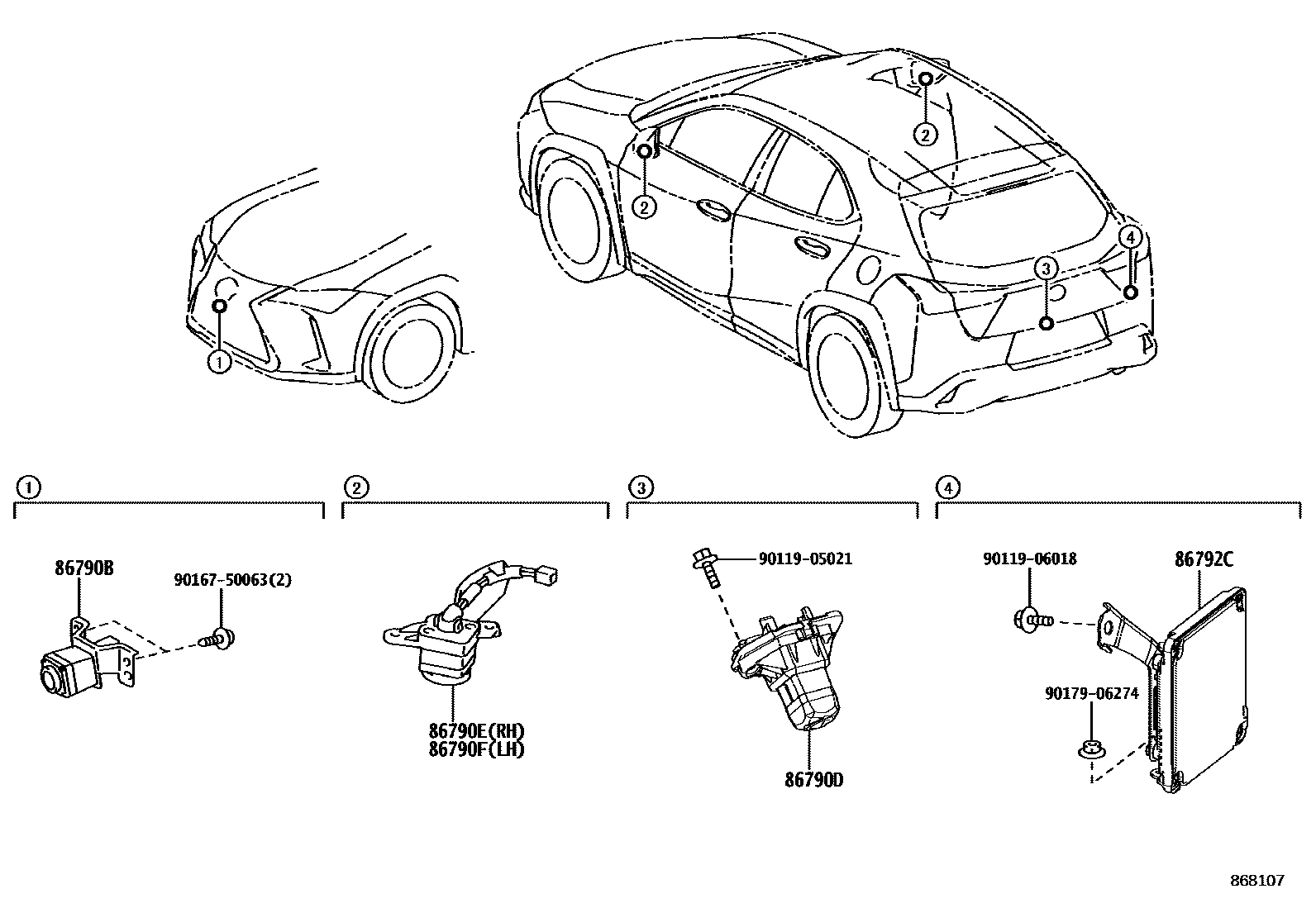

CAMERA & REAR MONITOR DISPLAY

86790BCAMERA ASSY, TELEVISION, FR

main867B0-76030i202004

BACK MONITOR-WITH(*PVM)

86790DCAMERA ASSY, TELEVISION, RR

main867B0-76040i202108

CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB)&BACK MONITOR-WITH(*PVM)

main867D0-76010i202108

CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB); HONG KONG SPEC&LUXURY PACKAGE&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE)&BACK MONITOR-WITH(GUIDE)

86790ECAMERA ASSY, TELEVISION, SIDE RH

main867B0-76080i202004

BACK MONITOR-WITH(*PVM)

main867B0-76100i202011

BACK MONITOR-WITH(*PVM)

86790FCAMERA ASSY, TELEVISION, SIDE LH

main867B0-76070i202108

LUXURY PACKAGE&AUDIO-EMV & 13SPEAKER

main867B0-76080i202004-202108

LUXURY PACKAGE&INNER REAR VIEW MIRROR-*247&BACK MONITOR-WITH(*PVM)&BLIND SPOT MONITOR-WITH

main867B0-76090i202011

BACK MONITOR-WITH(*PVM)

86792CCOMPUTER, PARKING ASSIST

main86792-76040i202004

AUDIO-EMV & 13SPEAKER&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB)&BACK MONITOR-WITH(*PVM)

main86792-76050i202011

LUXURY PACKAGE&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB)&BACK MONITOR-WITH(*PVM)

9011905021

main90119-05021

9011906018

main90119-06018

9016750063

main90167-50063

9017906274

main90179-06274

9 parts on this diagram · 1 diagram in section
