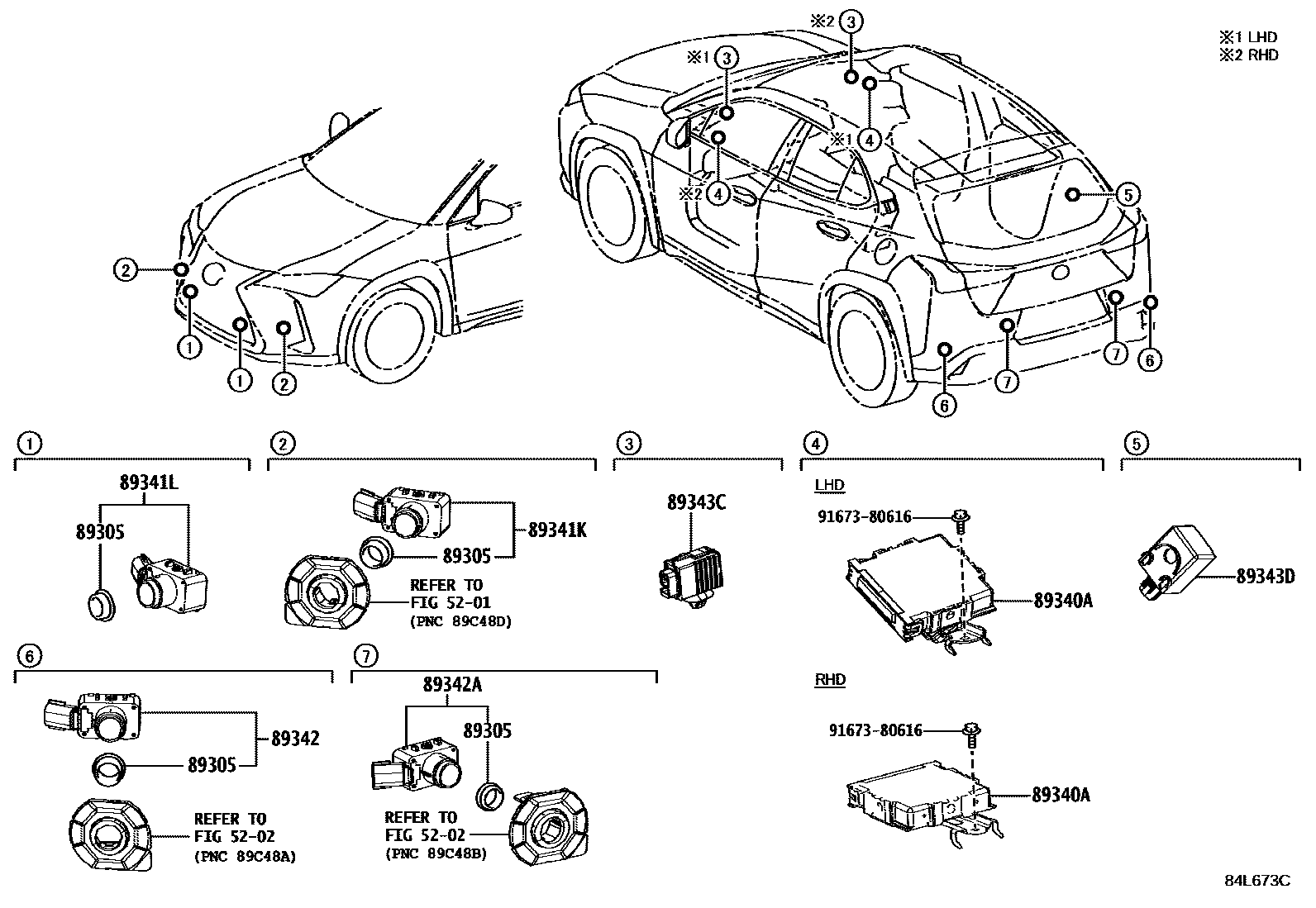

CLEARANCE & BACK SONAR
5201
5202
89305CUSHION SET, ULTRASONIC SENSOR
CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE)
89340ACOMPUTER ASSY, CLEARANCE WARNING
CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE)&BACK MONITOR-WITH(GUIDE)
CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE)&BACK MONITOR-WITH(GUIDE)
89341KSENSOR, ULTRASONIC, FRONT CORNER
CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE),SONIC QUARTZ,085
CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE),MERCURY GRAY MC.,1H9
CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE),SONIC TITANIUM,1J7
CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE),PLATINUM SILVER ME.,1J4
CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),BLACK,212
CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE),GRAPHITE BLACK GF.,223
CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),AMBER CS.,4X2
CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),TERRANE KHAKI M.M.,6X4
CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),BLAZING CARNELIAN CONTRAS,4Y1
CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE),SONIC CHROME,1L1
CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE),CELESTIAL BLUE GF.,8Y6
CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE),MADDER RED,3T2
89341LSENSOR, ULTRASONIC, FRONT CENTER
CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE),MAT BLACK
89342SENSOR, ULTRASONIC, REAR CORNER
CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE),SONIC QUARTZ,085
CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE),MERCURY GRAY MC.,1H9
CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE),SONIC TITANIUM,1J7
CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE),PLATINUM SILVER ME.,1J4
CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),BLACK,212
CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE),GRAPHITE BLACK GF.,223
CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),AMBER CS.,4X2
CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),TERRANE KHAKI M.M.,6X4
CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),BLAZING CARNELIAN CONTRAS,4Y1
CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE),SONIC CHROME,1L1
CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE),CELESTIAL BLUE GF.,8Y6
CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE),MADDER RED,3T2
89342ASENSOR, ULTRASONIC, REAR CENTER
CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE),SONIC QUARTZ,085
CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE),MERCURY GRAY MC.,1H9
CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE),SONIC TITANIUM,1J7
CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE),PLATINUM SILVER ME.,1J4
CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),BLACK,212
CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE),GRAPHITE BLACK GF.,223
CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),AMBER CS.,4X2
CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),TERRANE KHAKI M.M.,6X4
CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),BLAZING CARNELIAN CONTRAS,4Y1
CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE),SONIC CHROME,1L1
CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE),CELESTIAL BLUE GF.,8Y6
CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE),MADDER RED,3T2
89343CBUZZER, CLEARANCE WARNING, NO.1
CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB)&BLIND SPOT MONITOR-WITH
89343DBUZZER, CLEARANCE WARNING, NO.2
CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE)&BACK MONITOR-WITH(GUIDE)
9167380616
main91673-80616
11 parts on this diagram · 1 diagram in section
