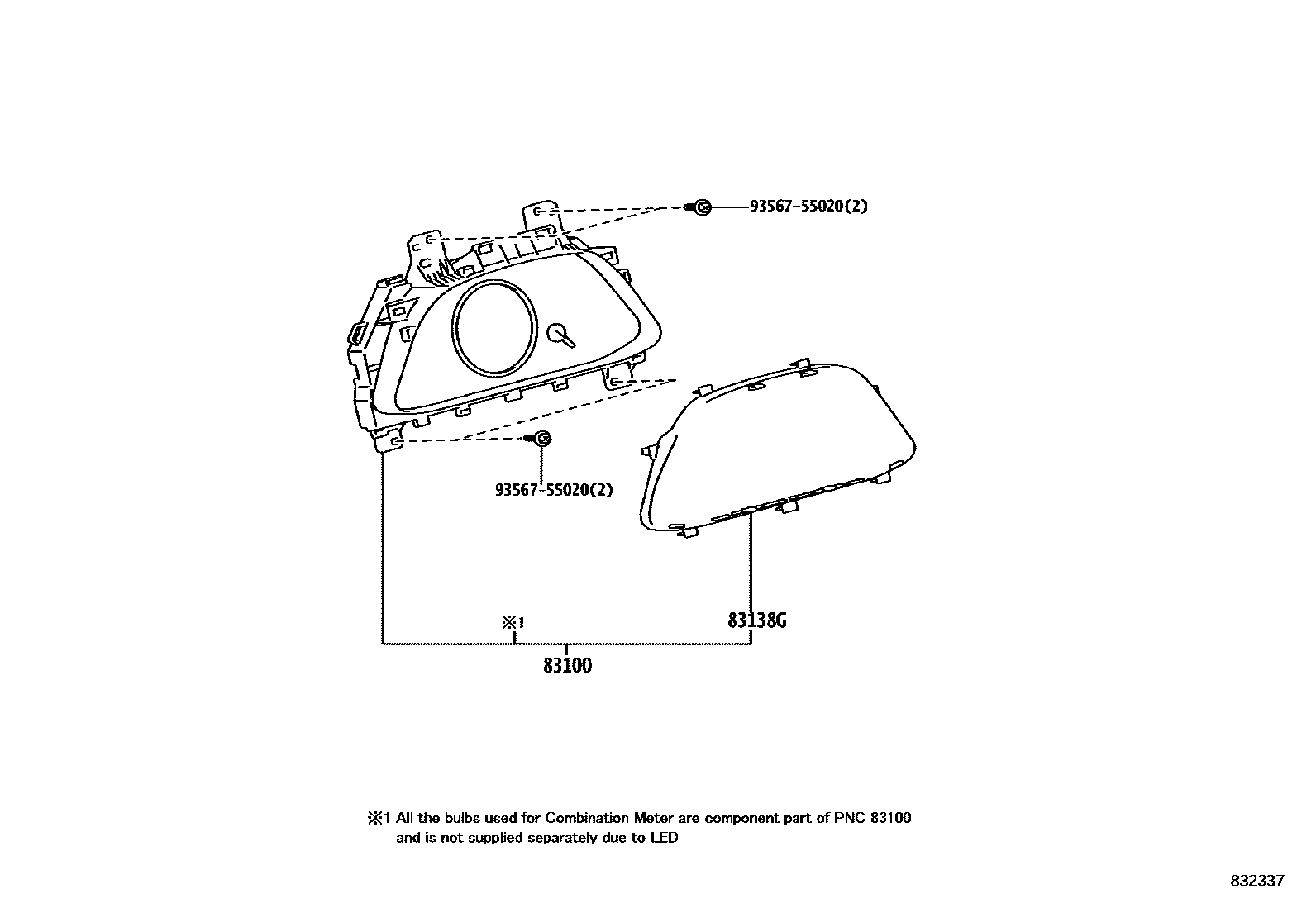

METER

0001 1COMBINATION METER 0002 1HEAD-UP DISPLAY

83100METER ASSY, COMBINATION

main83800-76G40iKMA10202004-202007

DENSO

main83800-76G42iKMA10..CHI202007-202108

DENSO

main83800-76G50iKMA10..EUR202008-202108

DENSO

main83800-76P90iKMA10..GEN202011-202108

DENSO

main83800-76S40iKMA10..EUR202108

DENSO

main83800-76S50iKMA10..CHI202108

DENSO

main83800-76S80iKMA10..ARL,GEN202108

DENSO

main83800-76P80iKMA10..RHD..EUR202011-202108

DENSO,IRELAND SPEC; DENSO,UNITED KINGDOM SPEC

main83800-76S70iKMA10..RHD..EUR202108

DENSO,IRELAND SPEC; DENSO,UNITED KINGDOM SPEC

83138GGLASS, COMBINATION METER

main83852-76B50iKMA10202004

9356755020

main93567-55020

3 parts on this diagram · 2 diagrams in section
