SIDE MOULDING
6104ROOF PANEL & BACK WINDOW GLASS
75551MOULDING, ROOF DRIP SIDE FINISH, RH
ROOF RAIL-WITH,SONIC QUARTZ,085
ROOF RAIL-WITH,MERCURY GRAY MC.,1H9
ROOF RAIL-WITH,PLATINUM SILVER ME.,1J4
ROOF RAIL-WITH,SONIC TITANIUM,1J7
ROOF RAIL-WITH,SONIC CHROME,1L1
ROOF RAIL-WITH,BLACK,212
ROOF RAIL-WITH,GRAPHITE BLACK GF.,223
ROOF RAIL-WITH,MADDER RED,3T2
ROOF RAIL-WITH,AMBER CS.,4X2
ROOF RAIL-WITH,BLAZING CARNELIAN CONTRAS,4Y1
ROOF RAIL-WITH,TERRANE KHAKI M.M.,6X4
ROOF RAIL-WITH,CELESTIAL BLUE GF.,8Y6
75552MOULDING, ROOF DRIP SIDE FINISH, LH
ROOF RAIL-WITH,SONIC QUARTZ,085
ROOF RAIL-WITH,MERCURY GRAY MC.,1H9
ROOF RAIL-WITH,PLATINUM SILVER ME.,1J4
ROOF RAIL-WITH,SONIC TITANIUM,1J7
ROOF RAIL-WITH,SONIC CHROME,1L1
ROOF RAIL-WITH,BLACK,212
ROOF RAIL-WITH,GRAPHITE BLACK GF.,223
ROOF RAIL-WITH,MADDER RED,3T2
ROOF RAIL-WITH,AMBER CS.,4X2
ROOF RAIL-WITH,BLAZING CARNELIAN CONTRAS,4Y1
ROOF RAIL-WITH,TERRANE KHAKI M.M.,6X4
ROOF RAIL-WITH,CELESTIAL BLUE GF.,8Y6
75553AMOULDING, ROOF DRIP SIDE FINISH, REAR RH
ROOF RAIL-WITH,SONIC QUARTZ,085
ROOF RAIL-WITH,MERCURY GRAY MC.,1H9
ROOF RAIL-WITH,PLATINUM SILVER ME.,1J4
ROOF RAIL-WITH,SONIC TITANIUM,1J7
ROOF RAIL-WITH,SONIC CHROME,1L1
ROOF RAIL-WITH,BLACK,212
ROOF RAIL-WITH,GRAPHITE BLACK GF.,223
ROOF RAIL-WITH,MADDER RED,3T2
ROOF RAIL-WITH,AMBER CS.,4X2
ROOF RAIL-WITH,BLAZING CARNELIAN CONTRAS,4Y1
ROOF RAIL-WITH,TERRANE KHAKI M.M.,6X4
ROOF RAIL-WITH,CELESTIAL BLUE GF.,8Y6
75554AMOULDING, ROOF DRIP SIDE FINISH, REAR LH
ROOF RAIL-WITH,SONIC QUARTZ,085
ROOF RAIL-WITH,MERCURY GRAY MC.,1H9
ROOF RAIL-WITH,PLATINUM SILVER ME.,1J4
ROOF RAIL-WITH,SONIC TITANIUM,1J7
ROOF RAIL-WITH,SONIC CHROME,1L1
ROOF RAIL-WITH,BLACK,212
ROOF RAIL-WITH,GRAPHITE BLACK GF.,223
ROOF RAIL-WITH,MADDER RED,3T2
ROOF RAIL-WITH,AMBER CS.,4X2
ROOF RAIL-WITH,BLAZING CARNELIAN CONTRAS,4Y1
ROOF RAIL-WITH,TERRANE KHAKI M.M.,6X4
ROOF RAIL-WITH,CELESTIAL BLUE GF.,8Y6
75555DMOULDING, ROOF DRIP SIDE FINISH, CENTER RH
75556CMOULDING, ROOF DRIP SIDE FINISH, CENTER LH
75561ACLIP, ROOF DRIP SIDE FINISH MOULDING
75707MOULDING SUB-ASSY, REAR DOOR WINDOW FRAME, RH
75708MOULDING SUB-ASSY, REAR DOOR WINDOW FRAME, LH
75710MOULDING ASSY, FRONT DOOR BELT, RH
75720MOULDING ASSY, FRONT DOOR BELT, LH
75730MOULDING ASSY, REAR DOOR BELT, RH
75740MOULDING ASSY, REAR DOOR BELT, LH
75753MOULDING, FRONT DOOR WINDOW FRAME, UPPER RH
75754AMOULDING, FRONT DOOR WINDOW FRAME, UPPER LH
75755AMOULDING, FRONT DOOR WINDOW FRAME, RH(CENTER PILLAR SIDE)
75756DMOULDING, FRONT DOOR WINDOW FRAME, LH(CENTER PILLAR SIDE)
75761BMOULDING, REAR DOOR WINDOW FRAME, RH(CENTER PILLAR SIDE)
75762BMOULDING, REAR DOOR WINDOW FRAME, LH(CENTER PILLAR SIDE)
9026904067
main90269-04067

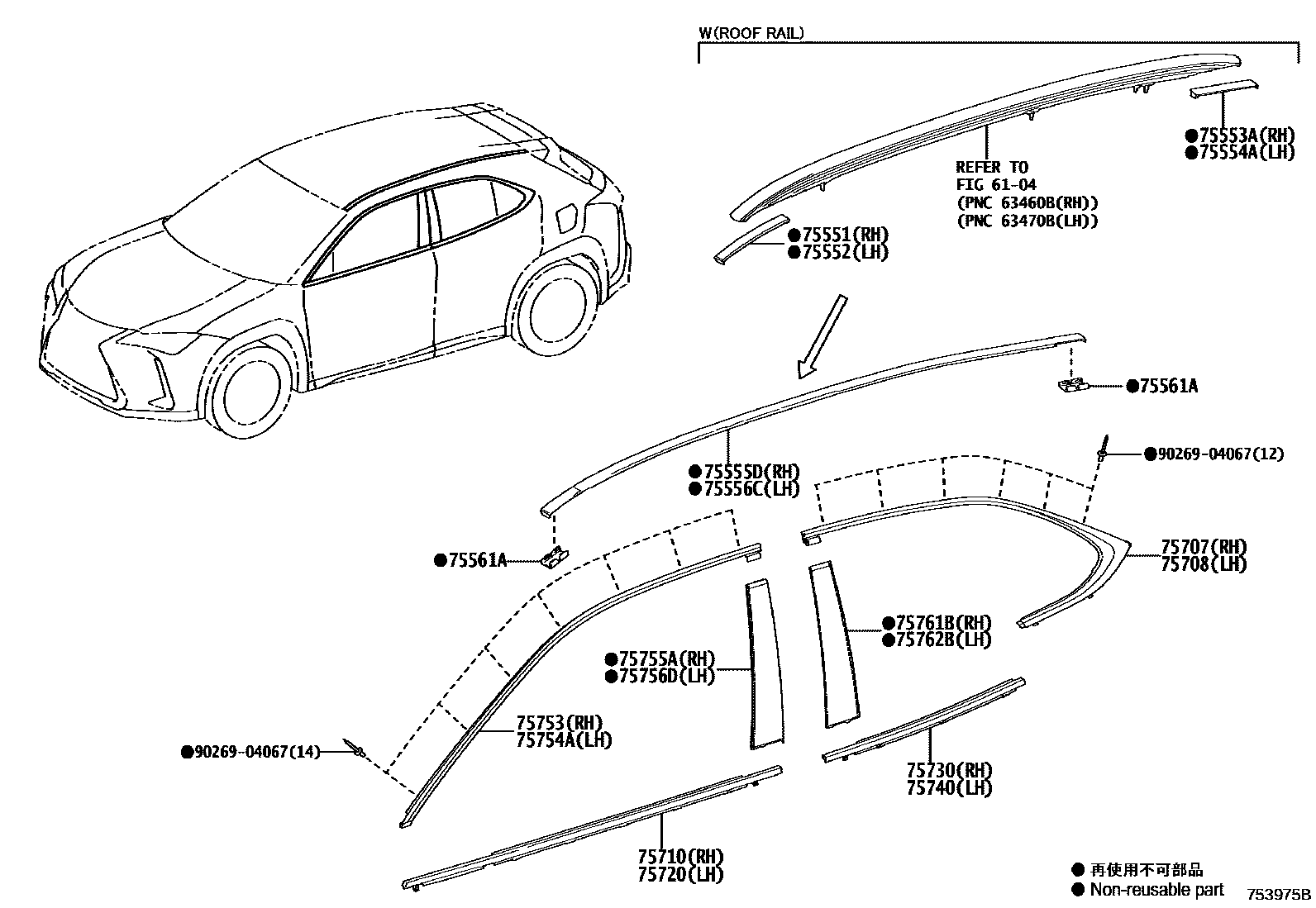

21 parts on this diagram · 2 diagrams in section
